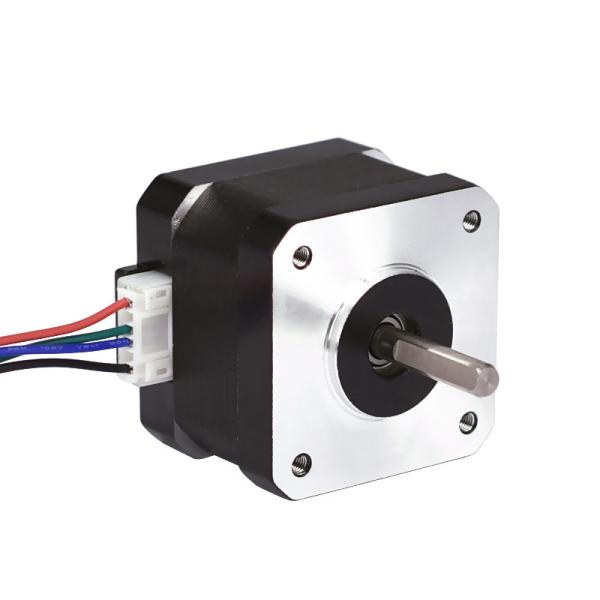

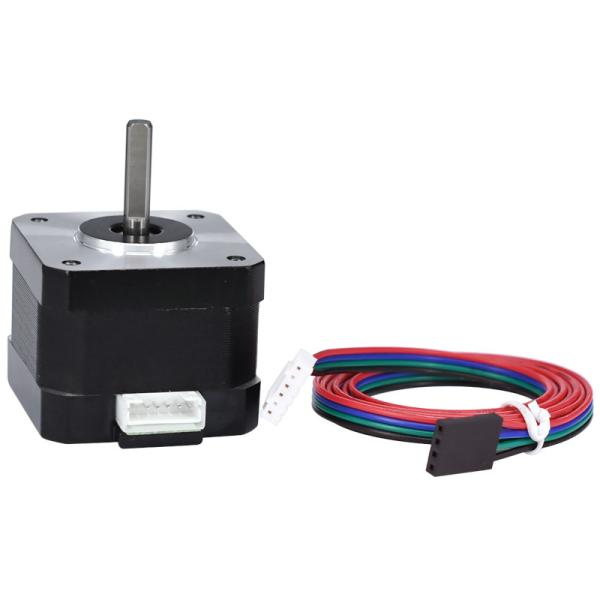

NEMA Stepper 17HS3401S 3D Printer Motors Rated Voltage DC3.4V

NEMA17HS3401S Stepper Motor Rated Voltage DC3.4V 3D Printer Motors

Descriptions of NEMA17HS3401S Stepper Motor

Number of phases: 2
Rated voltage: DC3.4V
Phase resistance (20 ° C): 3.4x (1 Soil 15%) 2 / phase
Holding torque: ≥ 290mn. M
Steering (shaft extension): a-ab-b-clockwise
Maximum no-load operation frequency: ≥ 2000 PPS
Electrical strength: ac600v / 1mA / 1s
Moment of inertia: 43.2 g. cm2
Step angle: 1.8 ° ± 0.09 °
Rated current: DC 1.0 A / phase
Phase inductance (1kHz): 5.4x (1 earth 20%) MH / phase
Positioning torque: 20 MN. M
Maximum no-load starting frequency: ≥ 1400pps
Insulation resistance: ≥ 100 MQ (DC 500V)
Insulation class: Class B
Mass: 223g

Style of NEMA17HS3401S Stepper Motor

Silver,Black

Parameters of NEMA17HS3401S Stepper Motor
