Stepping 20 Mm 3D Printer Motors Micro Slide Table Screw Rod Linear Stepper Motor
Stepping 20 Mm 3D Printer Motors Micro Slide Table Screw Rod Linear Stepper Motor
Stepping 20 Mm 3D Printer Motors Micro Slide Table Screw Rod Linear Stepper Motor
Stepping 20 Mm 3D Printer Motors Micro Slide Table Screw Rod Linear Stepper Motor
Stepping 20 Mm 3D Printer Motors Micro Slide Table Screw Rod Linear Stepper Motor
Stepping 20 Mm 3D Printer Motors Micro Slide Table Screw Rod Linear Stepper Motor
Specifications
Brand Name :
JH Stock
Place of Origin :
Shenzhen
MOQ :
30pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
3-5 working days
Packaging Details :
Support Customized
Name :
Stepping Motor 20 Mm Micro Slide Table Screw Rod Slider Linear Bearing Motor
Size :
26mm*89mm*22mm
Weight :
145g
Voltage :
5-9V/200-600MA
Motor Type :
2-phase 4-wire system
Warranty :
360 Days
Lead time :
3-5 working days
Description

Stepping Motor 20 Mm Micro Slide Table Screw Rod Slider Linear Bearing Motor

Description of Stepping Motor :

1.Motor type: 2-phase 4-wire system
2.Driving voltage: 5-9v / 200-600ma (the higher the voltage, the greater the force and the greater the heating)
3.Screw length: 65mm
4.Slide stroke: 54mm
5.Motor diameter: 20 mm
6.Screw rod diameter: 3mm
7.Screw pitch: 0.5mm (move 0.025mm in one step, subdivision drive can be used if smaller)
8.Step angle: 18 degrees
9.Phase resistance: 21 Ω
10.Overall size: 26 * 89 * 22mm
11.Blue a + Black B + Red b-yellow a-
12.Note that the stepper motor, directly connected to the power will not rotate, the need for stepper motor drive board and control board

Product Parameters:

Size

26mm*89mm*22mm

Weight

145g

Step Angle

 18 Degrees

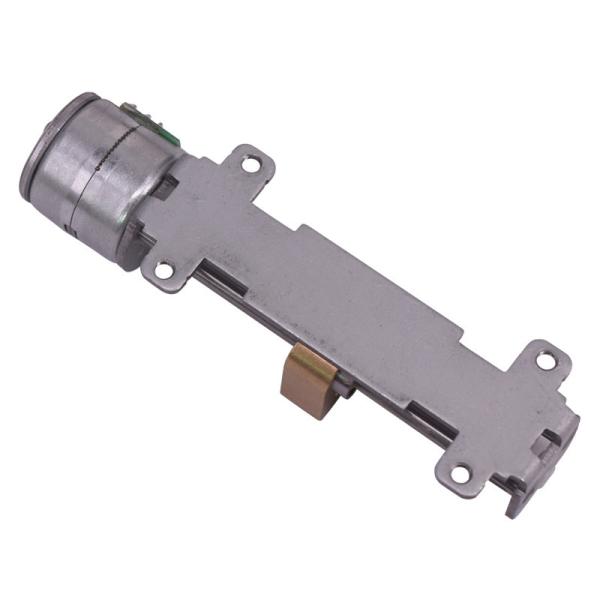

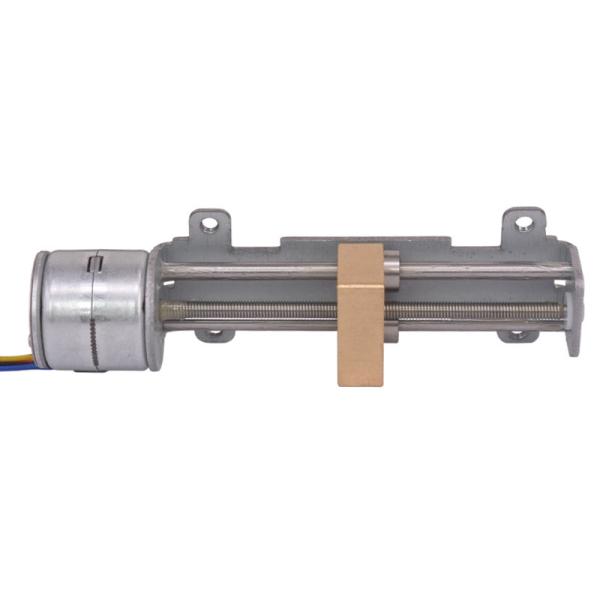

Pictures of Stepping Motor :

Stepping 20 Mm 3D Printer Motors Micro Slide Table Screw Rod Linear Stepper MotorStepping 20 Mm 3D Printer Motors Micro Slide Table Screw Rod Linear Stepper Motor
