Specifications
Brand Name :
SMX
Model Number :
MX-L5600W
Certification :
ISO,CE,RoHS
Place of Origin :
China
MOQ :
1pc
Price :
750usd/pc
Payment Terms :
T/T
Supply Ability :
10000pcs/Monthly
Delivery Time :
5-20days
Packaging Details :
Carton
Brightness :
5600 lumens
Projection Size :
30 - 300 inches
Aspect Ratio :
16:10 / 4:3
Keystone Correction :
V: ±30° /H：±15° Corner Keystone

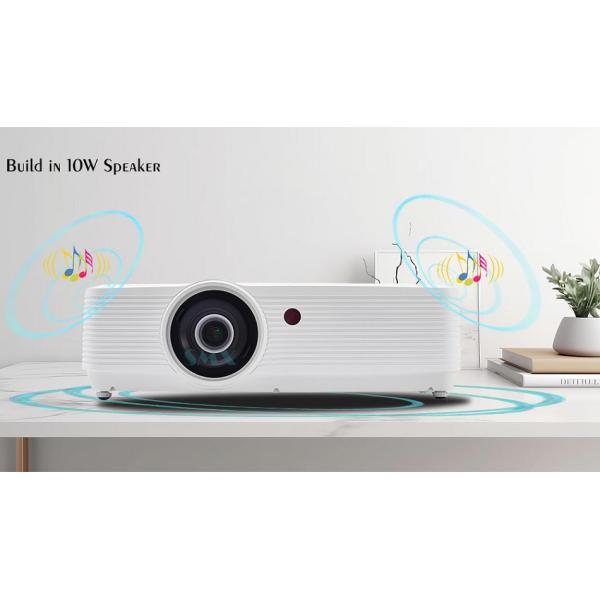

Speaker :
Built-in 10W speaker
Resolution :
1280 x 800
Description

3LCD Standard Throw Projector 5600 Lumens WXGA Resolution

Key Features

  • Brightness of 5600 Lumens
  • WXGA (1280 x 800) Native Resolution
  • 1.4 to 2.26 Throw Ratio
  • 16:10 / 4:3
  • Contrast: 10000:1
  • Len Shift: ±45% / ±10%

3x Higher Color Brightness and reliable performance - 3LCD, 3-chip technology

5,600 lumens Color Brightness for accurate, vivid color

WXGA Resolution

1280 x 800 HD widescreen resolution with a bright and colorful that features 5600 lumens of color brightness (color light output) and 5600 lumens of white brightness (white light output). The lens shift is equipped with horizontal and vertical lens shifts.

HDMI connectivity

It features an all-digital, HDMI audio, and video connection, is for HD quality with just one cable and HDBaseT combines HDMI, ethernet, and RS-232 into one cable.

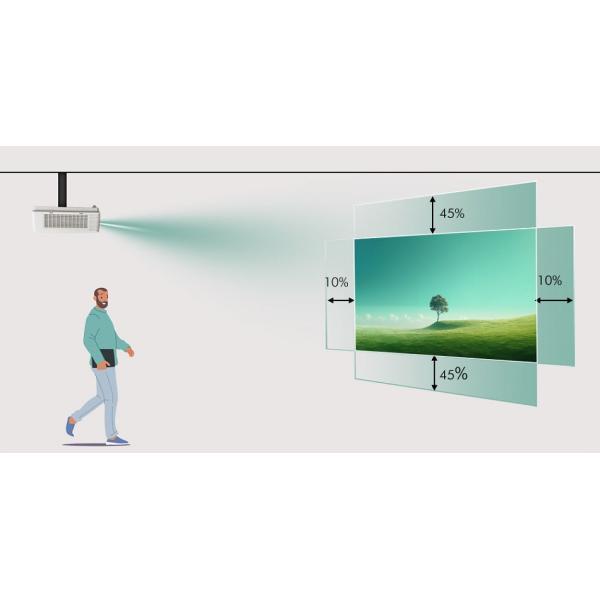

Installation flexibility - up to ±45 percent vertical and ±10 percent horizontal lens shift

Specification

Model No. MX-L5600W
Specifications
Projection System 3LCD, 3-chip technology
Brightness(Lumens ) 5600
Native Resolution WXGA (1280 x 800)
Aspect Ratio 16:10 (Standard)/4:3 (Compatible)
Lamp Type USHIO 280W
Lamp Life(H) 3000H(Normal) / 4000H(ECO)
contrast Ratio(Min) 10000:1
Keystone correction V: ±30° /H:±15°
Pincushion/Barrel /Corner
Projection Lens
Zoom/Focus Manual
Throw Ratio 70"@2.1m; 1.4~2.26 : 1
F-number F 1.65~2.25
Focal Length f= 18.20~29.38mm
Zoom Ratio 1.6xoptics
Screen size 1.194m~14.81m (40''~300")
Lens Shift V ±45%(Manual)
Lens Shift H ±10%(Manual)
Contrast Ratio (Min) 10000:1

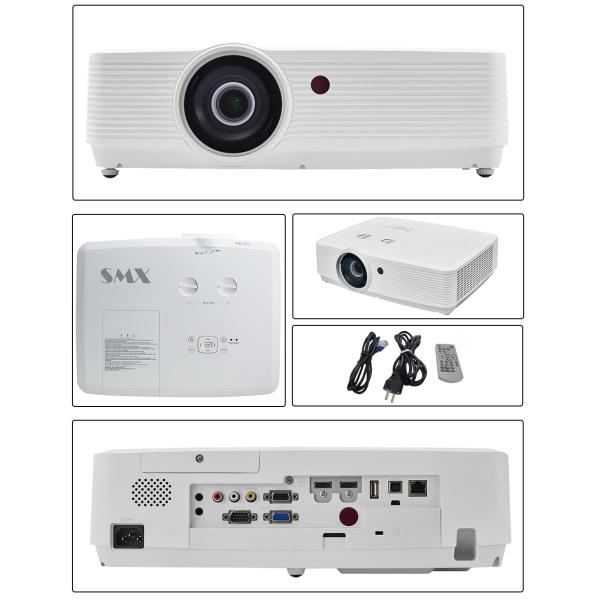

Interfaces
VGA in *2
Audio in *1
YCbCr/component *1 (share with VGA in 1)
Video *1
Audio in (L/R)--RCA" *2
S-Video *1 (share with VGA in1)
HDMI *2 (One is Compatible with MHL)
USB- A *1 (Memory viewer) /WiFi Dongle(optional)
USB-B *1 (Display)
RJ45 *1 (Display)
VGA out *1 (Share with VGA IN 2)
Audio out *1
RS232 *1
RJ45 *1 (Control)
Others
Speaker 1x10W
Power Supply Voltage 100~240V@ 50/60Hz
LAN control-RoomView (crestron) Yes
LAN control-AMX Discovery Yes
LAN control-PJ Link Yes
computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,Mac
Video Signal Input 480i, 480p, 576i, 576p, 720p,1080p and 1080iw
Dimension&Weight
Projector Dimension
(WxHxD mm)		 395x318x128
Net. Weight (KG) 4.45
Standard Accessory
Standard Accessories Power cord, VGA cable, Remote control, Manual
