SMX 7200 Lumen 4K HDR10 LCD Laser Projector MX-LK7200K
The SMX MX-LK7200K is a LCD laser projector with 7,200 lumen and 5,000,000:1 contrast ratio, which is equipped with advanced installation features, 4K native resolution and HDR10. The SMX MX-LK7200K is powered by a virtually maintenance-free, 20,000 hour laser light source with no lamps to replace and features a built-in speaker and bluetooth. Supporting 360° projection and portrait installation, it can achieve all day operation, greatly improve durability, and is suitable for a variety of applications. This projector can achieve clearer and more vivid image effects, suitable for high-end home theater and professional use. The long life and stability of MX-LK7200K projector make them very suitable for high-frequency use environments such as education, business meetings and entertainment venues.
Key Features:
Application:
4K Native Resolution
The SMX MX-LK7200K projector provides over four times the resolution of 1080p full HD projectors. The detail and clarity SMX 4K projector can project is stunning. This model can take your viewing experience to new heights.
5,000,000:1 High Contrast
In bright environments, high contrast helps offset interference from ambient light, maintaining image clarity and visibility.
Lens Shift Function
Lens shift is an important feature that provides flexibility and convenience to help users optimize projection effects in various environments, ensuring correct alignment and high-quality display of images.
20,000 Hours Long Lifespan
The laser light source is designed to have a service life of up to 20,000 hours. There is no need to replace the light source, which reduces maintenance workload, costs, and the burden on the environment. It is very suitable for environments with high frequency of use.
360° Projection
In 360° free projection, the projector can be adjusted up or down according to the installation environment, and can be side-mounted to create portrait images.
Installation flexibility
It uses a 1.6x zoom lens, and the wide lens shift range supports projection at different angles, heights and projection distances, while the 6-angle correction function allows projection to be placed in a variety of installation environments, even in the corners of the room without distortion.
Specification
Model No. | MX-LK7200K | |
Brightness | ||
Brightness | 7200Lumen | |
Overall Spec | ||
Panel | Display Panel | 3x0.64” with MLA |
Display Technology | Liquid Crystal Display | |
Resolution | 4K Enhancement | |
Light source Lifetime | Normal mode | 20000hrs |
ECO mode | 30000hrs | |
Projection Lens | Lens Vendor | RICOH Lens |
F | 1.5~2.08 | |
f | 17.2~27.7mm | |
Zoom/Focus | Manual | |
Throw Ratio | 1.2(wide)-2.0(tele) | |
Zoom Ratio | 1.6 | |
Screen size | 30-300 inch | |
Lens Shift | V:+0%~66% / H:±29% | |
CR | Contrast Ratio | 5000000:1 |
Noise | Noise(dB) TBD | 38dB(Normal) / 30dB(ECO1) / 28dB(ECO2) |
Uniformity | Uniformity-JBMA | 80% |
AR | Aspect Ratio | Compatible: 4:3/16:10 |
Terminal(I/O port) | ||
Input | HDMI 2.1(IN) | *2 |
USB-A | *2 | |
RJ45 | *1 | |
HD BaseT | *1(Optional) | |
RS232C | *1 | |
Output | Audio port | S/PDIF*1 |
Audio out (mini jack,3.5mm) | *1 | |
Control | RJ45 | *1 (Control) |
General Spec | ||
Audio | Speaker | 16W*1 |
Dust filter | W/Filter | |
Filter Lifetime | 8000h | |
Power Consumption | Power Requirements | 100~240V@ 50/60Hz |
Power Consumption (Normal) (Max) | 435 | |
Power Consumption (ECO)(Max) | 240 | |
ECO Standby Mode Power Consumption | <0.5W | |
Temp.&Humidity | Operating Temp. | 0 to 40°C |
Operating Thumidity. | 20-85% | |
Store Temp. | -10 to 50°C | |
High altitude | 0~3000m | |
Other Functions | ||

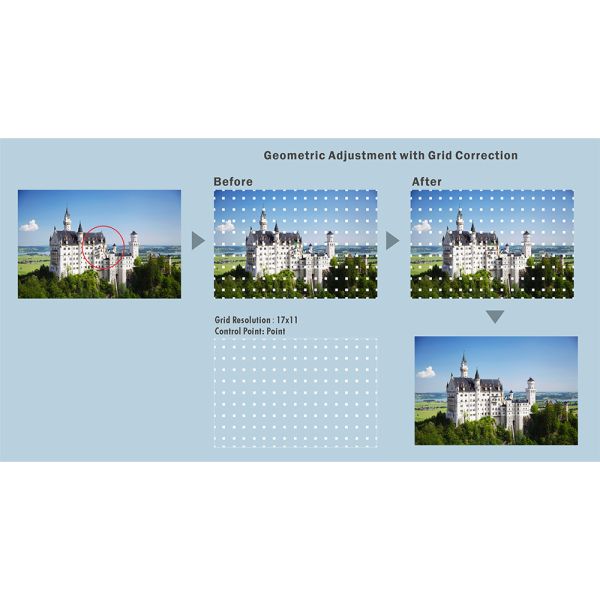

Keystone | Keystone Correction (Lens@center) | V: ±30° H:±25° 4 Corner Correction |
OSD | Languages | English, Chinese |
LAN Control | LAN Control-- PJ Link | Yes |
Scanning Frequency | H-Synch Range | 15~100KHz |
V-Synch Range | 24~85Hz | |
Display Resolution | Video Signal Input | up to 3840x2160/60Hz |
SW Setting | Voice control | Near-field RC voice |
Bluetooth | Bluetooth Version 5.0 | |
lamp mode | Normal/ECO | |
Light source brightness | 50-100% | |
High altitude | Yes | |
Auto Ceiling | Yes | |
HDR10 | Support | |
360° free viewing | Support | |
Standby mode | Energy-efficient | |
Dimension&Weight | ||
MAX Dimensions (WxDxH mm) | 405 (W)*358(D)*137(H) | |
Net. Weight (KG) | ~7.9KG | |
Accessory | ||
Manual Languages | Chinese, English | |
Standard Accessories | Power Cord, Remote control |
