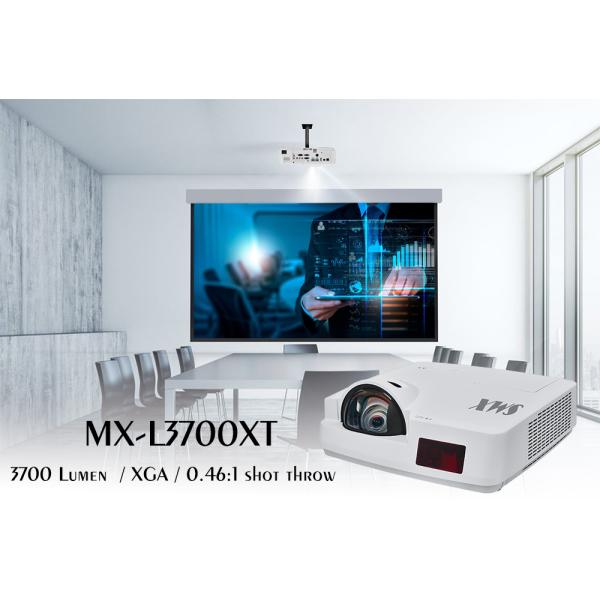

The SMX MX-L3700X is a high-quality short-throw 3LCD projector designed to deliver bright and detailed projections in various settings, particularly in classrooms, meeting rooms, and other educational or business environments.
Key Features:
Bright and Crisp Image Quality: With a brightness of 3700 lumens, the SMX MX-L3700X ensures that your presentations are displayed with clarity and vibrancy, making it suitable for well-lit environments.
Short-Throw Capability: The short-throw design allows the projector to display large images from a short distance, minimizing shadows on the screen and reducing glare, which is ideal for smaller rooms or spaces with limited throw distance.
XGA Resolution: The XGA resolution (1024x768 pixels) offers sharp and detailed image quality, making text, graphics, and multimedia content appear clear and easy to read, enhancing the overall viewing experience.
3LCD Technology: The 3LCD technology ensures accurate color reproduction and eliminates the rainbow effect often associated with single-chip DLP projectors, providing vibrant and true-to-life colors for engaging presentations.
Versatile Connectivity: The projector is equipped with a variety of connectivity options, including HDMI, VGA, and USB ports, allowing you to easily connect to different devices such as laptops, computers, Blu-ray players, and more.
User-Friendly Design: The SMX MX-L3700X features a user-friendly interface and intuitive controls, making it easy to set up and operate, even for users with limited technical expertise.
Suitable for Education and Business: This projector is well-suited for educational institutions, businesses, and meeting rooms where clear, detailed, and impactful presentations are essential for effective communication and learning.
Specification
Model | MX-L3700XT |
Display Technology | LCD panel (x 3, R/G/B) |
LCD Panels | SONY 3*0.63 |
Brightness | 3700 lumens |
Resolution | XGA (1024*768) |
Contrast | 15000:1 |
Lens | F1.8, f=6.08mm Fixed zoom, Manual focus lens |
Uniformity | 90% |
Throw ratio | 0.46 : 1 (80" @ 0.75cm) |
Aspect ratio | 4:3 support 16:9 |
Projection distance | 0.50m~1.00m |
Projection size | 50:100 inch |
Lamp power (Life) | 218w (Normal 6000 hrs. Economic 10000 hrs.) |
Keystone correction |
V. ±30° (Auto/Manual) H. ±15° (Manual), Pincushion/Barrel Correction, Corner Keystone |
Input | 1-HDMI in MHL, 1-HDMI, Audio: 3.5 Mini-Jack, Video, 2-VGA, YCbCr/Component/S-Video (Share with VGA in 1) USB-A (Support memory viewer/optional Wi-Fi dongle) 2-Audio-In (L/R), USB-B (Display), RJ45 (Display) |
Output | VGA (Share with VGA in 2), Audio Out |
Control | RS232, RJ45, USB-B (FW upgrade) |
PC Compatibility | VGA, SVGA, XGA, SXGA, WXGA, UXGA, WUXGA, Mac |
Video Compatibility | PAL, SECAM, NTSC 4.43, PAL-M, PAL-N, 480i, 480p, 576i, 576p, 720p, 1080p and 1080i |
Scanning Frequency | H: 15~100Khz , V: 48~85Hz |
Noise | Normal mode 37dB, Economic mode 33dB |
Projection | Front, Rear, Desktop, Ceiling |
Speakers | 10W*1 |
Power Consumption | Max 270 Watts |
Power Supply | 100V - 240V @ 50 - 60Hz |
Operating Temp. | 0°C - 40°C (Over 35°C Go to ECO Mode) |
Storage Temp. | -20°C - 60°C |
OSD Languages | 26 languages: English, German, French, Italian, Spanish, Polish, Swedish, Dutch, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean, Russian, Arabic, Turkish, Finnish, Norwegian, Danish, Indonesian, Hungarian, Czech, Kazak, Vietnamese, Thai, Persian |
Dimensions (W x H x D) | 34.7cm x 34.1cm x 10.9cm |
Weight | 4Kg |
Standard Accessories | Power Cord, Remote Control, VGA Cable |

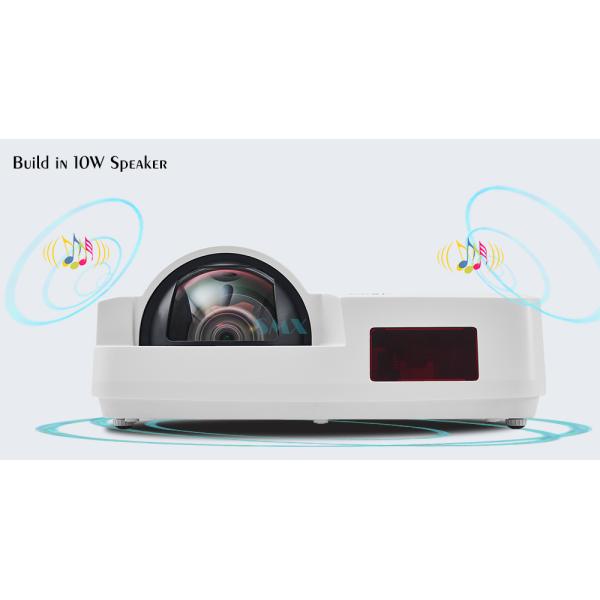

Speaker

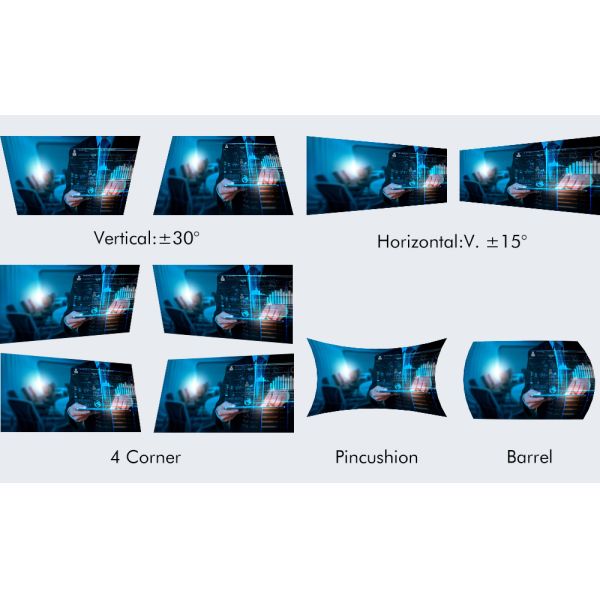

Keystone Correction

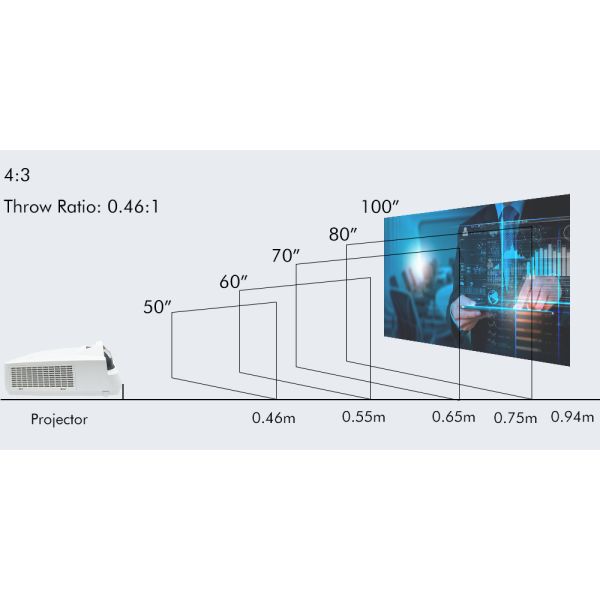

Projection Distance

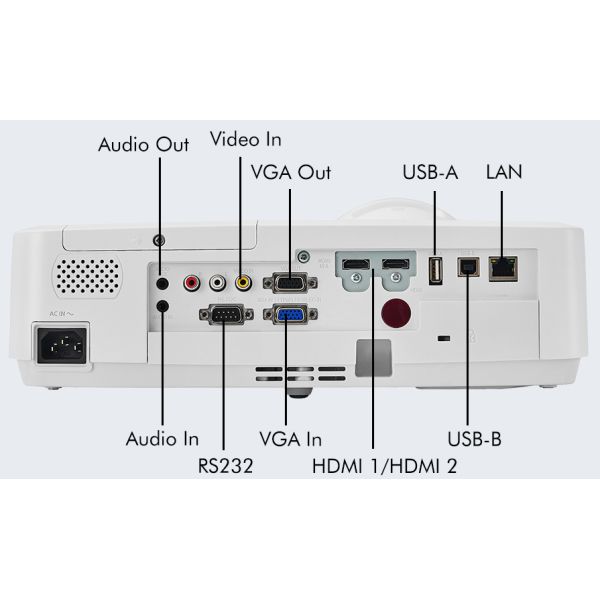

Ports
