High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
Specifications
Brand Name :
SMX
Model Number :
MX-X20000U
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1pc
Price :
21500usd/pc
Payment Terms :
T/T
Supply Ability :
10000pcs/Monthly
Delivery Time :
5-20days
Packaging Details :
Carton
Product Name :
3LCD Laser Projector
Brightness :
20,000 Lumen
Resolution :
WUXGA
Contrast :
5,000,000:1
Lens :
Motorized
Control :
Remote
Description

High Brightness 3D Mapping Laser Projector SMX MX-X20000U 20 000 Lumens WUXGA for Immersive Experiences

Experience unparalleled clarity and brightness with the SMX MX-X2000 Laser Projector. Boasting an impressive 20,000 lumens, this projector delivers stunning visuals in WUXGA resolution, perfect for immersive 3D mapping applications. With advanced laser technology, precise color reproduction, and seamless connectivity options, the MX-X2000 projector is your ultimate tool for creating captivating visual experiences.

MX-X20000U

  • 20,000 Lumen high brightness
  • WUXGA Resolution
  • 5,000,000: 1 High Contrast
  • Manual Lens easy to control
  • Lens Shift and Keystone Correction Flexible Installation
  • Multiple input / Output Control Interfaces
  • Laser light Source 20,000 Hrs lifetime

Application:


Large Venues: Perfect for auditoriums, conference halls, theaters, and other large venues where high brightness and clarity are essential.


Professional Presentations: Ideal for corporate presentations, educational institutions, museums, and other settings where impactful visuals are crucial.


Entertainment: Enhance your movie nights, gaming sessions, or events with stunning visuals that captivate your audience.

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences

Specification

Model# MX-X20000U
Brightness　　
　 Brightness(Lumen) 20,000
Overall Spec　　
Panel Display Panel 3x1.0"
Display Technology Liquid Crystal Display
Native Resolution WUXGA (1920 x 1200)
Laser Lifetime Normal mode 20000hrs
ECO mode 30000hrs
Projection Lens
(STD)		 Len Model MX-EG12ZLM
Zoom/Focus Motorized
Throw Ratio (16:10) 1.24-2.01 @100inch
F 1.8-2.24
f 27.7-44.3mm
Zoom Ratio 1.62
Screen size 60-500 inch
Lens Shift V ±65%
Lens Shift H ±25%
CR Contrast Ratio(Min) 3,000,000:1
Noise Noise(dB) Full:46db / Normal:44db / Eco1:43db / Eco2:42db
Uniformity Uniformity TYP:90%
AR Aspect Ratio Native:16:10
Compatible: 4:3/16:9/normal/16:6
Terminal(I/O port)　　
Input VGA *1
HDMI 1.4(IN) *2
USB-A *1
USB-B *1 (Display)
RJ45 *1 (Display)
DVI-D *1
HD BaseT *1
Audio in(mini jack,3.5mm) *1 (VGA/DVI-D share)
DMX512 *1
Output HDMI 1.4(OUT) *1
Audio out (mini-jack,3.5mm) *1
Control RS232C (Input) *1
RS232C (Output) *1
Wired Remote(IN) *1
Wired Remote(OUT) *1
Other Functions　　
Keystone Keystone Correction V: ±30°
H:±30°
Pincushion/Barrel Correction
6 Corner Geometry correction
Grid ImageTune correction
LAN Control LAN Control-RoomView (Crestron) Yes
LAN Control-AMX Discovery Yes
LAN Control-PJ Link Yes
Display Resolution Computer Signal Input VGA, SVGA, XGA, SXGA,WXGA,UXGA,WUXGA,4K@30Hz
Others 360° projection 360° Install
Edge Blending Yes
Adjustable brightness Yes
Dimension&Weight　　
　 Product Size (WxHxD mm) 599X240.2X493.8mm (not including lens)
Net. Weight (KG) 28.9Kg (not including lens)
Accessory　　
　 Manual Languages Chinese, English
Standard Accessories Power cord (3m, Black), Remote control

Optional Lens:

Model# MX-EG05ZLM MX-EG06ZLM MX-EG08ZLM MX-EG12ZLM MX-EG20ZL MX-EG39ZLM
Image circle Φ34.6 Φ35.5 Φ37.9 Φ37.9 Φ37.9 Φ37.9
Lens Type Zoom Lens ST3 Zoom Lens ST2 Zoom Lens ST1 Zoom Lens STD Zoom Lens L1 Zoom Lens L2
Zoom/Focus Motorized Motorized Motorized Motorized Motorized Motorized
F#(Wide-Tele) 1.85-2.20 1.84-2.25 1.80-2.24 1.80-2.24 1.84-2.58 1.85-2.42
f(mm) 12.0-14.6 14.4-19.1 19.0-27.6 27.7-44.3 43.8-86.0 86.8-163.5
Throw ratio(16:10) 0.53-0.65 0.65-0.87 0.86-1.25 1.24-2.01 1.98-3.95 3.95-7.50
Zoom Ratio 1.23 1.34 1.45 1.62 1.99 1.90
Lens shift H ±20% ±20% ±25% ±25% ±25% ±25%
V ±50% ±55% ±65% ±65% ±65% ±65%
Screen Size
(Performance guarantee range)		 60-500inch
(80-500inch)		 60-500inch
(80-500inch)		 60-500inch
(80-500inch)		 60-500inch
(80-500inch)		 60-500inch
(80-500inch)		 60-500inch
(80-500inch)

High Contrast for High-Quality Image

Experience the next level of visual excellence with our projector featuring a dynamic high contrast ratio of 3000000:1. Immerse yourself in a world of stunning imagery, vibrant colors, and immersive viewing experiences that will leave you in awe.

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences

WUXGA Resolution

WUXGA (Wide Ultra eXtended Graphics Array) resolution is a display resolution of 1920 x 1200 pixels with a 16:10 aspect ratio. It offers a higher pixel count compared to Full HD (1920 x 1080), providing sharper images and more detailed visuals.

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences

Len Shift

With lens shift capability allows you to adjust the position of the projected image without physically moving the projector itself. This feature enables you to shift the projected image up, down, left, or right within a certain range, providing flexibility in projector placement while maintaining optimal image quality.

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences

360° Projection

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences

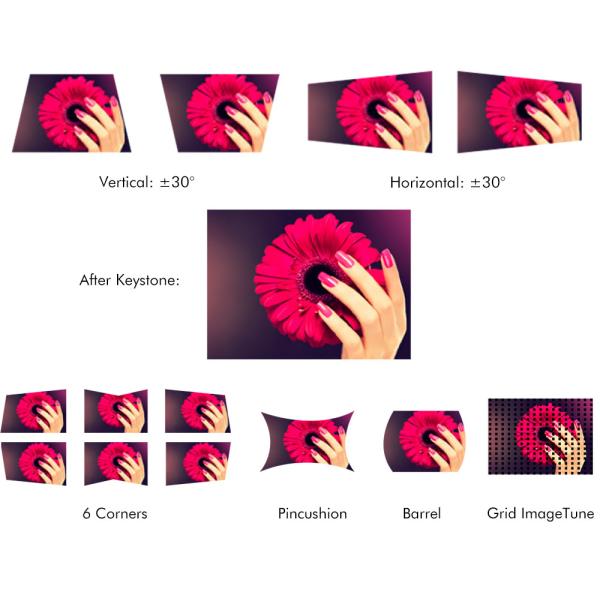

Keystone Correction

These laser projectors are equipped with a digital keystone correction function, which allows users to easily correct the image. With the remote control, you can correct it to a large screen with just a few clicks.

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences

Laser Light Source with Long Lifetime

This model with a laser light source is designed to redefine your visual experiences with unparalleled longevity and enhanced performance. With a normal mode offering an impressive 20,000 hours of usage and an ECO mode extending the lifetime to an extraordinary 30,000 hours, this projector is built to elevate your viewing and presentation capabilities while ensuring long-lasting reliability.

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences

HS BaseT Input and 3G-SDI(Opional)

HDBaseT with excellent transmission capabilities can integrate audio and video device signals from computers, laptops, physical cameras, Blu-ray, and DVD sources into a CAT5 signal cable for distortion-free transmission.

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences

LAN Control

Central system administrators can control multiple projectors through a LAN area network, allowing projector users to have a better user interface.

High Brightness 20000 Lumen 3D Mapping Laser Projector WUXGA For Immersive Experiences
