Color Management Digital Portable Colorimeter , Paint Color Difference Meter Chromameter
Color Management Digital Portable Colorimeter , Paint Color Difference Meter Chromameter
Color Management Digital Portable Colorimeter , Paint Color Difference Meter Chromameter
Color Management Digital Portable Colorimeter , Paint Color Difference Meter Chromameter
Specifications
Brand Name :
3nh
Model Number :
NH300
Certification :
CE,RoHs,ISO,etc.
Place of Origin :
Shenzhen China
MOQ :
1pc
Payment Terms :
T/T,Paypal, etc
Supply Ability :
1000pcs/month
Delivery Time :
2 work days
Packaging Details :
Standard export package
Model :
NH300
Locating :
Illumination Locating
Calibration :
Manual
SCI/SCE :
SCE
Aperture :
8mm
Color Space :
Lab XYZ
Weight :
500g
Measuring Time :
1S
Description

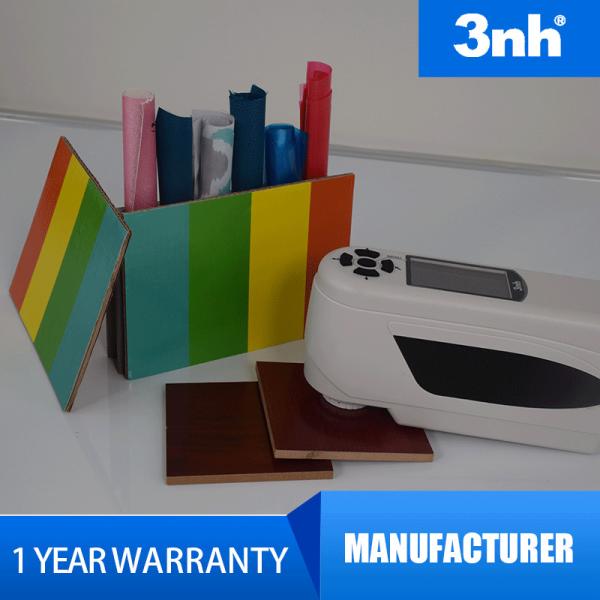

3nh(ThreeNH) color management digital portable colorimeter paint chroma meter

Brief Introduction:

With 8mm measurement aperture, NH300 portable colorimeter is the highest cost-effective model which is widely used in fabrics, paper, plastic parts, building materials. The standard configuration software CSCQ3 is able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc.

Compare with NH310, the NH300 is cheaper than NH310 Colorimeter and the accuracy is very close. But NH310 with more function when compare with NH300 Colorimeter. In a word, NH300 colorimeter is the basic mode, and NH310 is the high-end mode.Which mode is best are depend on your requirements and budget for this machine.

Specification:

Model NH300
Display Mode/Color Space CIE L*a*b *C*H* ; CIE L*a*b
Color Difference Formula △E*ab, △L*a*b, △E*C*h
Illuminating/viewing geometry 8/d (8°illumination angle/diffuse viewing)
Light Source LED blue light excitation
Detector Silicon photoelectric diode
Measuring Aperture Φ8mm
Measuring Conditions Observer: CIE 10° Standard Observer Illuminant: CIE Standard Illuminant D65
Measuring Range L: 0 to 100
Repeatability Standard deviation within ΔE*ab 0.07 (Measurement Conditions: Average of 30 measurements of standard white plate)
Minimum Interval Between Measurement Approx. 1 sec
Battery Life Approx. 3000 measurements
Lamp Life more than 1.6 million times in 5 years
Display TFT True-color; 2.8 inch@(16:9)
Interface Model B: USB RS-232: Baud rate 19200bps
Operating Temperature Range -10℃ to 40℃
Storage Temperature -20℃ to 50℃
Humidity Range less than 85% relative humidity, no condensation
Weight 500g
Dimensions 205 x 70 x 100 mm
Size of the Packing 435 x 205 x 345mm

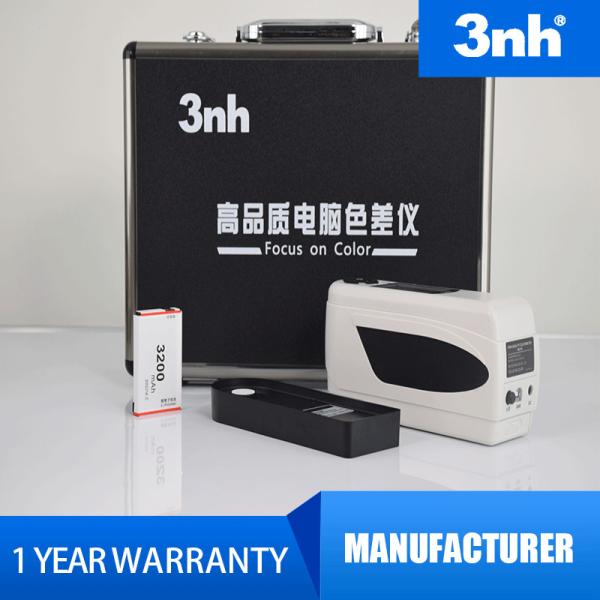

Standard Accessories AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm Measuring Aperture
Optional Accessories Mini-printer; Printer Cable


Application:

3nh colorimeter are widely used in plastic, metal, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, automotive, toy...industries.
