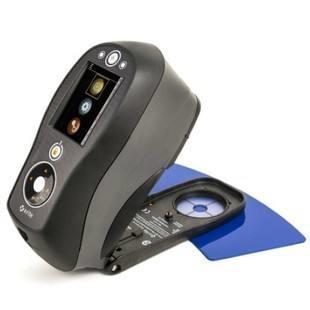

X Rite Colour Measurement Spectrophotometer Ci64 Series For Textiles / Plastics
X Rite Colour Measurement Spectrophotometer Ci64 Series For Textiles / Plastics
X Rite Colour Measurement Spectrophotometer Ci64 Series For Textiles / Plastics
X Rite Colour Measurement Spectrophotometer Ci64 Series For Textiles / Plastics
Specifications
Brand Name :
X-rite
Model Number :
Ci64
Certification :
CE
Place of Origin :
USA
MOQ :
1Unit
Price :
Please send inquiry
Payment Terms :
T/T
Supply Ability :
500 Units per Month
Delivery Time :
2-5 Days
Packaging Details :
46*25*38cm, 4.5KG, Alluminum Box
Optical Geometry :
d/8°
SCE/SCI :
SCE & SCI
UV Light Source :
Yes
Repeatibility :
ΔE*≤0.03
Inter-instrument Agreement :
ΔE*≤0.15
Measuring Aperture :
8mm & 4mm
Description

X-rite color measurement spectrophotometer Ci64 Series Portable Spectrophotometers Color Management

The Ci6x family of handheld spectrophotometers — Ci60, Ci62, Ci64 & Ci64UV is a performance-driven solution for managing color at any stage of production, and gives manufacturers a whole new level of confidence in their color data, regardless of where or when the measurements are collected.

The Ci6x Series creates opportunities to develop a consistent color monitoring program, efficiently manage process quality control, and reduce operating costs.

A Versatile Package for a Wide Range of Color Applications
The many options within the product family give operations of all sizes the ability to build in a stable measurement system that delivers repeatable performance and increased product yield. This makes the Ci6x Series a reliable solution for a wide range of industries and applications:

Commercial Coatings. The need to meet specific color codes and regulations requires repeatable color measurement. The Ci6x Series provides the consistency demanded to ensure batch-to-batch color conformity.

Plastics. Batch consistency—from raw material through finished product—often varies depending on material supplier and process conditions. The Ci6x Series can monitor the color impact of shifts in process variables, while X-Rite application software storing color data that can be shared among the supply network to ensure color accuracy.

Automotive. Whether OEM interior, aftermarket parts, or second- and third-tier supplier components, color accuracy is an absolute must. The Ci6x system allows manufacturers at every level to achieve consistent readings. The ability to simultaneously measure SCI/SCE further enhances the quality control process.

Textiles. While materials and fabrics may appear similar at first glance, those that contain optical brightening agents (OBA) may result in a much different look under varied lighting conditions. Available calibrated UV enhanced illumination controls the UVisible balance, enabling long-term, consistent measurement of optically bright samples.

Home Furnishings. Different materials—wood, paint, plastic, metal, fabric—and a wide variety of colors, make repeatable color conformance critical. The Ci6x family is able to read a wide range of materials and provide a benchmark measurement that can be used at each step of the production or assembly process.

X Rite Colour Measurement Spectrophotometer Ci64 Series For Textiles / Plastics

X Rite Colour Measurement Spectrophotometer Ci64 Series For Textiles / Plastics

Specifications

<table border="1" cellpadding="0" cellspacing="0" class="col-md-12 col-xs-12 compare-table horizontal-border" style="background-color:transparent;border-collapse:collapse;border-spacing:0px;box-sizing:border-box;width:650px;" background-color:=">


Short Term Repeatability White.04 ΔE*ab on white ceramic Measurement Geometry d/8° Inter-Instrument Agreement 0.13 ΔE*ab avg. Illumination Spot Size 20mm or 14mm and 6.5mm Lamp Life Approx. 500,000 measurements Light Source

Gas-filled tungsten lamp
+ UV LEDs*

Measurement Cycle Time ≈ 2 seconds Measurement Spot 14mm or 8mm and 4mm Measurement Time ≈ 2 seconds Photometric Range 0 to 200% Photometric Resolution 0.01% Spectral Analyzer Blue-enhanced silicon photodiodes Spectral Interval 10nm Spectral Range 400nm-700nm Spectral Reporting 10nm Color Differences [√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference Color Spaces Lab, L*a*b*, Reflectance, L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v* Illuminants A, C, D50, D65, F2, F7, F11 & F12 Observers 2° & 10° Standard Indices [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort Reflectance Aperture(s) 1 or dual Humidity 5% to 85%, non-condensing Operating Temperature Range 50° to 104°F (10° to 40°C) Storage Temperature Range '-4° to 122°F (-20° to 50°C) Dimensions (length, width, height) 21.3 cm 9.1 cm 10.9 cm Weight 1.06 kg Package Dimensions (length, width, height) 51cm, 20cm, 41cm Shipped Weight '7kg Communication Interface USB 2.0, Bluetooth* Import/Export Format CSV Instrument Display Backlit Color Graphic LCD Languages Supported English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese Software Development Kit XDS4 Battery Li-ion Battery Life

1000 measurements (non-UV)
@ 10 sec intervals

Voltage

100-240VAC 50/60Hz,
12VDC @ 2.5A

Sample/Measurement 4000 Standards 1000 Calibration White, Zero, UV* Embedded NetProfiler Support Yes NetProfiler Support Embedded PantoneLIVE Support Via software Pass / Fail Yes Sample Preview Targeting window Transform Support Embedded Warranty 12 months What's Included? Instrument with white calibration standard, black trap, green standard, manual(CD), AC adapter, USB cable, carry case, UV cal standard*
