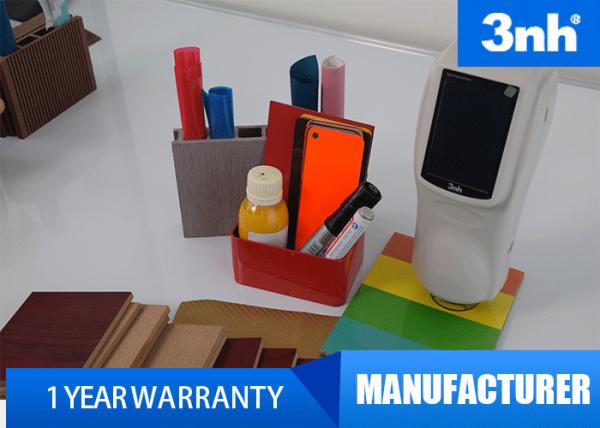

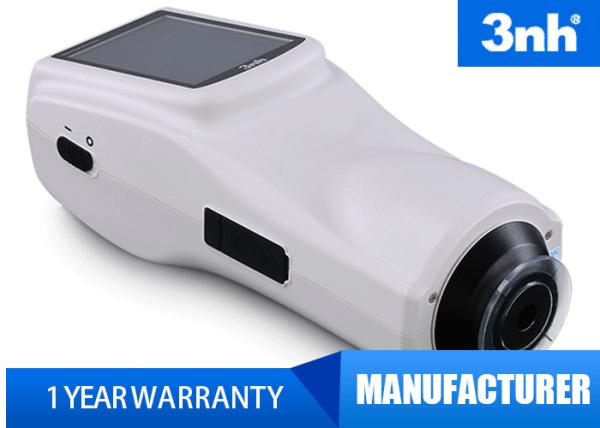

Yxy Measuring Handheld Spectrum Analyzer , Traffic Road Sign 3nh Spectrophotometer
Yxy Measuring Handheld Spectrum Analyzer , Traffic Road Sign 3nh Spectrophotometer
Yxy Measuring Handheld Spectrum Analyzer , Traffic Road Sign 3nh Spectrophotometer
Yxy Measuring Handheld Spectrum Analyzer , Traffic Road Sign 3nh Spectrophotometer
Specifications
Brand Name :
3nh
Model Number :
NS808
Certification :
CE,RoHs,ISO,etc
Place of Origin :
Shenzhen,China
MOQ :
1pc
Payment Terms :
T/T,Paypal,etc.
Supply Ability :
1000pcs/month
Delivery Time :
2 work days
Packaging Details :
Standard Export Package
Illumination/Observation System :
45° ring illuminating, 0° viewing
Wavelength Range :
400-700nm
Data Port :
USD&RS232
Reflectance Range :
0-200%
Battery :
Li-ion Battery, 5000 measurements in 8 hours.
Color Space :
CIE LAB, XYZ, Yxy, LCh, CIE LUV
Measuring Time :
1.5s
Optional Accessory :
Universal Test Components, Micro Printer, Powder Test Box
Description

NS808 45/0 Yxy measuring spectrophotometer for traffic road sign with SQCT software

Brief Introduction:

NS808 Spectrophotometer is a dedicated instrument for the color measurement of traffic signs. It was researched and developped solely by 3nh independently who owns the complete independent intellectual property rights. Its leading position in the industry is earned by its powerful functions, high accuracy and reliability. NS808 can be easily used to measure the brightness factor of reflecting film and chromaticity coordinate of all kinds of traffic signs. Its system has GB2893 safety color and all the standard color module of GB/T18833 road traffic reflecting film built in, so, users can choose from them freely according to application. And users can also conveniently customize polygon tolerance they want.

At the same time, NS808 is also widely used in plastics, electronics, paintings, inks, testiles, garments, dyeing, printing, paper, automobiles, medical, cosmetics and food, etc, and other industries. It is also used in some scientific research institutes and laboratories.

NS808 can make precise measurements in multiple color spaces to multiple color indexes like reflectance spectrum. With the help of this instrument, the study of color matching and color management can be precisely implemented, and also product quality control can be easily done. It's also configured with advanced PC software, connected with PC, more extension functions will come in hand.

Specification:

Product Model NS808
Illuminating/Viewing Method 45°/0 (45° ring illuminating, 0° viewing)
Conform to standard CIE No. 15, GB/T3978, GB2893, GB/T18833
Integrating Sphere Size Φ58mm
Measuring Aperture Φ8mm
Observer 2°/10°
Repetitive Error Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: standard deviation ΔE*ab≤0.04 (Measurement Conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration performed.)
Inter-Instrument Error ΔE*ab≤0.2 (Average value of measuring the 12 tint plates of BCRA series II)
Wavelength Range 400∽700nm
Wavelength Pitch 10nm
Reflectance Range 0∽200%
Light Source Type D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Light Source Device Combined LED Light
Light Source Life 5 years, more than 1.6 million measurements
Sensor Silicon Photoelectric Diode Array
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00
Display Data Spectral Graph/Data, Sample Chromatic Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Other Chromaticity Data WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),
TI(ASTM E313, CIE/ISO),
Metamerism Index (Mt),
Color Strength, Color Stain, Color Fastness
Measuring Time 1.5s
Data Storage 1000 standards, 10000 samples
Data Port USD&RS232
Dimension 90*77*230mm
Weight 600g
Battery Li-ion Battery, 5000 measurements in 8 hours.
Operation Temperature 0∽40℃(32∽104℉)
Storage Temperature -20∽50℃(-4∽122℉)
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory Universal Test Components, Micro Printer, Powder Test Box
