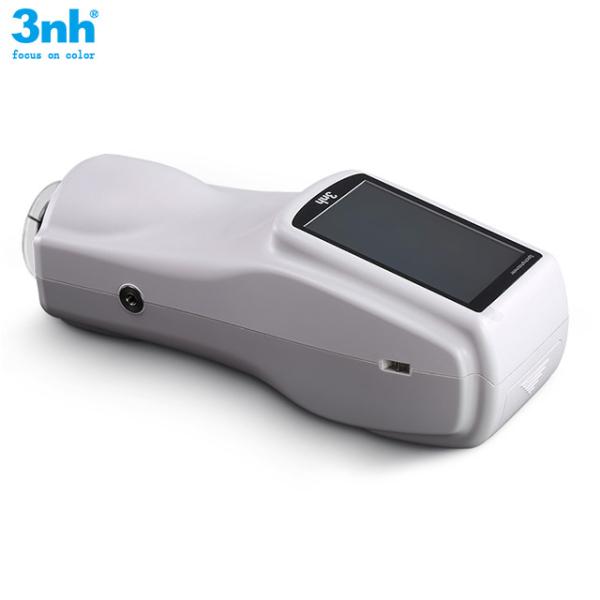

NS 810 3nh Spectrophotometer D/8 Optical Plastic Industry Color Difference Check
NS 810 3nh Spectrophotometer D/8 Optical Plastic Industry Color Difference Check
NS 810 3nh Spectrophotometer D/8 Optical Plastic Industry Color Difference Check
NS 810 3nh Spectrophotometer D/8 Optical Plastic Industry Color Difference Check
Specifications
Brand Name :
3nh
Model Number :
NS810
Certification :
CE,RoHs,ISO,etc
Place of Origin :
Shenzhen,China
MOQ :
1pc
Payment Terms :
T/T,Paypal,etc.
Supply Ability :
1000pcs/month
Delivery Time :
2 work days
Packaging Details :
Standard Export Package
Illumination/Observation System :
D/8 structure
Wavelength Range :
400-700nm
Wavelength Interval :
10nm
Color Difference Formula :
ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 v
Chromaticity Data :
WI,YI,Mt,color strength,color stain,color fastness,opacity
Observer :
2-degree/10-degree
Repeatability :
Within delta E*ab 0.04
Illuminant :
D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
Description

3nh High Quality Spectrophotometer NS 810 Focus on color for Plastic Industry Color Difference Check

Brief Introduction:

Based on large integrating sphere theory, NS810 portable spectrophotometer adopts d/8 optical structure with 8mm aperture measurement. It is much more precise and stable than any other colorimeter model.


Our 3nh brand spectrophotometer colorimeter can specify using a universla color language and ensure suppliers are quality controlled and color managed. Plus, our SQC8 software for free make controlling color fast and easy.

Applications:

NS810 spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely.

Specification:

Model NS810
Illumination/observation system d/8 (diffused illumination, 8-degree viewing angle) Conforms to CIE No.15, GB/T 3978.
Integrating sphere Size Φ58mm
Light Source Combined LED sources
Sensor Silicon photodiode array
Wavelength range 400~700nm
Wavelength pitch 10nm
Reflectance range 0~200%
Measuring Aperture Φ8mm
Color Space CIE LAB, XYZ, Yxy, LCh, CIE LUV,LAB&WI&YI
Color difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*cmc(l:c),CIE2000ΔE*00,ΔE(h)
Other Chromaticity Data

WI(ASTM E313,CIE/ISO,AATCC, Hunter),

YI(ASTM D1925,ASTM 313),

Metamerism Index (Mt), Color Strength

Color Stain, Color Fastness
Observer 2°/10°
Illuminant D65,D50,A,C,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12
Display Data Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation, color index setting(ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement Time 1.5s
Repeatability Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)
Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Inter Instrument Agreement Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)
Dimension L*W*H=90*77*230mm
Weight 600g
Battery Li-ion battery. 2800 times within 8 hours.
Lamp Life 5 years, more than 1.6 million measurements
Display Screen TFT 3.5inch, Capacitive Touch Screen
Interface USB/RS-232
Data Memory 1000 Standards, 15000 Samples
Operating Temperature 0~40℃(32~104°F)
Storage temperature -20~50℃(-4~122°F)
Standard Accessory Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap
Optional Accessory Universal Test Components, Micro Printer, Powder Test Box
Notes The specifications are subject to change without notice.

Related Knowledge about Spectrophotometer:

Color Space

CIE LAB
-L(Lightness)-0 is black,100 is white
-a(Red-Green)-positive values are red; negative values are green and 0 is neutral
-b(Blue-Yellow)-positive values are yellow;negative values are blue abd 0 is neutral

CIE LCH
L: Lightness,value is the same in each scale C:Chroma H:Hue Angle

dE Total Color difference
Delta-E is a measurement used to indicate how much a color deviates from an accepted standards.The higher the dE, the more inaccurate the color.
