Colour Pigment Paste 3nh Spectrophotometer YS3060 With 8mm / 4mm Two Apertures
Colour Pigment Paste 3nh Spectrophotometer YS3060 With 8mm / 4mm Two Apertures
Colour Pigment Paste 3nh Spectrophotometer YS3060 With 8mm / 4mm Two Apertures
Colour Pigment Paste 3nh Spectrophotometer YS3060 With 8mm / 4mm Two Apertures
Specifications
Brand Name :
3nh
Model Number :
YS3060
Certification :
CE, TUV, FCC, RoHS, ISO9001
Place of Origin :
Shenzhen China
MOQ :
1Unit
Price :
Please send inquiry
Payment Terms :
T/T
Supply Ability :
500 Units per Month
Delivery Time :
2-5 Days
Packaging Details :
46*25*38cm, 4.5KG, Alluminum Box
Optical Geometry :
d/8°
SCE/SCI :
SCE & SCI
UV Light Source :
Yes
Repeatibility :
ΔE*≤0.03
Inter-instrument Agreement :
ΔE*≤0.15
Measuring Aperture :
8mm & 4mm
Description

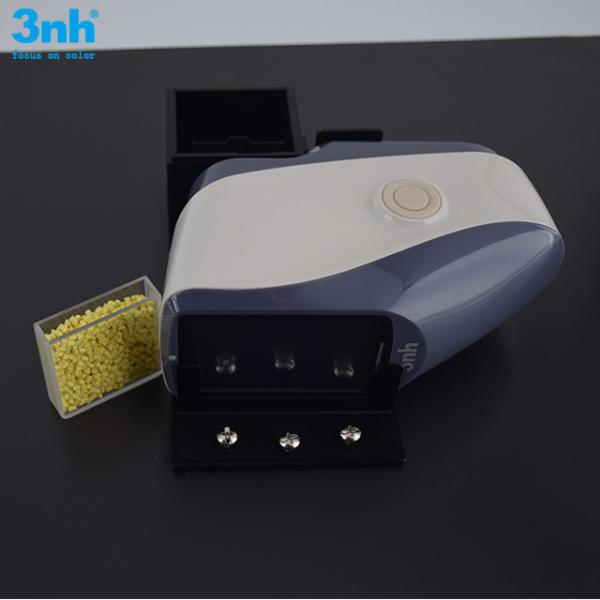

Colour pigment paste spectrophotometer 3nh test equipment YS3060 with 8mm and 4mm two apertures

Brief Introduction

Comply with CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724/1,ASTM E1164,DIN5033 Teil7, YS3060 grating spectrophotometer features UV, SCI/SCE, USB / bluetooth, 8mm / 4mm switch aperture, etc. It has high accuracy 0.03 based on white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed..

Technical Specification

Parameters Spectrophotometer YS3060
Optical Geometry d/8°
Repeatibility ΔE*≤0.03
Inter-instrument Agreement ΔE*≤0.15
Measuring Aperture 8mm & 4mm
SCE/SCI SCE&SCI
UV Light Source Yes
Integrating Sphere Size 48mm
Wavelength Range 400nm - 700nm
Wavelength Pitch 10nm
Halfband Width 10nm
Reflectance Range 0 - 200%
Illuminant D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Observer Angle 2° & 10°
Color Space CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Displayed Data Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Other Colorimetric Index

WI (ASTM E313, CIE/ISO, AATCC, Hunter),

YI (ASTM D1925, ASTM 313),

TI (ASTM E313, CIE/ISO),

MI (Metamerism Index),

Staining Fastness, Color Fastness, Color Strength, Opacity
Light Source Device Combined LED Lamp & UV Lamp
Light Source Lifespan 5 years, More than 1.6 million measurements
Sensor 256 Image Element Double Array CMOS Image Sensor
Spectral Device Concave Grating
Aiming Method Camera Locating
Measurement Mode Single Measurement & Average Measurement
Storage Capacity Standard: 1000 Pcs
Sample: 28000 Pcs (One piece can include SCE&SCI)
Data Port USB & Bluetooth
Screen 3.5" LCD Touch Screen
Battery Built-in Li-ion Battery, 5000 Measurements within 8 hours
Size 184*77*105mm
Weight 600g
Language English & Chinese & Spanish
Working Environment Temperature: 0~40℃, Humidity: 0~85% (No Condensation)
Storage Environment Temperature: -20~50℃, Humidity: 0~85% (No Condensation)
Standard Accessory Power Adapter, USB Cable, Built-in Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cap
Optional Accessory Micro Printer, Powder Test Box, Universal Test Component

Application Introduction

YS3060 spectrophotometer is a model of color measuring instrument with powerful functions, which makes it can be applied to all sorts of products in all kinds of industries. YS3060 is perfectly suitable to measure the colors of plastics, rubber, metals, wood, cloth and textiles, leather, porcelain and ceramics, stones, tiles, fruit, package material, etc. With the configuration of the universal test component, YS3060 can also be used to measure the color liquids like vinegar or wine, powders like flour and paste like ketchup.

Frequently Asked Questions

1. Which models are the equivalent models to YS3060?
Answer: KONICA MINOLTA CM-2600d, CM-700d and X-rite Ci64, Ci64UV are the equivalent models to 3nh YS3060.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
