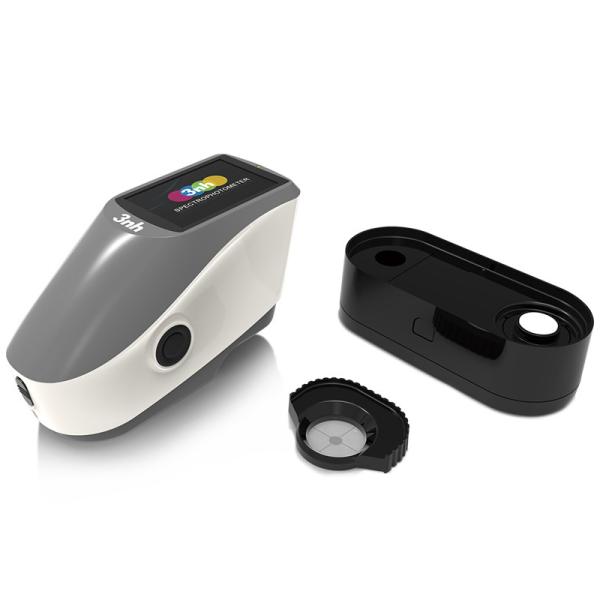

400-700 EXACT Densitometer 3nh Spectrophotometer 2mm Aperture YD5010 Concave Grating
400-700 EXACT Densitometer 3nh Spectrophotometer 2mm Aperture YD5010 Concave Grating
400-700 EXACT Densitometer 3nh Spectrophotometer 2mm Aperture YD5010 Concave Grating
400-700 EXACT Densitometer 3nh Spectrophotometer 2mm Aperture YD5010 Concave Grating
400-700 EXACT Densitometer 3nh Spectrophotometer 2mm Aperture YD5010 Concave Grating
400-700 EXACT Densitometer 3nh Spectrophotometer 2mm Aperture YD5010 Concave Grating
Specifications
Brand Name :
3nh
Model Number :
YD5010
Certification :
CE&RoHS&TUV&FCC&ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
USD3000/PC
Payment Terms :
T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
2 work days
Packaging Details :
Standard Export Package
Measurement Geometry :
45/0
Spectral separation device :
Concave Grating
Detector :
256 Image Element Double Array CMOS Image Sensor
Wavelength Range :
400-700nm
Density Standards :
ISO Status A, E, I, T
Color Spaces :
CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Size(L*W*H) :
184*77*105mm
Description

400-700 EXACT Densitometer 2mm Aperture YD5010 Spectrophometer Densitometer

Brief Introduce:

3nh launched new model YD5010 grating spectrophotometer densitometer with 45/0(45 ring-shaped illumination, 0 degree viewing angle), comply to the standard ISO5-4, CIE N.15. It's suitable for using in in ink printing, film processing, textile printing and deying, plastic, electronics, and other industry for color measurement and quality control, especially suitable for the measurement and quality control of opatical and dot enlargement in ink printing, and it is also can customize single aperture based on your requirement.

Product Features

1. Perfect combination of the beautiful appearance and the ergonomic structure design;

2. Combined LED light sources with long life and low power consumption, including UV light;

3. Switchable apertures: Φ2/4/8/20mm, adapt to more samples;

4. Accurately measure reflectance spectrum, CMYK density and Lab value of the sample;

5. High-configuration electronic hardware: 3.5-inch TFT true-color screen, capacitive touch screen, concave grating, 256-pixel dual-array CMOS image sensor, etc.;

6. Two standard observer angles: 2/10, multiple light source modes and color systems;

7. USB mode is widely useful;

8. Large-capacity storage space, over 10,000 test data;

9. Especially suitable for process control and quality control of printing plants;

10. PC software has powerful function expansion.

Specification:

Model
YD5010
Name
Grating Spectrophotometer Densitometer
Measurement
Geometry
45/0(45 ring-shaped illumination, 0 degree viewing angle); ISO 5-4,CIE No.15
Observer Angle
2°/10°
Measuring Aperture
Customized one aperture:Φ2mm,Φ4mm,Φ8mm optional
Detector
256 Image Element Double Array CMOS Image Sensor
Light Source
Combined LED Light,UV Light
Spectral Separation Device
Concave Grating
Measurement Conditions
Compliance with ISO 13655 measurement conditions;
M0 (CIE Light Soure A)
M1 (CIE Light Soure D50)
M2 (Excluding UV light source)
M3 (M2+Polarized light filter)
Density Index
Density value, density difference, dot area, dot enlargement, overprint, printing characteristics, printing contrast, tone error
and gray level
Wavelength Range
400-700nm
Semiband Width
10nm
Reflectance Range
0-200%
Wavelength Interval
10nm
Illuminant
A,C,D50,D55,D65,D75,F2,F7,
F11,F12
Inter-instrument Error
Within ΔE*ab 0.2 (Average for 12 BCRA Series II color tiles) Except M3
Color Spaces
CIE LAB,XYZ,Yxy,LCh
Color Difference Formula
ΔE*ab,ΔE*94,ΔE*00
Measurement Time
About 1.5s
Power source
Li-ion battery. 5000 measurements within 8 hours
Size(L*W*H)
184*77*105mm
Weight
600(g)
Interface
USB
Data memory
10000 pcs
Standard Accessory
Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website),White and Black Calibration Board,
Protective Cover,Polarization filter box,Locating Plate
Optional Accessory
Micro Printer

400-700 EXACT Densitometer 3nh Spectrophotometer 2mm Aperture YD5010 Concave Grating

Applications

3NH-YD5010 portable spectrodensitometer, widely used in ink printing, film processing, textile printing and dyeing, plastic electronics and other industries color measurement and quality control, especially suitable for measurement and quality control of optical density, dot gain and other indicators in ink printing.


Delivery Time
1-2 working days after payment received.
Warranty
We warrant to you that any Product purchased from us will, on delivery and for the following 1 - 2 years (depending on the Product purchased), conform in all material respects with its description, be of satisfactory quality, and be reasonably fit for all the purposes for which products of that kind are commonly supplied.

Functionality YD5010 YD5050
Density Index CMYK,Spot Colors CMYK and Spot CMYK and Spot
Density State T,E,A,I T,E,A,I
Density Trend √ √
Densitometry √ √
CMY Balance √ √
Dot Area √ √
Dot Gain √ √
Overprint √ √
Printing Characteristics √ √
Printing Contrast √ √
Tone Errors and Gray Patch √ √
Printing Plate √ √
Chromaticity index L*a*b*,L*C*h° √ √
dE*76,dE*94,dE*00,dECMC √ √
A,C,D50,D55,D65,D75,F2,F7,F11,F12 √ √
XYZ,Yxy √ √
Special Reflection Graph √ √
Paper Indices √
Opacity √
de Trend √
Metamerism √
Absolute Color Strength √
Relative Color Strength √
Best Match
QC Function Paper QC
Best Match Table
Ink QC
TVI Table
Gray Balance QC
G7,PSO,ISO,JapaColor
Custom Work Template
Color Library Pantone PMS+
PantoneLIVE
Custom color library
Security Security Settings
Multiple User Profiles
Other Scan Mode
Spectral Data Derivation √
Pass or Failure √ √
Averaging √
Sample Storage
Standard
Interface USB √ √
Bluetooth √
Software √ √

Comparasion with Other brands

3nh Instrument Description Similar Models
YS6060 Spectrophotometer d/8°;d/0° CI7800,CM3600A
YS4560 Spectrophotometer 45°/0 BYK 6801,CM2500C
YS4510 Spectrophotometer 45°/0 CM2500C,CS600C
YD5050 Spectrophotometer 45°/0 Exact advance
YD5010 Spectrophotometer 45°/0 Exact basic, basic density meter
YS3060 Spectrophotometer d/8° X-rite Ci62, Ci64, Ci64UV; MINOLTA CM-2600d, CM-600d, 700d
YS3010 Spectrophotometer d/8° X-rite Ci60; MINOLTA CM-2300d
NS800 Spectrophotometer 45°/0 BYK 6801
NR60CP Colorimeter 8°/d MINOLTA CR-10 plus
NHG268 Gloss Meter 20°, 60°, 85° gloss BYK 4563
NHG60 Gloss Meter 60° gloss BYK 4561
T90-7 Light Cabinet 7 Illuminants X-rite SpectraLight QC

Frequently Asked Questions


1. Can the YD5010 spectrophotometer be equivalent to any models of world famous brands?
Answer: Yes, our YD5010 is equivalent to the X-rite Exact densitometer

2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
