Delta E Lab Colour Measurement Spectrophotometer For Print / Packaging
Delta E Lab Colour Measurement Spectrophotometer For Print / Packaging
Delta E Lab Colour Measurement Spectrophotometer For Print / Packaging
Delta E Lab Colour Measurement Spectrophotometer For Print / Packaging
Specifications
Brand Name :
X-rite
Model Number :
eXact
Certification :
CE
Place of Origin :
USA
MOQ :
1 Unit
Price :
Please send inquiry
Payment Terms :
T/T
Supply Ability :
500 Units per Month
Delivery Time :
2-5 Days
Packaging Details :
Carton Box
Measurement Geometry :
45°/0° ring illumination optics, ISO 5-4:2009(E)
Inter-Instrument Agreement :
Average: 0.25 ΔEab,
Light Source :
Gas filled tungsten (illuminant type A) and UV LED
Repeatibility :
0.05 ΔEab
Spectral Range :
400 nm to 700 nm
Measurement Conditions :
M0, M1 (part 1) , M2, M3
Description

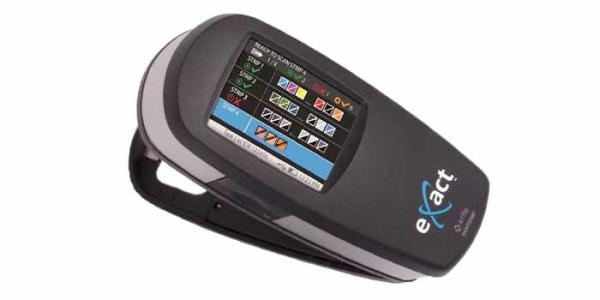

X-Rite eXact handheld spectrophotometer CMYK delta E lab For Print & Packaging

The X-Rite eXact handheld spectrophotometer takes color measurement and management to the next level. It is a scalable platform that can be field upgraded as needs change, from a simple densitometer to a highly advanced spectral measurement instrument. eXact enables printers and packaging converters to truly understand, control, manage, and communicate color through all facets of production , avoiding unwanted reprint and rework.

Benefits:

  • Best in Spot Color Support
    Fully integrated Pantone spectral data, support of the PantoneLIVE color digital workflow, and ink key adjustment recommendations for spot colors and CMYK make eXact best-in-class for handling spot colors.
  • Accurate and Consistent
    The combination of the advanced spectral engine and integrated white calibration ensures the highest accuracy and consistency with other instruments – all the time. When used with NetProfiler, customers can ensure accuracy and consistency across multiple measurement devices within a single facility or across geographies.
  • Configurable
    eXact allows the user to easily configure and control the instrument to the specific standards of a selected job.
  • Efficient
    eXact is built to bring efficiency to your operation with its ability to do simultaneous polarized and unpolarized measurements (M0, M2 and M3).
  • Expandable
    With a comprehensive portfolio of products, the eXact family integrates with many of X-Rite solutions to ensure color consistency.
By deploying X-Rite eXact spectrophotometers, print and packaging operations can significantly reduce makeready times, improve quality, reduce substrate and ink waste and enjoy a more efficient workforce. It is the first instrument in the marketplace to combine unique hardware and software into a single integrated, scalable solution that helps operations get color right the first time - every time.

Specifications

Short Term Repeatability - White 0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds)
Short Term Repeatability - Density '+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)
Measurement Geometry 45°/0° ring illumination optics, ISO 5-4:2009(E)
Inter-Instrument Agreement Average: 0.25 ΔEab,
Max: 0.45 ΔEab (for M3: 0.55 ΔEab)
(Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°))
Light Source Gas filled tungsten (illuminant type A) and UV LED
Measurement Conditions M0, M1 (part 1) , M2, M3
Measurement Time < 1 sec
Spectral Analyzer DRS spectral engine
Spectral Interval 10 nm
Spectral Range 400 nm to 700 nm
Spectral Reporting 400 nm to 700 nm with 10mm interval
Color Differences CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994)
Color Spaces CIE L*a*b*, CIE L*C*h°, CIE XYZ and Yxy
Illuminants A, C, D50, D55, D65, D75, F2, F7, F11, D12
Observers 2° and 10°
Humidity 30 to 85% RH (non-condensing)
Operating Temperature Range 10°C to 35°C
50°F to 95°F
Storage Temperature Range -20° to 50°C
-4° to 122°F
Dimensions (length, width, height) 18 cm x 7.8 cm x 7.6 cm
7.1" x 3.1" x 3.0"
Weight 700 g
1.6 lbs.
3rd Party Software Supported X-Rite ColorCert, X-Rite Color iQC, X-Rite InkFormulation, X-Rite NetProfiler and many others
Communication Interface USB 2.0
Bluetooth (optional) - Class II
Configuration Options Bluetooth, NetProfiler
Instrument Display Color touch-screen, 320 x 240 pixels
Languages Supported Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish
Software Development Kit Yes
Software Modes Densitometer, Standard, Advanced
User Experience Start-up wizard, configurable
Battery Lithium Ion, 7.4VDC, 2200mAh
Voltage 12 VDC @ 2.5 A
Sample/Measurement Max. 5000 samples
Standards More than 20'000 standards (incl. data for all M modes)
Density Range 0.0 D – 3.0 D
Density Standards Status A, E, I, T and G
Industry Standards ISO 5-4:2009(E), ISO 13655:2009
BestMatch Feature Yes
Calibration Automatic on integrated white reference
Embedded NetProfiler Support Yes
G7 Certification Yes
NetProfiler Support Yes
PantoneLIVE Support Yes
Pass / Fail Yes
Warranty 1 year
What's Included? USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate
Macintosh MacOS X 10.8, 10.9, 10.10, 10.11
Windows Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
