Flat Grating 3200mAh Color Measurement Spectrophotometer Bluetooth 5.0 MS3012
Flat Grating 3200mAh Color Measurement Spectrophotometer Bluetooth 5.0 MS3012
Specifications
Brand Name :
3nh
Model Number :
MS3012
Certification :
CE&RoHS&TUV&FCC&ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
discuss
Payment Terms :
T/T
Supply Ability :
1000PCS/MONTH
Delivery Time :
2 work days
Packaging Details :
Standard Export Package
Measurement Geometry :
12 measurement angles (7 illumination sources, 2 receivers)
Spectral separation device :
Concave Grating
Detector :
256 Image Element Double Array CMOS Image Sensor
Wavelength Range :
400-700nm
Color Spaces :
CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Size(L*W*H) :
195X83X128mm
Description
Company Information

Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.

Product Description

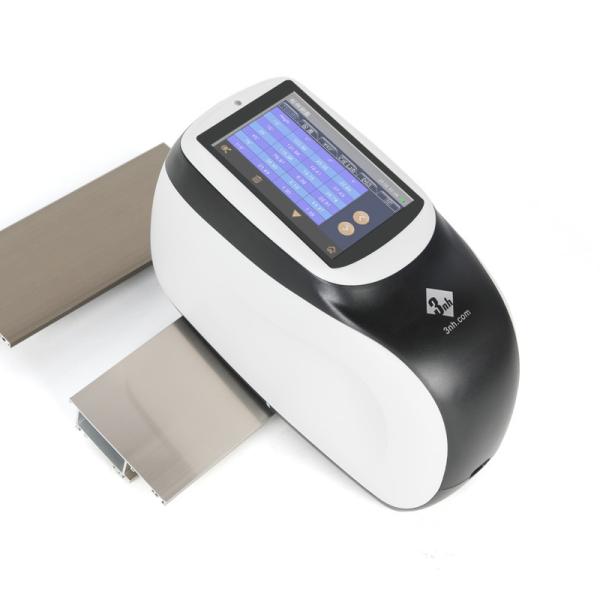

MS3012 Multi-Angle Spectrophotometer

MS3012 Multi-angle spectrophotometer adopts Industrial-grade MCU with 12 measuring angles, which can provide accurate and consistent color measurement for metalllics, pearlescents and other complex special effect finished products. The smooth operating system and superior performance of the optical system allow the MS3012 multi-angle spectrometer to provide repeatability and reproducibility of Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) measurement.

3nh Multi-angle spectrophotometer MS3012 is used to measure the color difference for the surface paint which is affected by different viewing angles and viewing conditions. It can not only measure multi-angle color difference, but also measure and characterize special finishes through 12 measuring angles. Even in the curved surface, it also has high measuring accuracy and stability.

Technical parameters

Model MS3012
Measurement Geometry 12 measurement angles (7 illumination sources, 2 receivers)
Measure Angle 45° Receiver:
45as-15°,45as15°,45as25°,45as45°,45as75°,45as110°
15°Receiver:
15as-45°,15as-15°,15as15°,15as-30°,15as45°,15as80°
Conform to the standards:ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4
SAE J 1545
Application Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products
Light Source Full spectrum LED light source with blue enhancement
Lamp Life 5 years, 3 million times measurements
Spectrophotometric Mode Concave Grating
Sensor 256 Image Element Double Array CMOS Image Sensor
Wavelength Range 400nm-700nm
Wavelength Interval 10nm
Measurement Range 0~600%
Semiband Width 10nm
Measuring Aperture Φ12mm
Color Space CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99
Color Difference Formula ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175
Other Colorimetric Index Flop Index, Int-Em
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value
Measuring Time

Approx. 1 second for one angle

Approx. 12 seconds for all angles
Repeatability

Spectral reflectance: Standard deviation within 0.08%

Chromaticity value: ΔE*ab 0.02 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Reproducibility ΔE*<0.10,avg on the gray tile of BCRA tile set
ΔE*<0.25,avg on the color BCRA tile set
Inter-instrument Error 0.18ΔE*00(avg on reference Series II BCRA tile set)
Effect Parameters Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV)
Effect Measurement 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80°
15d Diffuse coarseness(DC)
Effect Repeatability Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration)
Effect Reproducibility

Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations)

(avg on reference Series II BCRA tile set)

Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set)
Trigger mode Pressure sensing trigger, button trigger, software trigger
Measuring Mode Single measurement, average measurement (1-99), continuous measurement (1-99)
Locating Mode Color camera preview
Dimension L*W*H=195X83X128mm
Weight About 1Kg
Power lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Interface USB, Bluetooth 5.0
Data Storage 1000 pcs Standards,4000 pcs Samples
Language Simplified Chinese, Traditional Chinese, English
Operating Environment 10℃ to 50℃, humidity does not exceed 85%, no condensation
Storage Environment -20℃ to 50℃, humidity does not exceed 85%, no condensation
Calibration Built-in white board parameters, external white board, black light trap, color board
Calibration Interval 4 hours,8 hours,24 hours,Startup calibration
Standard accessories Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband
Optional Accessory Micro-printer
Notes Technical parameters are for reference only, subject to actual sales products.

Our Services

1.24 hours online to ensure quick response to customers' inquiry or online message;

2. Help customers to choose the best suitable machine model;

3. We support OEM and ODM service and 12 months warranty from the purchase date.

Flat Grating 3200mAh Color Measurement Spectrophotometer Bluetooth 5.0 MS3012

FAQ

1. Which brand can 3nh spectrophotometer compare with in the world?
Answer: 3nh instruments can be used to compare with famous brands like Xrite, Minolta, BYK, Datacolor and Hunterlab.

2. Are you a trader or a manufacturer?
Answer: We 3nh is a professional manufacturer from China for 22 years. We research and develop, design and produce, market and sell color measuring instruments and gloss meters, color light box etc.

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
