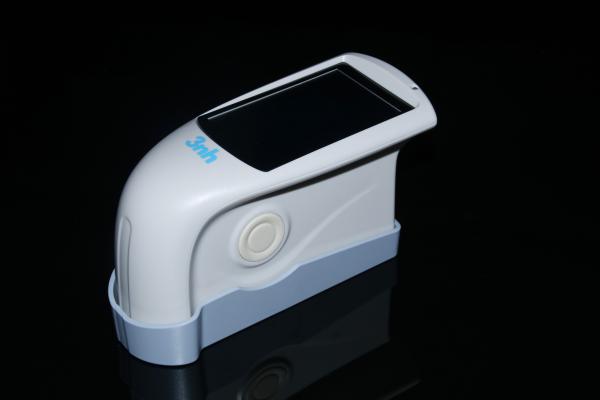

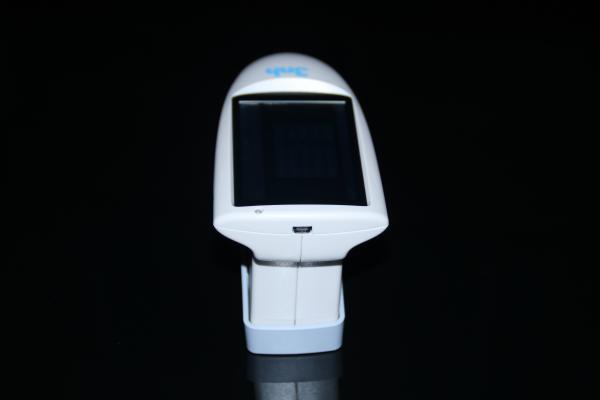

Powder Coating Multi Angle Gloss Meter 60 Degree NHG60 To Replace BYK 4561
Powder Coating Multi Angle Gloss Meter 60 Degree NHG60 To Replace BYK 4561
Powder Coating Multi Angle Gloss Meter 60 Degree NHG60 To Replace BYK 4561
Powder Coating Multi Angle Gloss Meter 60 Degree NHG60 To Replace BYK 4561
Specifications
Brand Name :
3nh
Model Number :
NHG60
Certification :
CE, TUV, FCC, RoHs
Place of Origin :
Shenzhen China
MOQ :
1 Unit
Price :
Please send inquiry
Payment Terms :
T/T
Supply Ability :
1000 Units per Month
Delivery Time :
1-5 Days
Packaging Details :
30*20*10cm, 1kg, with a carrying bag
Measuring Angle :
60°
Measuring Area(mm) :
60°:9x15
Measuring Range(GU) :
60°:0~1000
Division Value :
0.1GU
Tolerance :
±1.2, ±1.2%
Data Port :
USB
Description

1. Product Profile

NHG60 gloss meter is a high-end precise 60 degree single-angle smart gloss meter for surface glossiness measurement and management, which can be widely applied in all kinds of industries, such as plastics, metals, paint and coating, furniture, wood, ink, printing and packaging, cosmetics, fabrics, textiles and garments, electronics, tiles and decoration industry.

In one word, NHG60 single-angle gloss meter can be perfectly applied in any place that requires gloss measurement and control.

2. Detailed Technical Parameter / Specification Form

Technical Parameter Items NHG60 Precise Single-angle Smart Gloss Meter
Product Category Optical Electronic Gloss Measurement Instrument
Product Name Gloss Meter, Glossmeter
Application For the measurement of the surface glossiness of those products like plastics, metals, textiles, papers, wood, tiles, etc.
Optical Angles One Angle: 60°
Measurement Area 60°: 9×15mm
Measurement Range 60°: 0~1000GU
Division Value 0.1GU

Measurement Range

Repeatability

Reproducibility

0~10GU 10~100GU 100~1000GU

±0.1GU ±0.2GU ±0.2%

±0.2GU ±0.5GU ±0.5%
Measurement Standard Conform with JJG696 first class glossmeter working requirements
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
Inter-instrument Error ±1.2, ±1.2%
Measuring Time 0.1s
Display Screen 3.5" TFT Capacitance Screen-touch Display
Operation by Screen-touch
Measurement Modes Three Measurement Modes: Basic Mode, Statistical Mode, Continuous Mode
Data Storage Capacity

Basic Mode: 1000pcs.

Statistical Mode: 5000pcs.

Continuous Mode: 5000pcs.
PC Software GQC6 (for free)
Data Transferring Port USB
Language Built-in English, Chinese.
Power Supply

Built-in Rechargeable Battery (more than 10000 times of measurements in 8 hours),

Power Adapter
Working Environment Temperature: 0∼40℃; Humidity: 0∼85% (No Condensation)
Storage Environment Temperature: -20℃∼50℃; Humidity: 0∼85% (No Condensation)
Standard Accessories Calibration Board, Power Adapter, USB Cable, PC Software GQC6, User Guide.
Optional Accessories Mini Thermal Printer
Weight 350g
Dimension 160*75*90mm

3. Detailed Introduction to Instrument

3.1. High configuration of hardware: 3.5 inches TFT capacitance screen-touch display, showing 5 rows of data in one screen, convenient for comparison.

3.2. Big screen-touch display, makes your operation more convenient and freer.

3.3. The most universal degree for glossiness, 60-degree gloss measurement.

3.4. Large measurement range from 0GU to 1000GU, can measure the glossiness of any targets from matt to very high gloss.

3.5. Three measurement modes: Basic Measurement Mode, Statistical Measurement Mode, Continuous Measurement Mode. Perfectly suitable for different working situations.

3.6. Screen-touch operation, very easy to calibrate and do other system settings.

3.7. Configured with a PC terminal software GQC6, more extended powerful functions for color data management can definitely facilitate your gloss measurement work.

4. Company Profile

NHG60 was developed and manufactured independently by Shenzhen 3nh/ThreeNH Technology Co., LTD. which is a national high-tech company who has been specializing in researching and developing, manufacturing and marketing surface color measuring instruments and equipment, gloss measurement meters and also color matching light cabinets for over 22 years, since founded in 1998.

We warmly welcome customers, partners and friends to visit our company and factory in Shenzhen, China.

5. Frequently Asked Questions

1. Can the NHG60 gloss meter be equivalent to any models of world famous brand?
Answer: Yes, our NHG60 is equivalent to BYK4561 of BYK.


2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer. We research and develop, design and produce, market and sell color measuring instruments and gloss meters.
Our company office, together with our factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!

3. What's your main market?
Answer: We sell to the global market.

4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.

5. What is your payment terms?
Answer: The payment term is 100% T/T in advance. Of course the first suggested payment method is by starting the order here via Alibaba platform.

6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.
