CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software
CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software
CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software
CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software
CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software
CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software
CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software
CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software
Specifications
Brand Name :
3nh
Model Number :
CR3
Certification :
CE,RoHs,ISO,etc
Place of Origin :
Shenzhen, China
MOQ :
1pc
Price :
300 USD
Payment Terms :
T/T,Paypal
Supply Ability :
1000pcs/month
Delivery Time :
2 works days
Packaging Details :
Standard Export Package
Geometry :
D/8
Integrating sphere size :
Φ20mm
Measuring Aperture :
8mm
Color Space :
CIEL*a*b
Delta e :
<0.05
SCI/SCE :
SCI
Observer Angle :
2/10°
Software :
MOBCCS APP
Description

Mini ColorReader d/8 400-700 nm wavelength Pocket Colorimeter CR3 with APP software

ColorReader CR3 is developed by 3nh adopting advanced color sensor and rich performances APP, with special multi-functional "Smart Button" and professionalized non-contact auto white board calibration, incorporating micro colorimeter and cellphone color reader two in one. It can be widely applied in different industries, such as plastics, electronics, paint and ink, printing, garments, leather, paper, auto, medical, cosmetics, food for color difference management. ColorReader CR3 is small and portable, which can identify and search color cards via smartphone APP. Users can use it to capture color inspiration anytime and anywhere.

The ColorReader CR3 with APP can directly display the sample color value, color difference value, pass/fail result, color simulation, color deviation, reflectance and other data, which is convenient for viewing and greatly improves the user's work efficiency. APP synchronizes mass storage, which can quickly check color data, analyze and compare. Use the App to build your private color database in the cloud, without having to carry heavy color cards, you can use CR3 to find the closest color among multiple color cards anytime and anywhere.

CR3 Technical Features:

1. Instant and Precise Color Measurement

2. Non-contact Auto Calibration

3. Multifunctional “Smart Button”

4. Professional integrating sphere dual optical path design

5. Lightweight and Portable

6. Rechargeable Lithium Battery

7. Higher Quality

8. Diversified Data Display Modes

9. Massive Color Card Database with You

ColorReader CR3 Technical Specs:

Product Name & Model CR3(Advanced Edition) ColorReader
Geometry D/8(Diffuse illuminance, 8°reception, SCI), Conforms to standards CIE No.15,GB/T 3978.
Features

Used for color difference quality control in plastic electronics, paint and coating, textile and garment printing and dyeing, ceramics and other industries;

Small size, easy to carry, search for the color cards and multifunction expanded through smartphone APP
Integrating sphere size Φ20mm
Illuminant Full spectrum LED light source
Spectro device Filter spectro
Sensor CMOS Dual light path sensor
Wavelength Range 400～700nm
Measuring Aperture Φ8mm
SCI/SCE SCI
Color Spaces CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB,HunterLab,βxy, DIN Lab99
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter)
Other Color Index

WI(ASTM E313,CIE/ISO, AATCC, Hunter),

YI(ASTM D1925,ASTM 313),

Metamerism Index Mt, Color fastness, color strength, and Opacity, 555 color classification, Munsell(C/2) (implemented by mobile APP)
Display Accuracy 0.01
Observer Angle 2/10°
Light source D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Display Sample chromaticity value, color difference value, pass/fail result, color simulation, color deviation, reflectance (partly through mobile APP)
Measuring Time 1.0s
repeatability Color:ΔE*ab within 0.05(After warm-up calibration, the average value of measuring the whiteboard 30 times at an interval of 5s)
Metrology requirements Pass National Metrology
Measurement Mode Single measurement,Average measurement(2~99times)(Implemented through smartphone App)

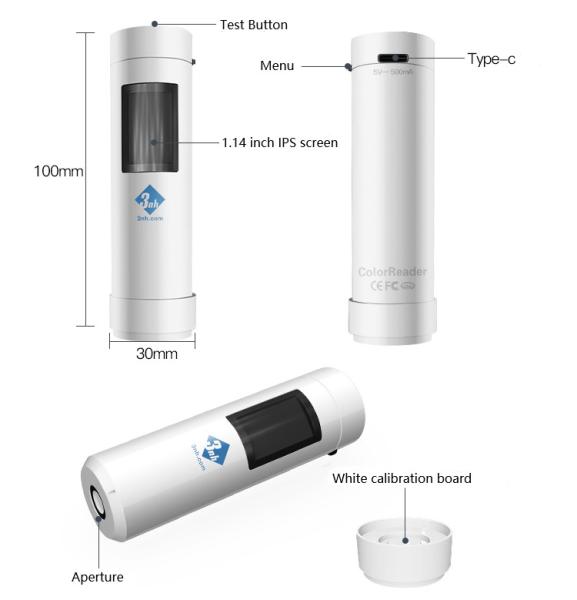

Dimension Ø30X100mm
Weight 88g
Battery Lithium battery, can do tests continuously for 12000 times in a single full charge
Light source lifespan 5-years more than 3 million times measurements
Display screen IPS full color screen, 1.14 inch
Interface Type-C USB; Bluetooth 5.0; Buttons
Data storage Standards: 10pcs, Samples: 100pcs. Mass storage can be expanded through mobile APP
Data review The instrument has its own measurement data review function
White calibration Non-contact automatic calibration
Settings Instrument can set parameters
Language Chinese,English
Working Temperature range 0~40℃,0~85%RH(No condensation),Altitude:lower than 2000m
Storage Temperature Range -20~50℃,0~85%RH(No condensation)
Standard Accessories Data cable, manual, calibration box, SQCX PC Color quality management software, MOBCCS APP (download from official website)
Optional Accessories USB mini printer, powder test box
Note: Technical parameters are for reference only, subject to actual instruments.

CR3 SCI 3nh Colorimeter Pocket Portable Colorimeter 8mm Aperture With APP Software

*****ColorReader.com,sechabao.com,Colorimeter.com,sechayi.com all are 3nh websities.

ColoReader Always keep the mission in mind:3nh Makes Better
