TILO P60+ Textile Light Box Color Assessment Cabinet D65 Lamp N7 Neutral Grey Color
TILO P60+ Textile Light Box Color Assessment Cabinet D65 Lamp N7 Neutral Grey Color
TILO P60+ Textile Light Box Color Assessment Cabinet D65 Lamp N7 Neutral Grey Color
TILO P60+ Textile Light Box Color Assessment Cabinet D65 Lamp N7 Neutral Grey Color
TILO P60+ Textile Light Box Color Assessment Cabinet D65 Lamp N7 Neutral Grey Color
TILO P60+ Textile Light Box Color Assessment Cabinet D65 Lamp N7 Neutral Grey Color
TILO P60+ Textile Light Box Color Assessment Cabinet D65 Lamp N7 Neutral Grey Color
TILO P60+ Textile Light Box Color Assessment Cabinet D65 Lamp N7 Neutral Grey Color
Specifications
Brand Name :
TILO
Model Number :
P60+
Certification :
CE,ISO,RoHs,etc
Place of Origin :
Shenzhen,China
MOQ :
1pc
Price :
DISCUSS
Payment Terms :
T/T,Paypal,etc.
Supply Ability :
1000pcs/month
Delivery Time :
2 work days
Packaging Details :
Standard Wooden Exports Package
Model :
P60+
Size :
695x552x502mm
Light Sources :
D65,TL84,CWF,F,UV,TL83
Material :
plastic
Color :
N7 Neutral Grey
Used :
Textile, Dyeing, Packaging, Printing, Lether etc
Description
Product Overview

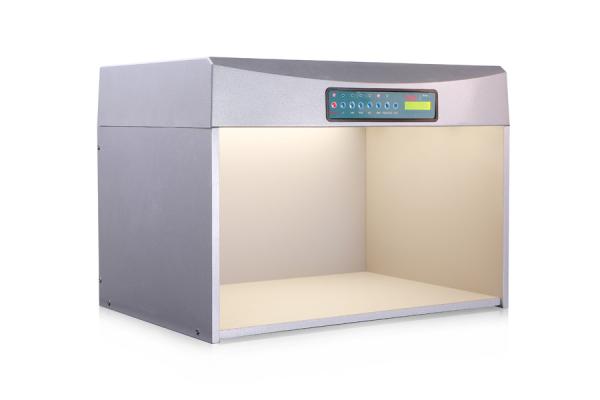

P60+ D65 fabric inspection light box
P60+ D65 fabric inspection light box / color matching light box can accommodate up to 6 light sources. The Color matching booths / Colour assessment cabinet / Color Light Box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.
Product Name
P60+ Color light box
Material
plastic
Color
neutral grey
Certification
CE,ISO9001,ROHS
Light Source
D65,TL84,CWF,TL83,UV,F
Warranty
12 months except comsumable
Used
Textile, Dyeing, Packaging, Printing, Lether etc
FEATURES AT A GLANCE
Ø TILO Color assessment cabinet With 6 different light sources(D65, TL84, CWF, TL83/U30, F, UV).
Ø Meets or exceeds major international standards for visual color evaluation including: ASTM D1729, ISO3664, DIN, ANSI and BSI.
Ø Easy to operate by using individual switches for each light source.
Ø Elapsed time meter for tracking optimal lamp replacement.
Ø Automatically alternating among light sources.
Ø No warm-up time or flickering which insures quick and reliable color judgment.
Ø Economic power consumption and low heat generation for high light efficiency.
D65
TL84
UV
TL83
F
CWF
00:00
08:16
PRODUCT SPECIFICATIONS
Technical Parameter Item
P60+ Color Assessment Light Cabinet
Product Category
Color Checking Equipment
Product Name
Color Matching Light Cabinet, Color Comparison Light Box
Application
For the comparison and assessment of the difference of surface colors of those products like plastics, metals, textiles, papers,
wood, tiles, etc. with human eyes under a standard light source environment.
Light Source Types
6 Kinds of Light Sources: D65, TL84, CWF, F, UV, TL83
D65
6500K, 20W, 2pcs of light tubes
TL84
4000K, 18W, 2pcs of light tubes
CWF
4150K, 18W, 2pcs of light tubes
F
2700K, 40W, 4pcs of light bulbs
UV
365nm, 18W, 1pcs of light tubes
TL83
3000K, 18W, 2pcs of light tubes
Internal Space Size
665×490×360mm
Dimension
695×552×502mm
Weight
19.5KG
Material
Engineering Plastics + Wood
Switch Button
Every switch button is with a timer and a counter
PRODUCT CONFIGURATION
Installation
Lamps
Optional Accessory
Packing & Delivery
No.
Name
Quantity
1
Light Booth Top Cover
1 pcs
2
Light Booth Bottom
1 pcs
3
Light Booth Back Cover
1 pcs
4
Light Booth Side Cover
2 pcs
5
Power Adapter
1 pcs
6
Operating Manual
1 pcs
7
Warranty Card
1 pcs
8
D65 Light Tube
2 pcs
9
TL84 Light Tube
2 pcs
10
UV Light Tube
1 pcs
11
F Light Tube
4 pcs
12
CWF Light Tube
2 pcs
13
TL83 Light Tube
2 PCS
