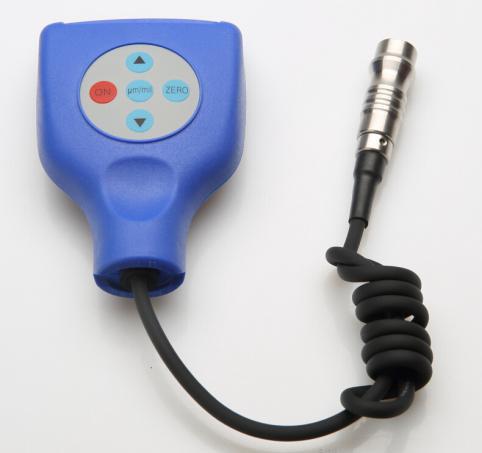

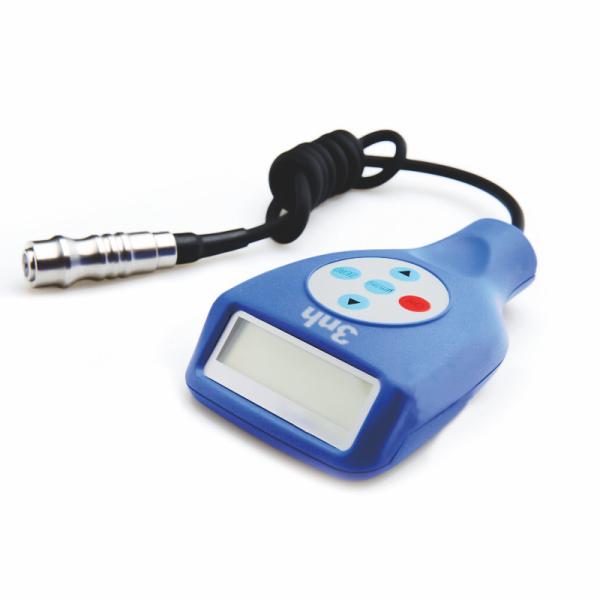

YT4200-P3 3nh Colorimeter , Paint Color Analyzer Non Magnetic Coatings Meter Tester
YT4200-P3 3nh Colorimeter , Paint Color Analyzer Non Magnetic Coatings Meter Tester
YT4200-P3 3nh Colorimeter , Paint Color Analyzer Non Magnetic Coatings Meter Tester
YT4200-P3 3nh Colorimeter , Paint Color Analyzer Non Magnetic Coatings Meter Tester
Specifications
Brand Name :
3nh
Model Number :
YT4200-P3
Certification :
CE, TUV, FCC, ISO9001, RohS
Place of Origin :
Shenzhen, China
MOQ :
1 Unit
Price :
600
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Units per Month
Delivery Time :
1-3 work days
Packaging Details :
28X24X10 cm, 1.5kg, carton box
Model :
YT4200-P3
Measuring Range :
0-1250µm (0-1.25mm) or 0-50mil
Resolution :
0.1µm (0-99.9 µm) and 1µm (over 100 µm)
Accuracy :
±1-3% (±2.5µm or 0.1mil - whichever the greater)
Minimum Measurement Area :
5mm
Minimum Sample Thickness :
0.3mm
Meets Standards Including :
ISO-2178, ISO-2360, DIN, ASTM & BS
Dimensions :
102 x 66 x 24mm
Description
Product Description
YT4200 is a domestic coating thickness gauge manufactured by 3nh company. It can detect the thickness of various non-magnetic coatings on the magnetic metal substrate quickly and accurately. The instrument fully conforms to the magnetic test principle specified in ISO 2178, GB / T 4956, ASTM b499 and other standards. The instrument is stable, accurate and powerful. It is widely used in the manufacturing industry, metal processing industry, chemical industry and other surface engineering detection fields.
It is the basic equipment of coating surface treatment industry.

Fe based probe can detect the thickness of various non-magnetic coatings sprayed on various magnetic substrates (such as steel), such as the paint layer, powder spraying layer, porcelain coating, chromium coating, copper coating, zinc coating, etc.
Specification
Model
YT4200-P3
What's in the Box?YT4200-P3
YT4200-P3 Gauge (Ready to Use), 1 x Calibration Checkpieces (Aluminium and Steel) &
5 x Thickness Check Foils
Typical Users include
Vehicle Appraisers & Buyers, Panel Beaters / Motor Body Repairers, Painting Contractors, Galvanizers,Anodisers, Powder Coaters,
Metal Fabricators,Chromers, Motor Vehicle Manufacturers, Vehicle Detailers, Zinc Platers etc
Ferrous Metal Mode (Fe)
(Typical Applications)
Technology - Magnetic Induction - (enables measurement of non magnetic coatings on magnetic substrates such as Steel, Mild Steel,
Cast Iron &Magnetic Stainless Steel). Example coatings:- Paint,Zinc / Galvanising, Chrome, Copper, Enamel, Rubber, Paint, Varnish,
Powder Coating, Plastic etc.
Measuring Range
0-1250µm (0-1.25mm) or 0-50mil
Resolution
0.1µm (0-99.9 µm) and 1µm (over 100 µm)
Accuracy
±1-3% (±2.5µm or 0.1mil - whichever the greater)
Power Supply
2 x 1.5V AA Batteries
Minimum Measurement Area
5mm
Minimum Sample Thickness
0.3mm
Operating Conditions
Temp: 0 - 50ºC and Humidity: < 80%
Weight
99g ( including batteries)
Dimensions
102 x 66 x 24mm
Meets Standards Including
ISO-2178, ISO-2360, DIN, ASTM & BS
(suitable for laboratory and harsh field conditions)
Units of Measurement
(Microns & Mils)
Metric Measurement:-
Micrometre (µm) – also known as Micron 1 µm = 1/1000mm
Imperial Measurement:-
Mil – also known as Thou 1 Mil = 1/1000 Inch
Conversion:-
1 Mil / Thou = 25.4 Microns / Micrometre (µm)
Additional Functionality
Gauge auto adjusts between Ferrous (Steel) and Non-Ferrous (Aluminium etc) Modes, Low Battery Indicator, Metric (Microns µm) or
Imperial (Mils)
measurement settings, Auto Power Off, Easy Reset to Factory Settings.
