White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer
White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer
White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer
White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer
White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer
White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer
Specifications
Brand Name :
3nh
Model Number :
NR10QC
Certification :
CE,RoHs,ISO,etc
Place of Origin :
Shenzhen, China
MOQ :
1pc
Payment Terms :
T/T,Paypal
Supply Ability :
1000pcs/month
Delivery Time :
2 works days
Packaging Details :
Standard Export Package
Model :
SCI
Color :
White
Measuring Aperture :
4mm
Color Space :
CIE L*a*b*c*h,CIEL*a*b, CIEXYZ
Delta e :
<0.03
Calibration :
Manual
Locating :
Cross-Locating Illumination Locating
Description

Plastic handheld colorimeter 4mm aperture paint color difference analyzer

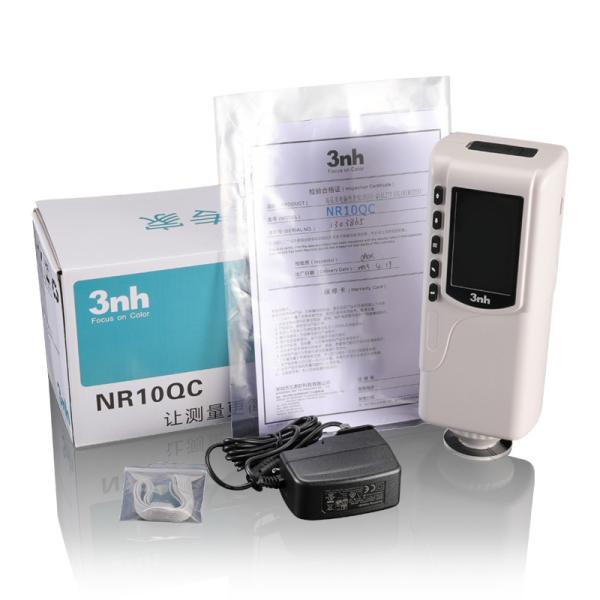

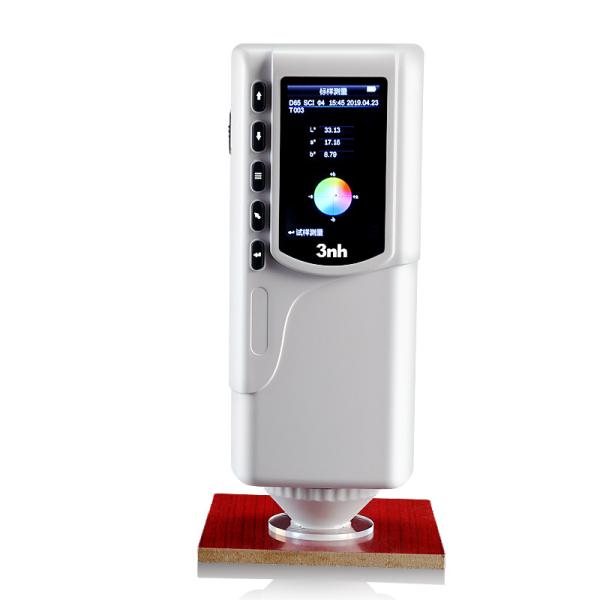

NR10QC Precision Colorimeter

Introduction:

NR10QC Precision Colorimeter is a handheld colorimeter based on 45°/0° optical geometry. Its measuring aperture is 20mm. NR10QC measuring aperture is the biggest one in domestic. Meanwhile, it also has high measuring precision. As a member of 3nh 45°/0° colorimeter, NR20XE is a colorimeter with unique performance. The color measurement results from NR20XE simulate human eyes but its accuracy is several times higher than human eyes. NR20XE 45°/0 ° optical geometry structures can reflect interactive effect between surface stripe and sample color more effectively than 8°/d colorimeter. NR10QC will eliminate the errors between human eyes and color tester caused by surface stripe when judging tolerance critical value of sample colors. Therefore, NR20XE is widely used in color field.

Feature:

1. 20mm measuring aperture can test objects with surface stripe accurately.

2. Vertical structure can test wet surface object or can be soaked into the liquid for testing.

3. Double Locating: Illuminating locating and cross locating.

4. Adopting new optical path and dynamic integration time can test more stable and accurate.

5. 45°/0° optical geometry structure, considering the effects of surface features.

6. Annular illumination design, suitable for polarizing material.

7. Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.

8. Configuring CQCS3 software -- connect PC computer to realize more functions.

Technical Parameter:

Model
NR10QC
Brand
3NH
Measurement Geometry
8° /d
Positioning way
Light orientation and cross orientation
Measuring Aperture
Φ4mm
Detector
Silicon photoelectric diode
Light Source
D65(LED blue light excitation)
Measurement End Face
Large stable end-face and small concave-convex end-face
Interface
USB
Storage
100pcs standards
10000pcs samples
Lamp Life
5 years, more than 1.6
million measurements
Locating
Illuminating Locating/Cross Locating
Dimension
205*67*80mm
Weight
500(g)
Charging Time
8 hours--100% electricity
Inter-instrument Error
≤0.20 ΔE*ab
Color Spaces
CIE-La*b*C*H
CIE-L*a*b
CIE-XYZ
Color Difference Formula
△E*ab

White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer

White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference AnalyzerWhite Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference AnalyzerWhite Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference AnalyzerWhite Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer

White Plastic Handheld Colorimeter , 4mm Aperture Paint Color Difference Analyzer
