8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
Specifications
Brand Name :
3nh
Model Number :
TS7030
Certification :
CE, TUV, FCC, ISO9001, RoHS
Place of Origin :
Shenzhen China
MOQ :
1 Unit
Price :
Please send inquiry
Payment Terms :
T/T
Supply Ability :
1000 Unit per Month
Delivery Time :
5-8 Days
Packaging Details :
380*310*210mm, 18KG, Aluminum Box Package
Optical Geometry :
d/8
Wavelength :
400-700nm
Repeatibility :
DeltaE ≤ 0.06
Inter-instrument Error :
DeltaE ≤ 0.3
Aperture :
8mm
Sphere Size :
40mm
Description

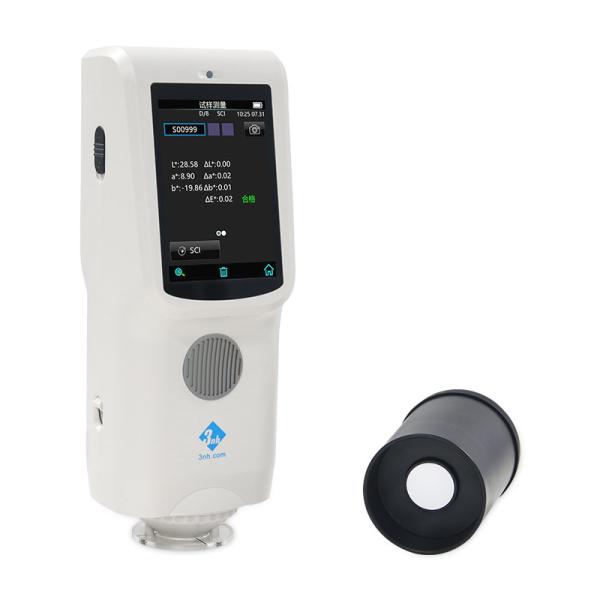

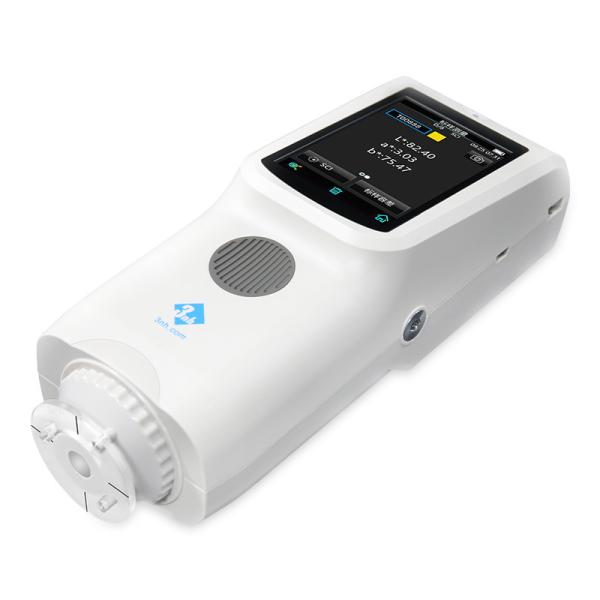

3nh colour measurement device colorimeter spectrophotometer for food color test TS7030

TS7030 is 3 nh using autonomous core technology research and development of A portable light color difference instrument, is the high level in spectral architecture color difference instrument, in addition to ensure accurate relative Δ E at the same time, also to ensure the accuracy of the absolute value of L, A and B for A long time, anytime, anywhere can pass the international standards and national standards of measurement. Using built-in silicon photodiode array (double row group 32) sensors, import the whiteboard, repetitive Δ E * ab easily control within 0.06, both measurement speed and convenience of the operation at the same time, connecting the PC software or even the PC software can quickly judging color difference measurement, powerful, 8 mm diameter meet plastic electronics, paint and ink, textile printing and dyeing, printing, such as the ceramic industry production and the quality of accurate color control.
Spectrophotometer TS7030 product features
1. Φ 8 mm diameter measurement, 10 ° Angle, observer can meet most of the industry customer requirements;
2. Combination of full-spectrum LED light source, plane grating and true color capacitive touch screen, with a high starting point;
3. Silicon photodiode array (32 groups with double rows) sensor, display precision 0.01, good repeatability;
4. The light source life is more than 3 million measurements in 5 years, and the lithium battery takes 6,000 measurements within 8 hours, which can be recharged repeatedly and has a long battery life;
5. 1000 data storage standard samples and 20000 samples were used for quick data search, analysis and comparison.
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
8mm 3nh Colour Measurement Device Colorimeter Spectrophotometer For Food Color Test TS7030
Model TS7030
Optical Geometry D/8(diffused illumination, 8-degree viewing angle)
SCI/SCE Mode
Comply to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Characteristic single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries
Integrating Sphere Size Φ40mm
Light Source Combined full spectrum LED light source, UV light source
Spectrophotometric Mode Flat Grating
Senso Silicon photodiode array (double row 32 groups)
Wavelength Range 400～700nm
Wavelength Interval 10nm
Semiband Width 10nm
Measured Reflectance Range L:0~120; reflectivity:0~200%
Measuring Aperture Single Apertures:Φ8mm/Φ10mm
Specular Component SCI/SCE
Color Space CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN Lab99 Munsell(C/2)
Color Difference Formula ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99
Other Colorimetric Index WI(ASTM E313,CIE/ISO,AATCC,Hunter),
YI(ASTM D1925,ASTM 313),
Metamerism Index MI,
Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search
Observer Angle 2°/10°
Illuminant D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Simulation, Color Offset
Displayed Accuracy 0.01
Measuring Time About 1.5s (Measure SCI & SCE about 3.2s)
Repeatability Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error MAV/SCI, Within ΔE*ab 0.3
(Average for 12 BCRA Series II color tiles)
Measurement Mode Single Measurement, Average Measurement(2-99times)
Locating Method Camera Locating,stabilizer cross position
Dimension L*W*H=81X71X214mm
Weight About 460g
Battery Li-ion battery, 6000 measurements within 8 hours
Illuminant Life Span 5 years, more than 3 million times measurements
Display 3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port USB
Data Storage Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE)
Language Simplified Chinese, English, Traditional Chinese
Operating Environment 0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment -20~50℃, 0~85%RH (no condensing)
Standard Accessory Power Adapter, USB Cable, User Guide, PC Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture
Optional Accessory USB Micro Printer, Powder Test Box,Bluetooth Micro Printer
Notes Technical parameters are only for reference, subject to the actual sale of the product
