D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture
D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture
D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture
D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture
Specifications
Brand Name :
3nh
Model Number :
NS800
Certification :
CE, TUV, FCC, ISO9001, RohS
Place of Origin :
Shenzhen, China
MOQ :
1 Unit
Price :
Please send inquiry
Payment Terms :
T/T
Supply Ability :
500 Units per Month
Delivery Time :
2-5 work days
Packaging Details :
46*25*38cm, 4.5kg, Alluminum Box
Optical Geometry :
45°/0
Sphere Size :
Φ58mm
Repeatibility :
ΔE*≤0.04
Inter-instrument Agreement :
ΔE*≤0.2
Wavelength Range :
400-700nm
Measuring Aperture :
Φ8mm
Description

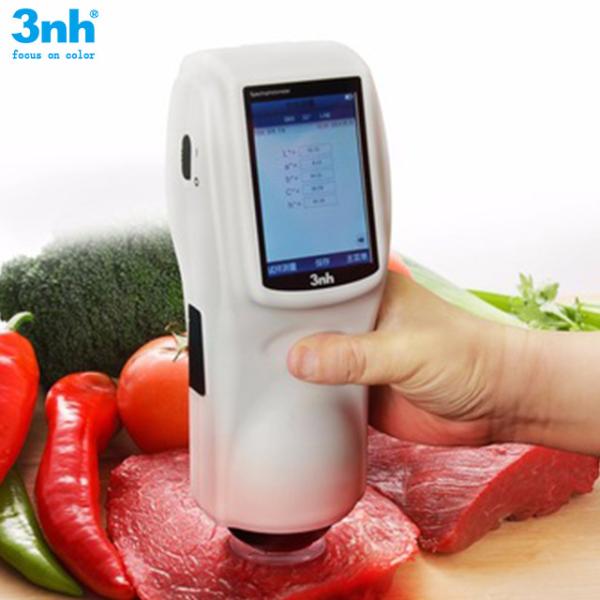

3nh NS 800 meat colorimeter spectrophotometer d/8 with 8mm measurement aperture for color difference

Product Specification:

Model NS800
Illumination/ observation system 45°/0° (45 ring-shaped illumination, vertical viewing)
Integrating sphere size 58mm
Light source Combined LED sources
Sensor Silicon photodiode array
Wavelength range 400~700nm
Wavelength interval 10nm
Reflectance range 0~200%
Measuring aperture 8mm
Color space CIE LAB, XYZ, Yxy, LCh, CIE LUV, LAB&WI&YI
Color difference formila ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*cmc(l:c), CIE2000ΔE*00, ΔE(h)
Other chromaticity data

WI(ASTM E313, CIE/ISO, AATCC, Hhunter),

YI(ASTM D1925, ASTM 313),

Metamerism INdex(Mt), color strength

Color stain, color fastness
Observer 2°/10°
Illuminant D65, D50, A, C, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
Display data Spectral value/graph, colorimetric value, color difference value/graph, pass/fail result, color simulation, color index setting (ΔE*94, ΔE*cmc, ΔE2000), tolerance prompt, reverse prompt, time setting, language setting, restore factory setting
Measurement time 1.5s
Repeatability

Spectral reflentance: standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric value: standard deviation within ΔE*ab 0.04 (measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)
Errors between each instrument within ΔE*ab 0.2 (average for 12 BCRA series II color tiles)
Dimension L*W*H=90*77*230mm
Weigh 600g
Battery Li-ion battery, 2800 times within 8 hours
Lamp life 5 years, more than 1.6 million measurements
Display screen TFT 3.5 inch, capacitive touch screen
Interface USB/ RS-232
Data memory 1000 standard, 15000 samples
Operating temperature 0~40 ℃(32~104°F)
Storage temperature -20~50℃(-4~122°F)
Standard accessory Power adapter, li-ion battery, operating instruction, CD-ROM ( containing management software), data line, white and black calibration cavity, protective cover and wrist strap
Optional accessory Universal test components, micro printer, power test box
Warranty 1 year
Notes The specifications are subject to change without notice.

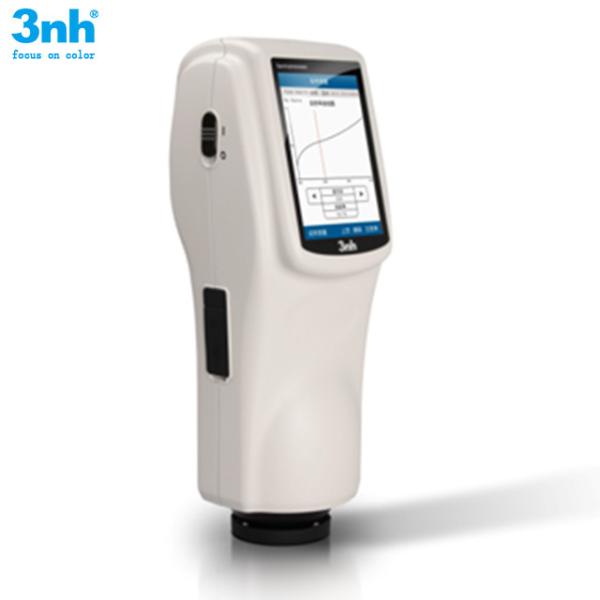

Product Images:

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

Product Introduction:

NS 800 spectrophotometer is developed by 3nh with indepandent intellecual property rights. It features with stable performance, precise measurement and powerful functions in the leading position of the same industry. It can measure reflentande spectrum and other color index precisrly. NS 810 spectrophotometer can not only help to perform color matching management studies, but also control product quality management accurately. The instrument is equipped with high-end color management software which can connect PC to achieve more extension functions.

It's used to compare color difference in plastic, electronic, painting, coating, ink, textile, garment, printing, dyeing, food, medical, cosmetic industries and institutes, schools and laboratories.

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

Packing & Delivery:

Size 436*224*365mm
Gross weight 3.8kg
Standard accessory Power adapter, li-ion battery, operating instruction, CD-ROM ( containing management software), data line, white and black calibration cavity, protective cover and wrist strap
Optional accessory Universal test components, micro printer, power test box

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

Company Information:

Shenzhen Threenh Technology Co., Ltd. is a high-tech enterprise. We research, develop, produce and market photoelectric detection products in photoelectric detection technology field and color management field.After years of intensice research, 3nh has launched NS series spectrophotometer and NH, NR series colorimeter, ISO12233 resolution test chart, optical image test solution and specific standard illuminant which are widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, optical image test industries and the field of scientific research, school and laboratory. Our products are exported around the world. We can provide customization service which has been well received by customers.
3nh cherishes talents, focuses on talents. Company brings together many of high-level, high educated professionals. Among them, undergraduate academic staffs of the total number of company accounted for more than 80%; postgraduate staffs of the total number of company accounted for 30%. It involves the fields of photometry, electronic circuit, embedded system, photoelectric detection, mechanical structure design, optical design, application software, lighting technology electronic commerce and internet. 3nh team has strong capability to design, develop and produce on its own. The company has a large number of innovation patents, core technologies and intellectual property rights of 3nh products.
3nh adheres to “people-oriented, customer first, technological innovation, sustainable development” business philosophy to meet customer demand continuously, to create value for customers and to achieve win-win situation and common development.

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

D/8 Integrating Sphere Spectrophotometer 3nh NS800 With 8mm Measurement Aperture

Certificates:

ISO9001, CE, FCC, ROHS, TUV
