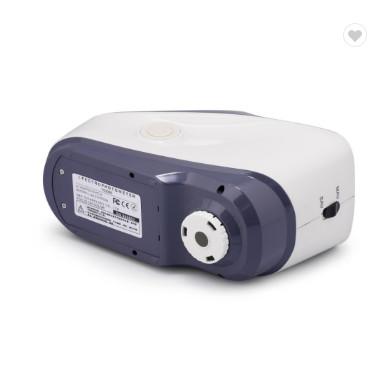

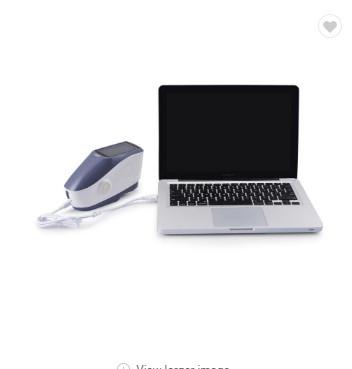

QC Color Paint Matching Spectrophotometer , 3nh YS3010 Paint Color Meter Quality Control
QC Color Paint Matching Spectrophotometer , 3nh YS3010 Paint Color Meter Quality Control
QC Color Paint Matching Spectrophotometer , 3nh YS3010 Paint Color Meter Quality Control
QC Color Paint Matching Spectrophotometer , 3nh YS3010 Paint Color Meter Quality Control
Specifications
Brand Name :
3nh
Model Number :
YS3010
Certification :
CE&RoHS&TUV&FCC&ISO9001
Place of Origin :
Shenzhen China
MOQ :
1pc
Payment Terms :
T/T, Paypal.etc
Supply Ability :
1000pcs/Month
Delivery Time :
2 woks days
Packaging Details :
Standard Instrument Package
Model :
YS3010
Light Source :
Combined LED sources
Sensor :
256 image Element Double Arrays CMOS Image Sensor
Wavelength Range :
400-700nm
Measuring Aperture :
8mm
Color Spaces :
CIE LAB,XYZ.Yxy,LCh,CIE LUV,Hunter LAB
Other Chrometric Data :
YI,WI,TI,MI,Strength,Staining fatness,Cover Ratio
Wholesale :
Welcome
Size :
184*77*105(mm)
Weight :
about 600g
Description

3nh YS3010 Color Measuring QC color spectrophotometer for color matching and quality control

Perfect Partner for color management

YS30 Series Spectrophotometer : Concave-Grating Spectral; USB/Bluetooth dual modes;Swichable Ø8/Ø4 mm Aperture.

YS3010, YS3020,YS3060 grating spectrophotometer are developed by 3nh independently, features with stable performance, precise measurement and powerful functions in leading position of some industry.

YS3060 UV Grating Spectrophotometer:

Full Illuminants +UV, 8mm & 4mm Apertures, SCI & SCE, Bluetooth Comm, High Precision.

YS3020 Grating Spectrophotometer:

Multi-illuminants,Customizable Aperture, SCI& SCE, Bluetooth Comm, High Precision.

YS3010 Grating Spectrophotometer:

4 Illuminants, 8mm Aperture,SCI&SCE, Bluetooth Comm,High Precision.

Quick Details Checking:

SPECIFICATIONS FOR YS3060 & YS3020 & YS3010 Spectrophotometer
Model Items
YS3060
YS3020
YS3010
Optical Geometry
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
Integrating Sphere Size
48mm
Light Source
Combined LED Light, UV Light
Combined LED Light
Spectrophotometric Mode
Concave Grating
Sensor
256 Image Element Double Array CMOS Image Sensor
Wavelength Range
400-700nm
Wavelength Interval
10nm
Semiband Width
10nm
Measured Reflectance Range
10nm
Measured Reflectance Range
0-200%
Measuring Aperture
MAV : Φ8mm/Φ10mm

SAV : Φ4mm/Φ5mm
Customized Aperture: 8mm/4mm/1×3mm
Single Aperture: MAV : Φ8mm/Φ10mm
Specular Component
SCI&SCE
Color Space
CIE Lab, XYZ, Yxy, LCh, CIE LUV, Hunter LAB
Color Difference Formula
ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v, ΔE(Hunter)
Other Colorimetric Index
WI(ASTM E313, CIE/ISO, AATCC, Hunter),
YI(ASTM D1925, ASTM 313),TI(ASTM E313, CIE/ISO),
Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity, 8° Glossiness
Observer Angle
2°/10°
Illuminant
D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
D65, A, C, D50, D55, D75, F2, F7, F11
D65, A, C, D50
Display Data
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
Measuring Time
2.6s
Repeatability
MAV/SCI: ΔE*≤0.03
MAV/SCI: ΔE*≤0.05
MAV/SCI: ΔE*≤0.06
Inter-instrument Error
MAV/SCI: ΔE*≤0.15
MAV/SCI: ΔE*≤0.2
MAV/SCI: ΔE*≤0.4
Measurement Mode
Single Measurement, Average Measurement
Locating Method
Camera View Finder Locating
Battery
Li-ion battery. 5000 measurements within 8 hours
Dimension
L*W*H=184*77*105mm
Weight
600g
Illuminant Life Span
5 years, more than 3 million times measurements
Display
3.5-inch TFT color LCD, Capacitive Touch Screen
Data Port
USB, Bluetooth 4.0
USB
Data Storage
Standard 2000 Pcs, Sample 20000 Pcs
Language
English, Chinese
Operating Environment
0~40℃, 0~85%RH (no condensing), Altitude < 2000m
Storage Environment
-20~50℃, 0~85%RH (no condensing)
Standard Accessory
Power Adapter, Built-In Li-ion Battery, User Guide, PC Software, White and Black Calibration Cavity, Dust Cover
Optional Accessory
Micro Printer, Powder Test Box
Notes: The specifications are subject to change without notice.

Application Industry:

Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

QC Color Paint Matching Spectrophotometer , 3nh YS3010 Paint Color Meter Quality Control

Warranty

All color spectrophotometer and colorimeters have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
Waiting for your inquiry, any more questions I will reply you within 24 hours

Contact Information:

Email: L001@3nh.com

Mobile Phone & WhatsApp & Wechat ID: +8613510310267

Skype: clara.3nh
