Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery
Specifications
Brand Name :
3nh
Model Number :
YG60
Certification :
CE, TUV, FCC, RoHs
Place of Origin :
Shenzhen China
MOQ :
1 Unit
Price :
Please send inquiry
Payment Terms :
T/T
Supply Ability :
1000 Units per Month
Delivery Time :
1-5 Days
Packaging Details :
30*20*10cm, 1kg, with a carrying bag
Measuring Angle :
60°
Measuring Area(mm) :
60°:9x15mm
Measuring Range(GU) :
60°:0~1000
Division Value :
0.1GU
Tolerance :
±0.2, ±0.2%
Data Port :
USB
Description
Product Description

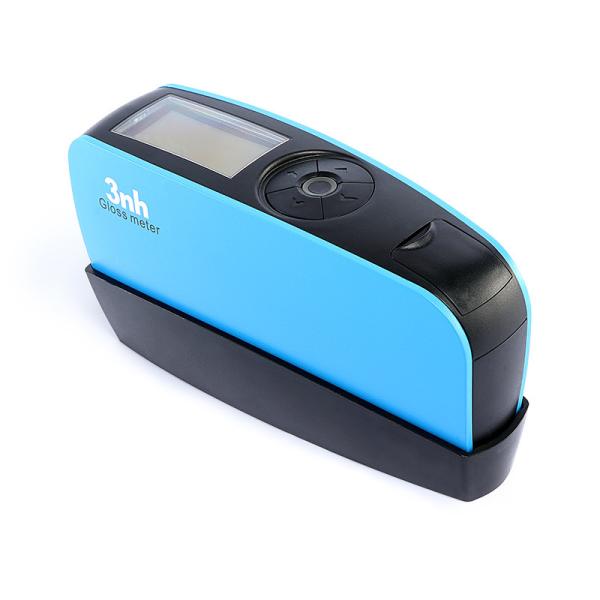

3nh YG60 Gloss Meter single glossy test With measuring angle 60 and AA battery

Specification:

Model YG60 Accuracy gloss meter
Measuring Angle 60°
Measuring Area 60°:9X15
Measuring Range 60°: 0~1000GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU:±0.2GU ;
100~1000GU:±0.2%GU
Accurate Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range (-20-50℃)(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer
Notification: the technical parameter is only for reference

Product Images

FAQ

Frequently Asked Questions

1. Which models are the equivalent models to YG60 Gloss Meter?

Answer: Our YG60 gloss meter is equivalent to BYK4561 Gloss Meter.
2. Are you a trader or a manufacturer?
Answer: We 3nh is a manufacturer, we research and develop, design and produce, market and sell color measuring instruments and gloss meters. Our company and factory are located in Shenzhen which is famous for manufacturing. Welcome to visit us!
3. What's your main market.
Answer: We sell to the global market.
4. How long is your delivery time?
Answer: Generally it is 1-3 working days after the payment confirmed.
5. What is your payment terms?
Answer: The payment term is 100% T/T in advance.
6. What's your minimum order quantity (MOQ)?
Answer: Our MOQ is 1 set. If you order more than 3 sets, we can provide discount.

Our Services

1.24 hours online to ensure quick response to customers' inquiry or online message;

2. Help customers to choose the best suitable machine model;

3. We support OEM and ODM service and 12 months warranty from the purchase date.

Company Information

Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.

Accuracy 3nh Gloss Meter Measuring Angle 60 Degree With AA Battery

PC software

GQC6 software
