Specifications
Brand Name :
3nh
Model Number :
YG268
Certification :
CE ROHS FCC ISO9001
Place of Origin :
Guangdong China
MOQ :
1pcs
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500 units per month
Delivery Time :
2-3 working days
Packaging Details :
Paper box packing
Power :
Electronic
Usage :
Universal Testing Machine,gloss tester,Auto Testing Machine,Gloss Testing Equipment,Wood Testing Instrument
Accuracy :
Conform to JJG 696 standard for first class gloss meter,+/- 1.0 GU,±1.0 gloss unit ( against reference standard ),±1.0 gloss unit,0.2 Gu
Resolution :
0.1GU
Display :
LCD Display
Product name :
Gloss meter,Digital Display Portable Triangle Gloss Meter,high precision digital gloss meter with pc software,Glossmeter
Warranty :
1 Year
Measuring angle :
20° 60° 85°
Application :
Construction Industry,printing ink,metal,stone,plastic
Language :
Chinese and English
Reproducibility :
0.2%(100-1000Gu)0.5%(100-1000Gu)
Description

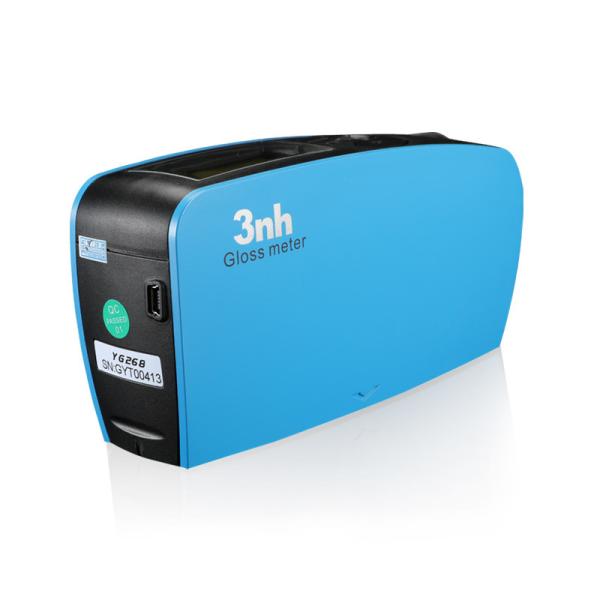

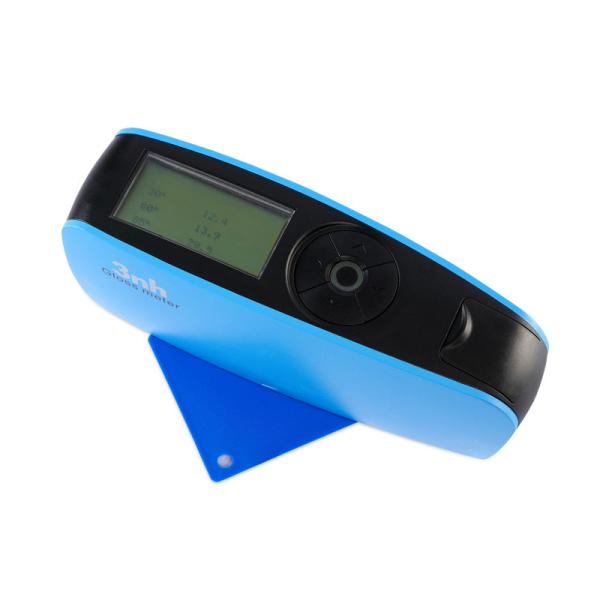

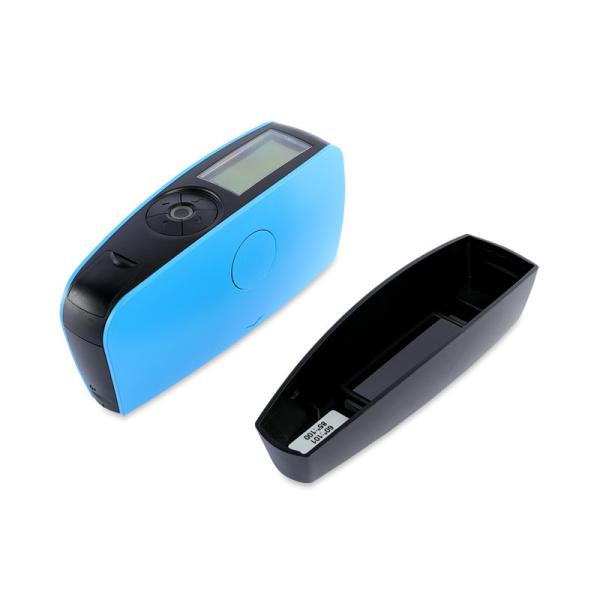

YG268 Tri-angle Gloss Meter

Introduction:

YG268 Tri-angle Gloss Meter is independently developed by Shenzhen 3nh Technology Co., Ltd with independent intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet requirements of JJG696.

YG series gloss meter also features with USB/RS-232 interface and Blutooth 2.1 dual mode.
20 60 85 Degree Tri Gloss Meter Multi Angle Measurement For Gold Silver Platinum Iradium
Product Features:

1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
20 60 85 Degree Tri Gloss Meter Multi Angle Measurement For Gold Silver Platinum Iradium
Application:
Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.
20 60 85 Degree Tri Gloss Meter Multi Angle Measurement For Gold Silver Platinum Iradium
Model YG268 Tri-angle Gloss Meter
Measuring Angle 20° 60°85°
Measurement Range 20°: 0-2000GU
60°: 0-1000GU
85°: 0-160GU
Division Value 0.1GU
Measuring Modes Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate Conform with JJG696 requirements of gloss meter
Auto Power-off Time Within 30s-120s
Long-time Calibration Automatically check and made the calibration
Language Chinese & English
Storage 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Weight About 300g
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Interface USB
PC Software GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range -20-50℃(-4-122° F)
Humidity Range < 85% RH, without condensation

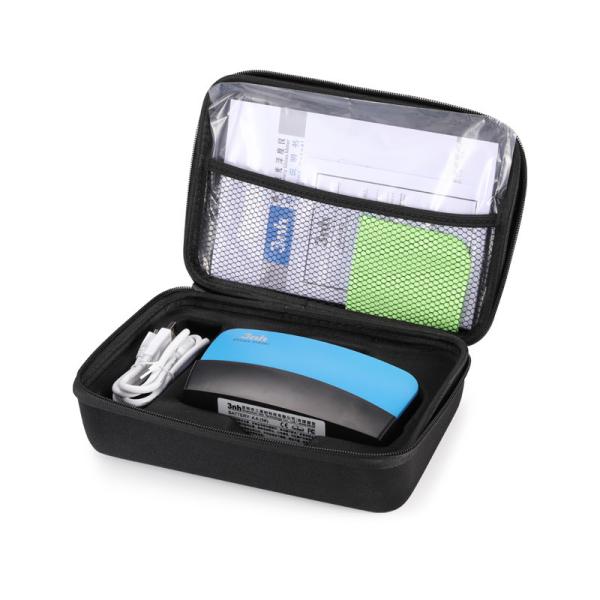

Standard Accessories USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer,Bluetooth
Notification: the technical parameter is only for reference
