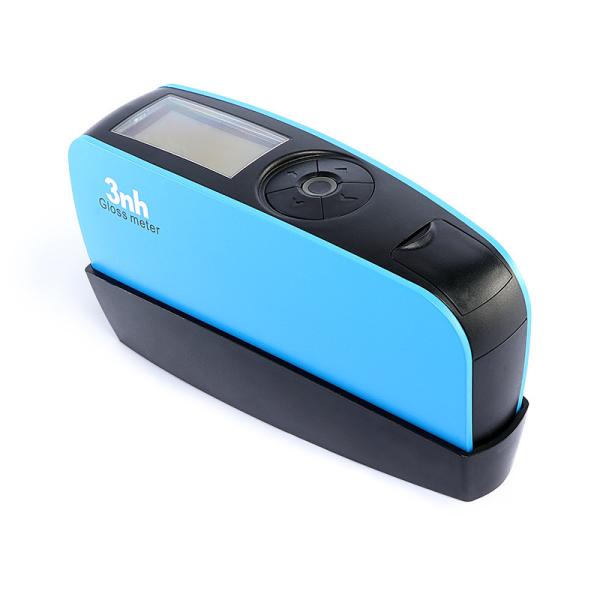

Bluetooth 2.1 2000gu Gloss Test Equipment 3nh Yg268 With PC Software
Bluetooth 2.1 2000gu Gloss Test Equipment 3nh Yg268 With PC Software
Bluetooth 2.1 2000gu Gloss Test Equipment 3nh Yg268 With PC Software
Bluetooth 2.1 2000gu Gloss Test Equipment 3nh Yg268 With PC Software
Bluetooth 2.1 2000gu Gloss Test Equipment 3nh Yg268 With PC Software
Bluetooth 2.1 2000gu Gloss Test Equipment 3nh Yg268 With PC Software
Bluetooth 2.1 2000gu Gloss Test Equipment 3nh Yg268 With PC Software
Bluetooth 2.1 2000gu Gloss Test Equipment 3nh Yg268 With PC Software
Specifications
Brand Name :
3nh
Model Number :
YG268
Certification :
CE, TUV, FCC, RoHs
Place of Origin :
Shenzhen China
MOQ :
1 Unit
Price :
Please send inquiry
Payment Terms :
T/T
Supply Ability :
1000 Units per Month
Delivery Time :
1-5 Days
Packaging Details :
30*20*10cm, 1kg, with a carrying bag
Measuring Angle :
20° 60° 85°
Measuring Area(mm) :
20°: 9×10, 60°:9x15, 85°: 5×38
Measuring Range(GU) :
0~2000
Division Value :
0.1GU
Tolerance :
±0.2, ±0.2%
Data Port :
USB & Bluetooth
Description

3nh yg268 gloss meter multi angles 2000gu gloss test equipment with PC software

Company Information

Shenzhen ThreeNH Technology Co., Ltd / Shenzhen Tilo Technology Co., Ltd . was found in 1998, and we are specializes in the R&D, production and sales of colorimeter, spectrophotometer, color density meter, gloss meter, color light box, color proof table, coating thickness gauge, iso test chart, etc., which is the leading producer in the color and glossy surface measurement field in China. We are also the national high technology enterprise.Till now we have received more than 20 patents and passed CE, ISO 9001, ROHS, FCC, TUV etc certifications.

Product Description

YG Series Specification Parameter
Model YG60S 60°Economic Gloss Meter YG60 60°Accurate Gloss Meter YG268 Tri-angle Gloss Meter
Measuring Angle 60° 60° 20° 60°85°
Measuring Area 60°: 0-200GU 60° 20°: 0-2000GU,60°: 0-1000GU,85°: 0-160GU
Division Value 1GU 0.1GU
Measuring Modes Basic mode Basic mode; Statistic mode; Continuous mode; QC mode
Measuring Time 0.5S
Repeatability 0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU
Accurate Conform with JJG696 second grade requirements of gloss meter Conform with JJG696 first grade requirements of gloss meter
Auto Power-off Time 30s Within 30s-120s
Long-time Calibration / Automatically check and made the calibration
Language Chinese & English
Storage / 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)
Display 2.3 inch white and black screen
Size 160*52*84mm
Power Supply 1pc dry-cell battery(can measure 10000 times) or use USB Charge
Weight About 300g
Interface USB USB & Bluetooth 2.1 version
PC Software / GQC6 QC software can printing testing report and with more extended functions
Operation Temperature Range 0-40℃(32-104° F)
Storage Temperature Range -20-50℃(-4-122° F)
Humidity Range < 85% RH, without condensation
Standard Accessories User manual, calibration plate USB cable, user manual, calibration plate, QC software
Optional Accessories Miniature printer
Notification: the technical parameter is only for reference
Features

1.Elegant Design combined with aesthetics and ergonomics;
2.With auto-calibration function;
3.Meet the first grade requirements of JJG696;
4.Large storage to save over 35000 data;
5.Auto Power-off within optional 30-120 seconds;
6.Comply to ISO2813,ASTM523, GB/T9754;
7.With PC software for quality report, more extend functions;
8.With multi working modes and multi-functions for most customers’ requirements.

Certifications

3nh passed ISO 9001, CE, ROHS, FCC, TUV, SCM CERTIFICATES.

Packaging & Shipping

Shipping Detail:

Package: Alumnium alloy metal box or carton package.
Payment: T/T, Western Union, Paypal , Credit Card
Lead Time: 1-3 workdays
Shipping DHL, Fedex, UPS, EMS,TNT, etc
