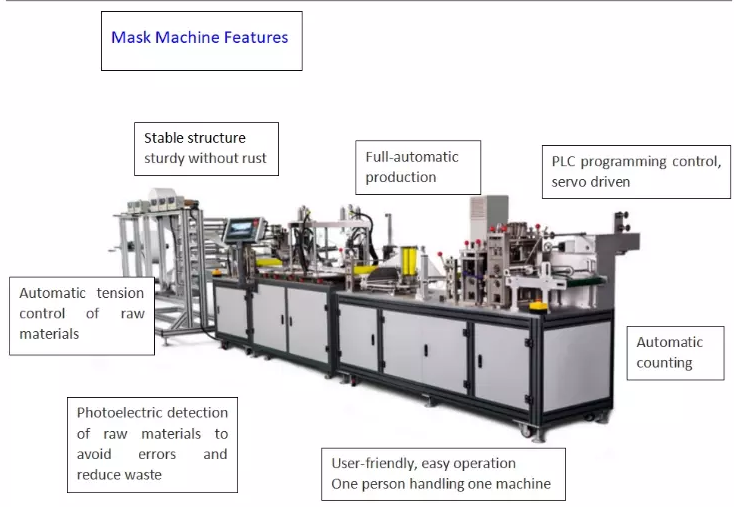

CE Standard N95 Face Mask Making Line High Capacity Fully Automatic

The working process of N95 Mask Machines are as follows: the multi-layer non-woven fabric rolls are subjected to compound roll welding after feeding. Nasal lines are welded after unwinding and cutting. Two rolls of earbands are welded after automatically unwinding and cutting to fixed length. Then masks are folded in half. After ultrasonic welding and fusion, the masks are rolling-cut and formed.

1.The masks made by the machine have great filtration effect, perfectly fitted and are comfortable to wear without causing any pressure.

2. N95 Mask Machine uses PLC, touch screen control and the main conveyor adopting motor transmission, which can achieve precise movement and adjustable speed.

Automatic flat mask making machine with double output

Production efficiency: 90-110ppm;

This machine is mainly used for the automatic forming of flat masks: the whole roll of fabric is driven by rollers after unwinding, and the fabric is automatically folded and hemmed. In the fabric, the two sides are ultrasonically welded to the seal, and then the ultrasonic side seal is cut and formed by a cutter; the mask is conveyed to the two mask earband welding stations through an assembly line, and the final mask is formed by ultrasonic welding; when the mask is made After completion, it is transported to the flat belt line for collection through the assembly line.

1.3 Equipment installation and configuration requirements

(1) Equipment size: 6600mm (L) × 3600mm (W) × 2000mm (H);

(2) Appearance color: sheet metal RAL7035 (Jianhua standard color), unless otherwise specified, follow this standard;

(3) Equipment weight: ≤1800kg, ground load ≤180KG / m

(4) Working power: single-phase equipment 220V, 50HZ, rated power about 10KW;

(5) Compressed air: 0.5 ~ 0.7 MPa, using flow rate of about 300L / min;

(6) Operating environment: temperature 10 ~ 35 ℃, humidity 5-35% HR, no flammable and corrosive gas, no dust (cleanness no less than 100,000)

(7) Operator: 1 person
