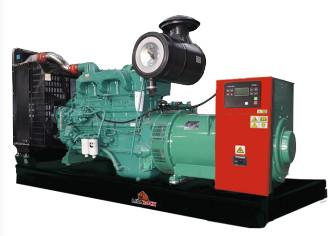

AC Cummins 50Hz Diesel Generating Sets , Portable Quiet Diesel Generator
AC Cummins 50Hz Diesel Generating Sets , Portable Quiet Diesel Generator
Specifications
Brand Name :
LionRock
Model Number :
LRC2500
Place of Origin :
Dongguan China
MOQ :
negotiate
Price :
negotiate
Payment Terms :
TT
Delivery Time :
negotiate
Packaging Details :
export packing
Frequency :
50Hz
Length :
7200
Width :
2500
Height :
2750
Weight :
15500
Fuel Tank :
N/A
Description

Portable Quiet Diesel Generator AC Cummins 50Hz Diesel Generating Sets

Standard features

- Set mount radiator with engine driven fan
- Cooling system standard for 40°C ambient
- Anti-vibration mounts between engine / alternator and baseframe
- Baseframe fuel tank
- Protective grille for fan and rotating parts
- Exhaust bellow and industrial silencer
- 24VDC starter motor and battery
- Generator sets are CE Certified
- Standard 3P manual output breaker
- Coolant and oil drains with valve
- Each LionRock® generating set will go through factory test at 0%, 25%, 50%, 75%, 100% and 110% of rated capacity

Standard and Quality

- All generator sets comply with international standards including ISO8528, ISO3046, IEC60034, BS5000
- Manufacturing standard certified to ISO9001, ISO14001, ISO18001

Rating definition as per ISO8528

- Prime - Output available with varying load for an unlimited time. Average power output is 70% of the prime power rating. Typical peak demand is 100% of prime rated kWe with 10% overload capability for emergency use for a maximum of 1 hour in 12.
- Standby - Output available with varying load during a normal power supply failure. Average power output is 80% of the standby power rating. Typical annual operating time less than 500hours. No overload is available.

Power Ratings at 0.8 power factor
Voltage(V)
Standby

Prime
Maximum current(Amp)
kVA
kW
kVA
kW
380/220
 2500
2000
 - - 3798
400/230
 2500
2000
 - - 3608
415/240
 2500
2000
 - - 3478

Fuel Consumption
Load (%)
Standby
 100 75 50
(L/h)
 500 - - -

AC Cummins 50Hz Diesel Generating Sets , Portable Quiet Diesel Generator

Dimensions
Weight
Fuel Tank
Length (L)
Width (W)
Height (H)
Dry
Baseframe
mm
mm
mm
 kg
litres
7200 2500 2750 15500 N/A

Control System
Technical data
Electrical measurement
- Voltage (P-P, P-N)
- Current
- Frequency
- Power factor
Energy Meter
- kW
- kWh
- kVA
Mechanical measurement
- Water temperature
- Oil Pressure
- Engine speed
- Running hours
- Number of start
- Battery voltage
Protection
Mechanical
- Overspeed
- High coolant temperature
- Low oil pressure
- Start up failure lock out
- Emergency Stop
Electrical
- Over and under frequency
- Over and under voltage
- Overload
- Overcurrent
- Power factor
- Current unbalance
Communication
- USB (Programming)
Control
- Auto/Manual
- Start/stop button
- Alarm/fault acknowledge
- Menu button
- Display navigation buttons
Features
- Automatic mains failure
- Fuel tank content in %
- Oil temperature gauge
- Modbus SNMP
- Modbus TCP/IP Ethernet
- Extended input/output modules
- RS485 Modbus
Alternative control modules
- Wide range of control module options including:
ComAp
Deepsea
Woodward
Smartgen etc.
- Multiple generators parallel as well as parallel with mains power
Soundproof Canopy
AC Cummins 50Hz Diesel Generating Sets , Portable Quiet Diesel Generator
Dimensions and Weights
Length (L): mm
 12192
Width (W): mm
 3000
Height (H): mm
 3600
Weight: kg
 22142
Fuel Tank Capacity: litres
 N/A

Sound Pressure Levels
75% Load
50Hz
Prime: dBA@1m
 96
dBA@7m
 89
dBA@15m
 84

Stainless steel locks and handles on doors
- Black zinc die cast hinges on doors proven to withstand extreme weather conditions
- Zinc plated standard fastener with stainless steel option
- Enclosure made of sheet steel pre-treated with zinc phosphate prior to polyester powder coating
Secure, lockable doors prevent unauthorized access to control panel, fuel fill and battery
- Emergency stop buttons mounted on enclosure exterior surface
- All moving parts including Cooling fan, charging alternator, belt are fully guarded
Hinged doors of 180 deg swing on both sides of the enclosure for easy access and maintenance
- Lube oil and water drains hosed to baseframe side to exterior
- Removable end panels allow access to radiator, exhaust silencer and alternator rear
- Exhaust silencer inside enclosure
Easy Transportable
- Lifting points on both side of baseframe
- Anchor and drag points at baseframe ends
