Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption
Specifications
Brand Name :
SY
Model Number :
X100W2
Certification :
FCC/CE/ROSH
Place of Origin :
China
MOQ :
1
Price :
US$22-US$29/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 pieces per week
Delivery Time :
5-8 working days
Packaging Details :
Standard color box or customized design color box packaging
Button :
Reset/WPS Button
Data Transfer Rate :
Up to 300Mbps
Operating Humidity :
10%~85% Non-Condensing
Operating System :
Windows/Mac/Linux
Power Consumption :
less than 2W
Supported Protocols :
TCP/IP, DHCP, ICMP, NAT, PPPoE
Transmission Speed :
High Speed
Vpn :
PPTP/L2TP/IPSec/OpenVPN
Wireless Security :
WEP/WPA/WPA2
Description

Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption

Technical Parameter

Module Parameters
User interface 1*10/100/1000M RJ45
2.4GWiFi
PON

EPON&GPON mode adaptive

Interface Type:SC-UPC/SC-APC

Transmission distance: 20KM

GPON:upstream 1.25Gbps/downstream 2.5Gbps

Transmitting optical power: 0.5~5dBm

Optical receive sensitivity:>-7~-28dBm

EPON:upstream 1.25Gbps/downstream 1.25Gbps

Transmitting optical power: 0~4dBm

Optical receiver sensitivity:>-7~-27dBm
Ethernet

1*10/100/1000Mauto-negotiation

Full/half duplex mode

RJ45 connector

Auto MDI/MDI-X
100m distance
Size 105mm(L)X85mm(W)X25mm(H)
Environment

Operating temperature:0°C~60°C

Operating humidity:10%~85% non-condensing

Storage temperature:-40°C~80°C

Storage humidity:5%~95% non-condensing
Power supply

12V/0.5A DC

powerinterface size:2.1mm/5.5mm
Power 5W
Management

WEB/TELNET/TR069/OMCI/OAM

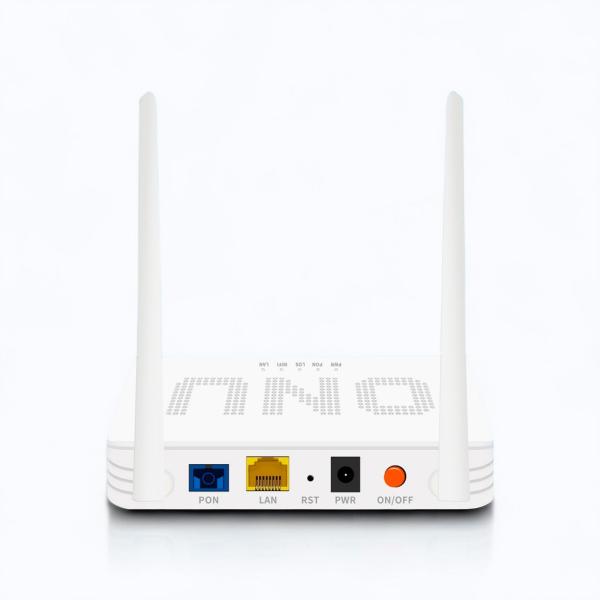

Product Interfaces

Indicator Description
1 POWER Power status On: The ONUis power on
Off: The ONU is Power off
2 PON ONU Register

Blinking: In process of registering to OLT

On: Success to register to OLT

Off: Fail to register to OLT
3 LOS Optical Signals

On: Optical link lower than receiver sensitivity

Off: Optical in normal
4 LAN LAN Port status

Blinking: Data is being transmitted

On:Ethernet connection is normal
Off: Ethernet connection is not set up
5 2.4G WIFI

Blinking: Data is being transmitted

On: Wi - Fi function Opens

Off: Wi - Fi function closes

Ordering Information

Product Model Descriptions
X100W2 1*10/100/1000M Ethernetinterface(RJ45)
1 GPON/EPON adaptiveinterface
2.4G WIFI

Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption

Compact 4G LTE WiFi Router With 12V/0.5A DC Power Supply And 5W Power Consumption

Company Profile
Hunan Sanyi Technology Co., Ltd. located at Changsha, China. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT WiFi router, 4G/5G router, Mesh Router, WiFi 6 Router, Industrial&Enterprise Router, Vehicles Router, AP, Outdoor CPE and LTE CPE. Sayi is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Our main customers are China Mobile, Vivacom in Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine. Sanyi warmly welcome everybody joining in and build win-win cooperation.
FAQ

Q1. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.


Q2. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.


Q3. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.


Q4. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.


Q5. What is your payment term?
A: We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!
