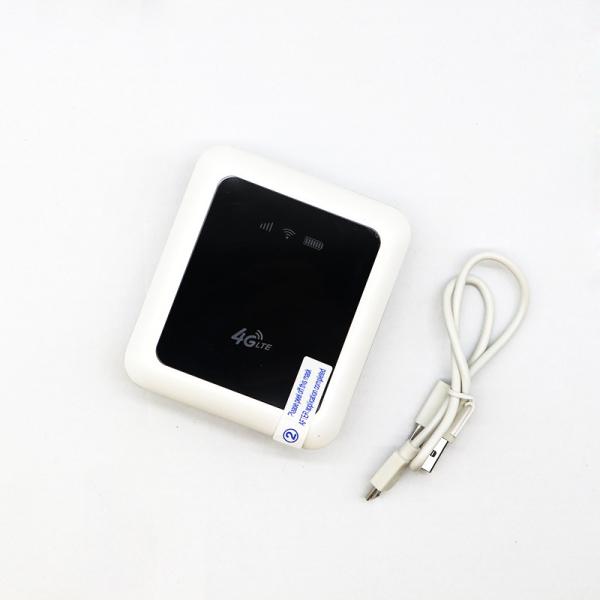

Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security
Specifications
Brand Name :
SY
Model Number :
GW111
Certification :
FCC/CE/ROSH
Place of Origin :
China
MOQ :
1
Price :
US$23-US$27/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 pieces per week
Delivery Time :
5-8 working days
Packaging Details :
Standard color box or customized design color box packaging
Antenna :
2x External Antennas
Encryption :
WPA/WPA2/WPA-PSK/WPA2-PSK
LED Indicator :
Power/WiFi/WAN/LAN
Operating Temperature :
0℃~40℃
Port :
1x 10/100Mbps WAN Port, 3x 10/100Mbps LAN Ports
WiFi Standard :
802.11ac/a/b/g/n
Wireless Standard :
4G LTE
Keyword :
Universal 4g lte wifi router with sim card slot
Description

4G LTE Router with 550MHz CPU, FDD-LTE Cat3, 802.11b/g/n, 2.4GHz Frequency, WEP/WPA/WPA2 Security

MDM9610 Platform GW111 Product Datasheet

Basic Product InformationItem Item Remark
Model 4G LTE Router WiFi hotspot
Platform MDM9610
SA Time 11.2016
Band/Mode FDD-LTE: B1/B3/B5/B7/B8/B20
UMTS:B1/B8
GSM Quad Band
Type Portable hotspot device with LCD or LED Light
Size(mm) 86*76*22mm 123*109*41mm
Weight(g) 158g
System memory NandFlash 1Gb+512Mb
HW Description Item Remark/Supplier
Main CPU or Co-CPU (MHz)
CPU (MHz) 550MHz MDM9610
Air interfaces GSM/GPRS/EDGE DTM (simple class A), multislot class 12
UMTS R99 384 kbps DL / UL
R5 HSDPA 7.2 Mbps DL
R6 HSUPA 5.76 Mbps UL
R7 HSPA+ 21 Mbps DL / 5.76 Mbps UL
R8 DC-HSPA+ 42 Mbps DL / 5.76 Mbps UL
FDD-LTE Cat3 100 Mbps DL / 50Mbps UL
WIFI
Frequency Band 2.4GHz
802.11b/g/n up to 150Mbps Modes supported:
802.11b mode
802.11g only mode
802.11n only mode
802.11b/g only mode
802.11b/g/n mode
802.11n 1x1 (2.4GHz, 20MHz)
User amount Up to 10
AP Features Security modes Open
WEP
WPA-PSK
WPA2-PSK
WPA-WPA2 Hybrid mode (Mixed Mode)
TKIP-CCMP Hybrid mode (Mixed Mode)
WPS 2.0
Hidden SSID supported
Concurrency (FC quality for LE1.0) AP-STA
mSSID (AP-AP) – up to 2 SSID's
STA-STA communication block/allow between two SSIDs
Independent security modes (Open, WEP, WPA, WPA2, WAPI) for concurrency modes
above except WEP in both interfaces
Channel of operation - same channel
Other QoS and PS
WMM
WMM-PS/uAPSD
ERP protection
Coexistence
LTE coexistence (static channel selection)
Data Switching/Forwarding
Switching of packets amongst clients
Support for forwarding data to and from WAN
VPN Pass-through
Interface
Antenna 4G/3G/2G Main antenna
4G MIMO/3G Rx Diversity antenna
WiFi antenna		 Internal
LCD 1.46" 128×128 TFT
USB Micro USB USB 2.0 High Speed
SIM/USIM Card slot Yes Standard 6 PIN SIM card interface, compliant with 3GPP 31.101 and 31.102
Micro-SD Card slot Yes
Size (mm) 86*76*22mm
Weight(g) Around 252g
Button
Power Yes
WPS Yes
Reset Yes
Battery
Lion battery 5200mAh 18650 Lion Battery with PowerBank
Other Description Item
Electrical performance spec
RF Power Spec Class 4 for UMTS/HSPA/LTE;
Class 4 for GSM 850/900;
Class 1 for GSM 1800/1900;
Class E2 for EDGE 850/900/1800/1900
Environmental reliability test condition
Normal Operation 0°C to +45°C
Restricted Operation -10°C to +55°C
Storage -20°C to +70°C
Compliance
ROHS Yes, EU RoHS
JATE Yes
TELEC Yes
PSE Yes
others depend on customer required

Cat 3 2.4GHz 4G Wireless Router 550MHz CPU FDD-LTE WEP WPA WPA2 Security

Recommend Products
Product Application
FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2: Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Q3: Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

Q4. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q5. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!

Q6. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
