Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps
Specifications
Brand Name :
SY
Model Number :
GW103
Certification :
FCC/CE/ROSH
Place of Origin :
China
MOQ :
1
Price :
US$23-US$27/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000 pieces per week
Delivery Time :
5-8 working days
Packaging Details :
Standard color box or customized design color box packaging
Antenna Type :
External Antenna
Button :
Reset/WPS Button
Data Rate :
Up to 300Mbps
Ethernet Port :
1 x 10/100Mbps WAN Port, 3 x 10/100Mbps LAN Ports
Frequency Band :
2.4GHz/5GHz
Network Protocols :
TCP/IP, DHCP, ICMP, NAT, PPPoE
Number of Antennas :
2
Operating Temperature :
0℃~40℃ (32℉~104℉)
Power Supply :
DC 12V/1A
SIM Card Slot :
1 x SIM Card Slot
Wireless Security :
WPA-PSK/WPA2-PSK Encryption
Wireless Standard :
802.11ac/n/g/b/a
Description

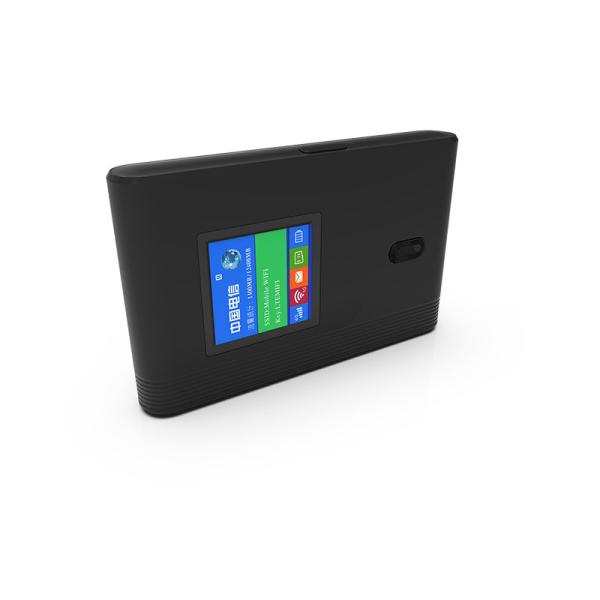

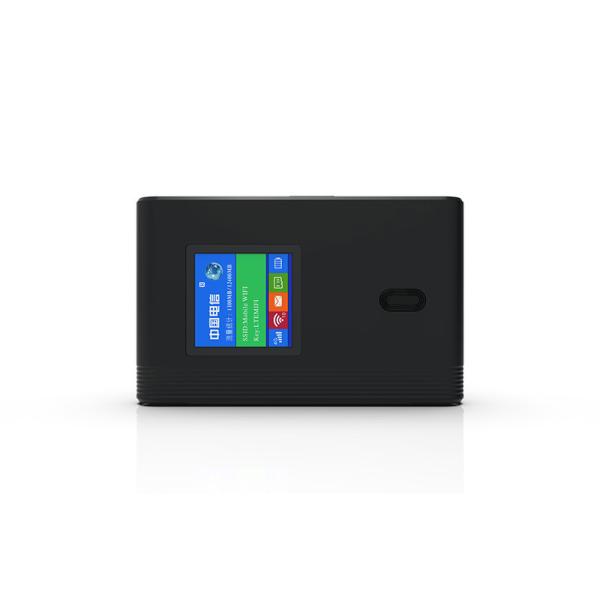

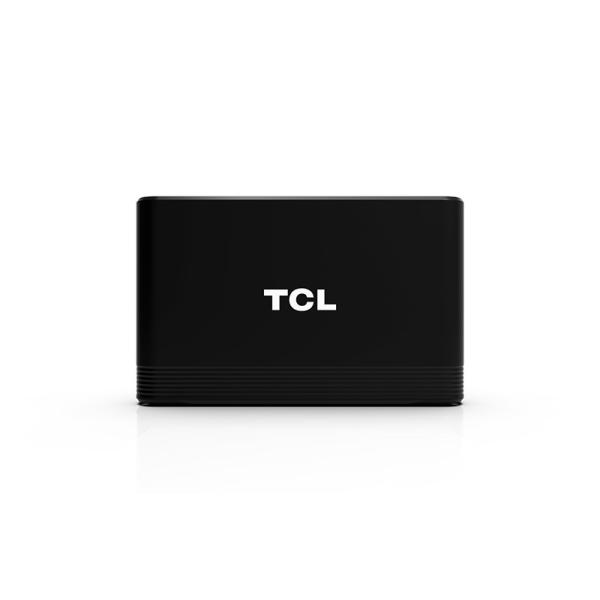

4G LTE WiFi Router GW103-A, Multi-Mode Multi-Band Access, Uplink/Downlink 50/150 Mbps

GW103 series is cost competitive multi-mode indoor MIFI, compliant with 3GPP Release 9, LTE 4G, 3G This multi-mode multi -band MIFI ensures operator to enjoy the cost-benefits over service and share of network.
• Multi-mode multi-band access of LTE 4G FDD, TDD bands
• Adaptive and Reliable Radio Access Modes: 4G, 3G
Multi-band LTE and UMTS
GW103 series can support multiple bands crossing 4G, 3G These spectrums are the most widely used and are prime bands for 4G, 3G deployments globally.
Under appropriate base station supports, GW103 series' speed of LTE FDD is theoretically 50 Mbps at uplink, and downlink speed is up to 150 Mbps. It results in a fast and robust uplink and downlink performance.

Multi Band Access WiFi Router 4G LTE Uplink / Downlink 50Mbps / 150Mbps

Supporting band:
Versions FDD-LTE Band TDD-LTE Band WCDMA Band
GW103-AS
B1,B3,B5
 B40 B1,B5
GW103-E B1,B3,B7,B8,B20 B40 B1,B8
GW103-A B2,B4,B5,B7 NA B2,B4,B5
GW103-J B1,B3,B8,B18,B19 B26 B1,B8
GW103-M B1,B3,B8 B38,B40,B41 B1,B8
Hardware Specifications
Feature
Description Comments
CPU
ZX297520V3
Standard
3GPP Release 9
UE Category
CAT.4
Wi-Fi
2.4 GHz
802.11 b/g/n compliant
Display mode
1.45 inch LCD Optional screen
Battery capacity 2000mAh
Usage time 6-8 hours battery life, 72 hours standby
LED Indicators Power Wi-Fi/ Internet /Signa Strength
SIM 3FF USIM support 1.8V / 3.0V
Power Button Tact switch x1
Reset Button Tact switch x1
Power Supply Input: Universal range 100~240V AC; Output: 5V/ 1A DC Micro USB length 30cm
Optional.
Extra cost required

ID Specifications
Dimension
96.0*60.4*14.5mm
Weight
99g

RF Specifications
Feature
Capability
Comments
Min Typ Max Unit
LTE Max Transmit Power
 22 dBm
Compliant with 3GPP with margin
LTE Receiver Sensitivity (FDD) -93 dBm Compliant with 3GPP with margin
LTE Antenna Support
Frequency
 703 2690 MHZ
Wi-Fi Channel @ 2.4GHz
Ch 1~13
2.4GHz
Wi-Fi Channel BW
20/40

MHZ
Wi-Fi Power level
 14 dBm 11b
13 dBm 11g
11 dBm 11n
Wi-Fi Sensitivity 11n
≤- 69
dBm

Environmental Specifications
Feature
Capability
Comments
Min
 Typ Max Unit
Operating temperature 0 40
℃
Storage temperature -20 45
℃
Operating humidity 10 85 %
Storage humidity 10 85 %
EMC Specifications
Feature Standard Capability Comments
Immunity to ESD EN 61000 -4-2 Compliant Air +/8 KV; Contact +/-4KV
Immunity to burst EN 61000 -4-4 Compliant L/N/L-N+/-1KV
Immunity to surge EN 61000 -4-5 Compliant L-N+/-1KV
Immunity to Conducted
RF disturbances		 EN 61000 -4-6 Compliant 0.15-80 MHz
Immunity to Voltage Dips
and short interruption		 EN 61000 -4-11 Compliant
Harmonic current
emissions 		EN 61000 -3-2 Compliant
Voltage fluctuations and
flicker 		EN 61000 -3-3 Compliant
Conducted emission test,
class-B 		EN 55022 Compliant 0.15-30 MHz
Package Content
Item
Description
Remarks
GW103 MIFI
 X 1
USB cable
 X 1 5V 1A
Manual book X 1
Company Profile
Hunan Sanyi Technology Co., Ltd. located at Changsha, China. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT WiFi router, 4G/5G router, Mesh Router, WiFi 6 Router, Industrial&Enterprise Router, Vehicles Router, AP, Outdoor CPE and LTE CPE.
Sayi is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Our main customers are China Mobile, Vivacom in Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine. Sanyi warmly welcome everybody joining in and build win-win cooperation.
FAQ

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

Q3. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.

Q5. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!

Q6. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
