Specifications
Brand Name :
SY
Model Number :
GW132
Certification :
FCC/CE/ROSH
Place of Origin :
China
MOQ :
1
Price :
US$23-US$27/PC
Payment Terms :
L/C, T/T
Supply Ability :
3000 pieces per week
Delivery Time :
5-8 working days
Packaging Details :
Standard color box or customized design color box packaging
Antenna :
2x External Antennas
Data Rate :
Up to 300Mbps
Interface :
1x WAN/LAN Port, 1x USB Port
LED Indicators :
Power, WAN, WLAN, LAN
Power Supply :
DC 5V/2A
Security :
WPA/WPA2/WEP
Storage Humidity :
5%~90% RH non-condensing
Storage Temperature :
-40℃~70℃
WiFi Standard :
802.11b/g/n
Description

4G LTE CPE WiFi Router, MT7628 Platform, 802.11b/g/n, 300Mbps

Hardware specification
Main CPU MT7628
Memory DDR2 64MB
FLASH SPI 8MB
Protocol IEEE802.11b/802.11g/802.11n/802.3/802.3u
Wi-Fi speed 2.4g 300Mbps
Frequency 2.4GHZ
Antenna

2*3dB 2.4G *2R2 internal antenna

2*5bB 4G*2R2 external antenna

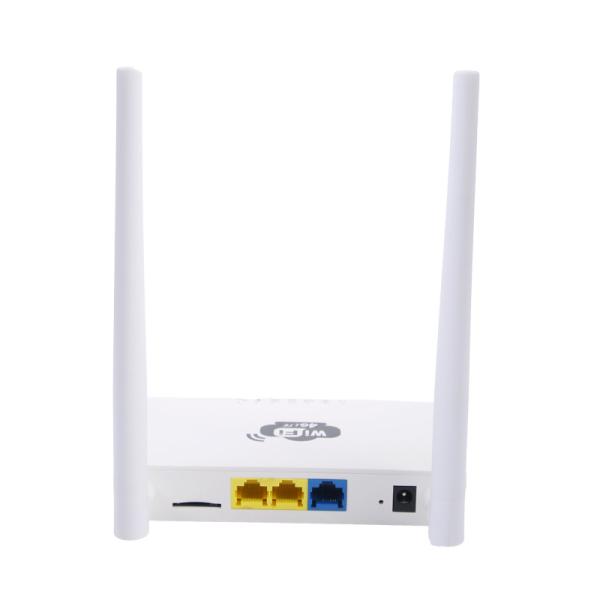

Port

1*Sim card port

1*Wan

2*Lan

1*DC port
LED Power, 2.4G wireless, WAN, LAN1, LAN2, 4G network, network data
Button 1*Reset button
AP adaptor DC 12V/1A
Max power consumption <10W
Size/Color

Size: 140*85*24MM

Color: White/Black (Accept OEM)
4G Bands

Item: CP602

Chipset: MDM9215

FDD-LTE:B1,B2,B4,B5,B8,B17

WCDMA:B1,B2,B4,B5,B8

GSM:850,900,1800,1900
Firmware specification
WAN Interface dynamic IP, static IP, 3G (4G) dialing
Working Mode

AP;

ROUTER;
DHCP server

DHCP server

Client list

Static address allocation;
Support OS SDK,openwrt, LINUX
Virtual server

Port forwarding

DMZ support
Security

Port- (Protocol-) based filter

MAC-based filter
URL-based filter
DDNS Support
VPN Tunneling

Support
Bandwidth control support Support
Static routing Support
System log Support
Other function Mac address clone
Profile import and export
Web software upgrade
Others
Working Environment Working temperature: 0 ° C to 40 ° C (No Congeal);
Storage temperature: -40 ° C to 70 ° C (No Congeal);
Operating humidity: 10% to 90% RH
Storage humidity: 5% to 90% RH
Accessories 1* User manual
1* Power adapter (national standard 12V/1A, wire length 1.5M)
Packing Neutral English packaging
Product net weight 0.2 KG
Total weight 0.35 KG

WiFi LTE 4G Wireless Router CPE MT7628 Platform 802.11b/g/n 300Mbps

WiFi LTE 4G Wireless Router CPE MT7628 Platform 802.11b/g/n 300Mbps

WiFi LTE 4G Wireless Router CPE MT7628 Platform 802.11b/g/n 300MbpsWiFi LTE 4G Wireless Router CPE MT7628 Platform 802.11b/g/n 300MbpsWiFi LTE 4G Wireless Router CPE MT7628 Platform 802.11b/g/n 300Mbps

Product Application

FAQ

Can you printing Customer logo on products?
Yes, we can printing your logo on products.

Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

Do your products meet our standards?
Yes, almost all our products have CE,ROHS,FCC,etc.

How to proceed an order?
Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.

How do you ship the goods and how long does it take to arrive?
We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
