GW245 Commercial 4G Router Multi Mode LTE / UMTS / 3G 300Mbps
GW245 Commercial 4G Router Multi Mode LTE / UMTS / 3G 300Mbps
GW245 Commercial 4G Router Multi Mode LTE / UMTS / 3G 300Mbps
GW245 Commercial 4G Router Multi Mode LTE / UMTS / 3G 300Mbps
GW245 Commercial 4G Router Multi Mode LTE / UMTS / 3G 300Mbps
GW245 Commercial 4G Router Multi Mode LTE / UMTS / 3G 300Mbps
Specifications
Brand Name :
SY
Model Number :
GW245-A
Certification :
FCC/CE/ROSH
Place of Origin :
China
MOQ :
1
Price :
US$19-US$22/PC
Payment Terms :
L/C, T/T
Supply Ability :
3000 pieces per week
Delivery Time :
5-8 working days
Packaging Details :
Standard color box or customized design color box packaging
Antenna Type :
External
Data Rate :
300Mbps
Frequency Band :
2.4GHz/5GHz
Humidity :
10%~90% (Non-condensing)
Network Interface :
4 x 10/100/1000Mbps LAN Ports
Number of Antennas :
2
Operating Temperature :
-20℃~+55℃
Power Consumption :
12W
Power Supply :
12V/1A
Security Protocols :
WPA/WPA2/WEP/802.1x/TKIP/AES
Storage Temperature :
-40℃~+70℃
Wireless Protocol :
802.11ac/a/b/g/n
Description

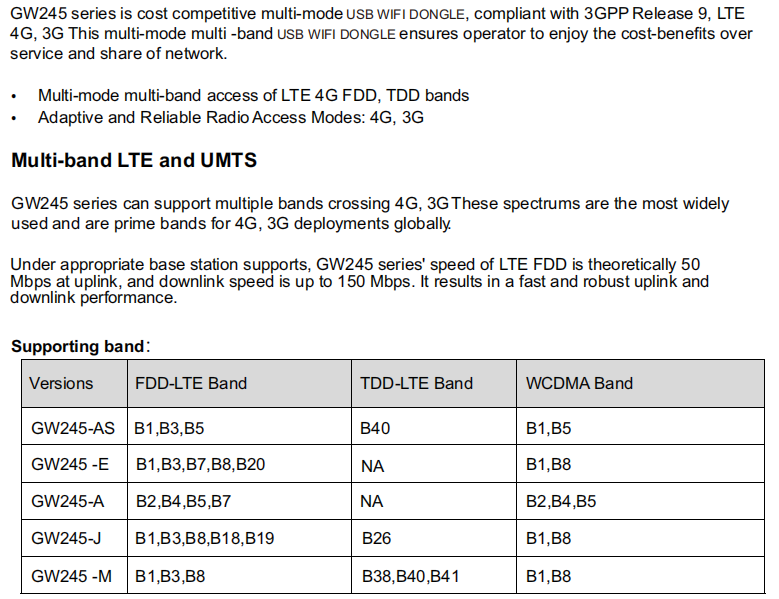

GW245 4G Router: Multi-Mode & Multi-Band, LTE/UMTS/3G, Adaptive & Reliable!
GW245 Commercial 4G Router Multi Mode LTE / UMTS / 3G 300Mbps
Hardware Specifications
Feature Description Comments
CPU ZX297520V3
Standard 3GPP Release 9
UE Category CAT.4
Wi-Fi 2.4 GHz 802.11 b/g/n compliant
LED Indicators Wi-Fi/Signa
SIM 4FF USIM support 1.8V / 3.0V
Reset Button
Tact switch x1
Power Supply
USB input: 5v-1a,
electric power 2W
Optional.
Extra cost required
ID Specifications
Dimension 88*28*12.3mm
Weight 25g

RF Specifications
Feature
Capability
Comments
Min Typ Max Unit
LTE Max Transmit Power 22 dBm Compliant with 3GPP with margin
LTE Receiver Sensitivity (FDD) -93 dBm Compliant with 3GPP with margin
LTE Antenna Support
Frequency
 703 2690 MHZ
Wi-Fi Channel @ 2.4GHz
Ch 1~13
2.4GHz
Wi-Fi Channel BW
20/40
 MHZ
Wi-Fi Power level 14 dBm 11b
13 dBm 11g
11 dBm 11n
Wi-Fi Sensitivity 11n
≤- 69
 dBm

EMC Specifications
Feature Standard Capability Comments
Immunity to ESD EN 61000 -4-2 Compliant Air +/8 KV; Contact +/-4KV
Immunity to burst EN 61000 -4-4 Compliant L/N/L-N+/-1KV
Immunity to surge EN 61000 -4-5 Compliant L-N+/-1KV
Immunity to Conducted
RF disturbances		 EN 61000 -4-6 Compliant 0.15-80 MHz
Immunity to Voltage Dips
and short interruption		 EN 61000 -4-11 Compliant
Harmonic current emissions EN 61000 -3-2 Compliant
Voltage fluctuations and
flicker		 EN 61000 -3-3 Compliant
Conducted emission test,
class-B		 EN 55022 Compliant 0.15-30 MHz

GW245 Commercial 4G Router Multi Mode LTE / UMTS / 3G 300Mbps

Environmental Specifications:
Operating temperatur: 0 ~ 40℃
Storage temperature: -20 ~ 45℃
Operating humidity: 10 ~ 85%
Storage humidity: 10 ~ 85%

Software Specifications
Networking
Ipv4: Support
Ipv6: Support
Ipv4/ v6 dual stack: Support
NAT Mode: Support (customizable)
DHCP Server: Support
NTP Client: Support
HTTP Server: Support (customizable)
Dynamic NAT: Support (customizable)
Manual APN configuration: Support
IP address reservation from DHCP IP pool: Support
Check status of DHCP IP address pool: Support
DHCP IP Pool Modification: Support
DHCP Subnet mask modification: Support
DNS modification: Support
SMS over SGs Func at LTE
SMS's receiving and reading
Package Content
GW245 USB WIFI DONGLE X 1
Manual book X 1
Company Profile
Hunan Sanyi Technology Co., Ltd. located at Changsha, China. Professional in R&D and producing network devices, specially for processing OEM/ODM. Products include openWRT WiFi router, 4G/5G router, Mesh
Router, WiFi 6 Router, Industrial&Enterprise Router, Vehicles Router, AP, Outdoor CPE and LTE CPE.
Sayi is also a Wi-Fi coverage service provider, provides the solution for hotel, school, hospital, enterprise, airport and vehicle field. We have built a long term cooperation with Mediatek, Broadcom and Qualcomm, capably offering good quality products and fast after-sale service to our clients. Our main customers are China Mobile, Vivacom in
Bulgaria, Sprint, T-Mobile, AT&T in USA and Smart in Philippine.
Sanyi warmly welcome everybody joining in and build win-win cooperation.
FAQ
Can you printing Customer logo on products?
Yes, we can printing your logo on products.

Do you provide PCBA board order only?
Of course, as a OEM/ODM manufacturer, we can provide PCBA in a short time with good quality.

Can you desin products as per customer's requirements?
Yes, of course. We have our own R&D department, we have ability to design and produce at same time.

How do you ship the goods and how long does it take to arrive?
It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

How to proceed with an order?
Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you!
