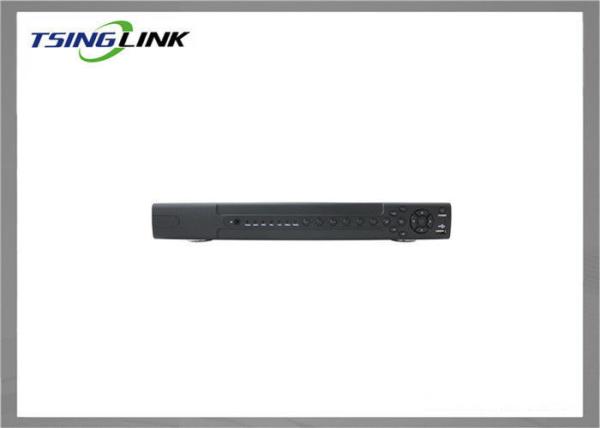

remote control mouse 12V power supply 32CH CCTV DVR cctv kit with 2 HDD
remote control mouse 12V power supply 32CH CCTV DVR cctv kit with 2 HDD
Specifications
Brand Name :
Tsinglink
Model Number :
TSR200-D-32N-A
Certification :
CE FCC ROHS ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD$171.00-190.00 /set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000 sets/M
Delivery Time :
7-15 working days
Packaging Details :
38.5*33.5*11cm
Storage :
2 pcs SATA 4T hard disk
Size :
38.5*33.5*11cm
Recording Resolution :
1080P/720P/D1
GW :
2.55KG
Coding :
H.264
Power Supply :
12V
Interface :
Wired net/USB/485
Hdd :
Max 8TB/HDD
Ip camera input :
32 channel
Description

12V Power Mobile Wireless Intelligent Remote Control large Space Storage HD Network 32CH NVR

It supports up to 32-channel network camera input and hundreds of major-brand network camera connections. Combining with cameras, it can realize the local access, storage, and playback of high definition videos, and also can access TsingLink iCVS cloud video management platform . Realizing the high definition transmission and constructing large networking platform under the condition of avoiding high network construction costs are important parts of "high-definition, wireless, intelligent" video surveillance. The product can be widely used in the applications of finance, public security, troops, water conservancy, electric power, building site, gas station, etc.

Key features
- Support up to 32-channel 1080P HD network camera input
- Support ONVIF network camera connection
- Locally support up to 8T hard disk storage space
- Support HDMI/VGA output
- Support OSD overlays camera information
- Support preview and playback image
- Support holiday video recording configuration
- Support redundancy recording

-Support parallel preview in different channel under the condition of 1/4/9/16/25/36

multi-division display
- Support alarm query and video document playback
- Support query, playback and backup video documents according to event
- Support NTP, PPPoE, UPnP and other protocols

Specifications

Categories HD Hybrid DVR HD NVR
Video
Coding H.265
Input 32 channel AHD 32 channel IP HD
Output 1 channel VGA output; 1 channel HDMI output
Recording Resolution 1080P/720P/960H/VGA/D1
Stream Support dual stream
Audio
Input Support 2 channel RCA input
Output Support 1 channel RCA output
Storage
Recording Format TAV
Hard Disk Support 8 PCS hard disk storage, max 6T each
Interface
Wired Net Support one channel
USB Support 2 channel
485 Support 2 channel
Power Supply
Input 12V
Operation
Remote Control Support OSD menu remote control
Mouse Support mouse operation
Physical Button Support physical shortcut key
General SPC
Size 385mm(L)x335mm(W)×11mm(H)
Working Temp. -20ºC~50ºC
Working Humidity 10%~90%
