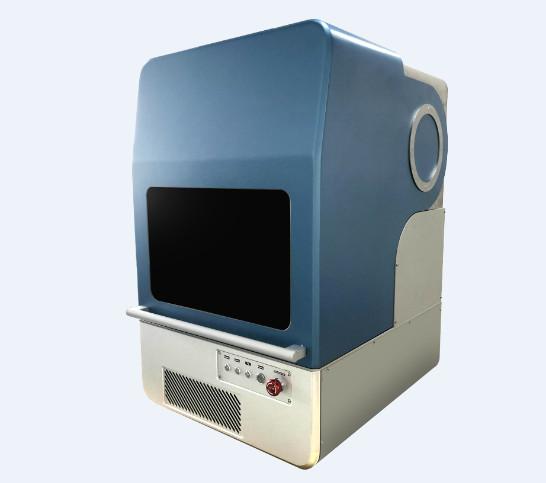

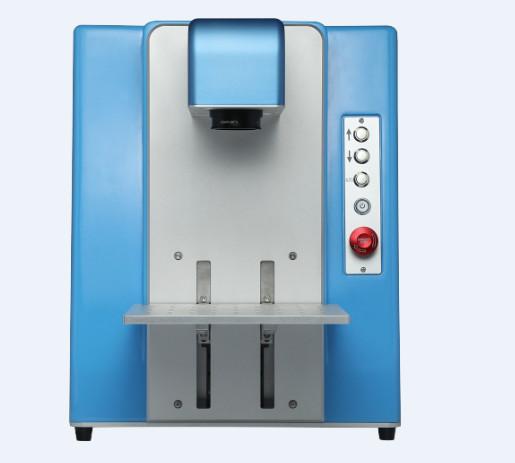

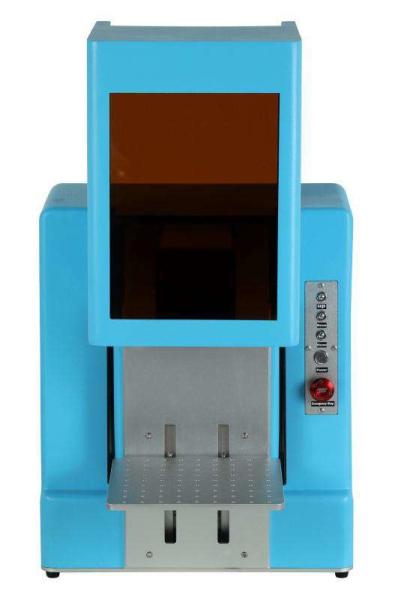

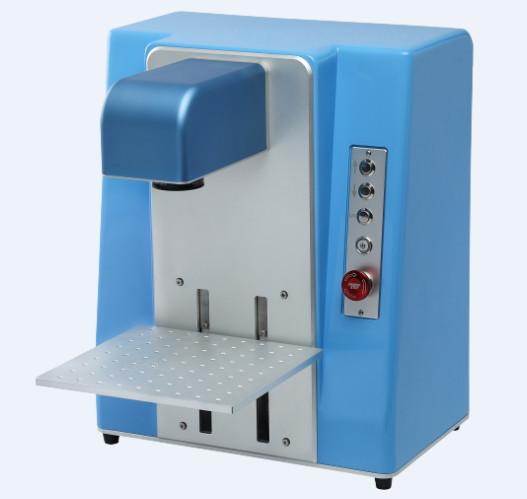

High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength
Specifications
Brand Name :
MRJ-Laser
Model Number :
MRJ-FL-C
Certification :
CE
Place of Origin :
China
MOQ :
negotiable
Price :
Negotiable
Packaging Details :
custom
Payment Terms :
T/T，paypal
Model :
20W
Laser Power :
1064nm
Laser Wavelength :
M2<1.6
Beam Quality :
20-80KHz
Repetition FREQ :
110mmx110mm
Marking Field :
≤1.2mm
Description

High Speed Galvo Scanner Fiber Laser Marking Machine 30W 1064nm Wavelength

Product Performance Parameters

Model KR-FL-30
Laser Power 30W
Laser Wavelength 1064nm
Beam Quality M2<1.6
Repetition FREQ. 20-80KHz
Marking Field 110mmx110mm
Marking Depth ≤1.2mm
Marking Line Speed ≤14000mm/s
Min. Line Width 10um
Min. Character 0.15mm
Repetition Precision ±0.005mm
Power Consumption ≤800w
Maintenance-free Time 100,000 hours
Input Power Single Phase 110V/220V/50-60Hz
Cooling Method Air Cooling

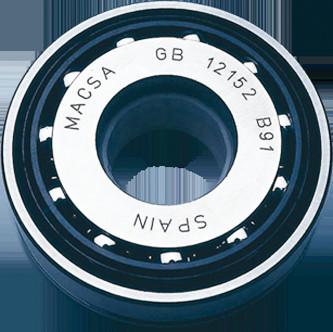

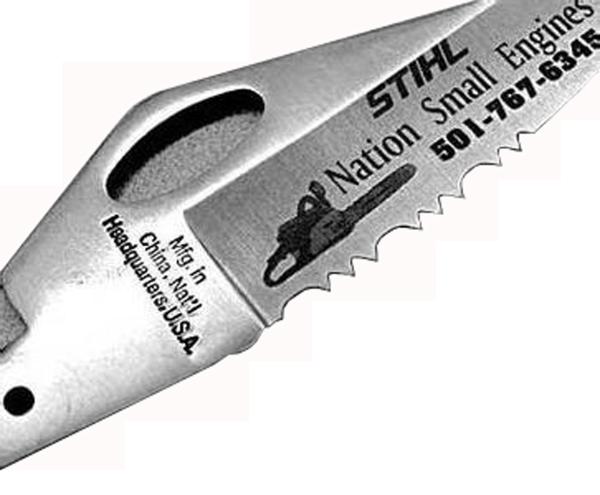

Sample:

Equipment Introduction:

KR-FL series Mini desktop intelligent fiber laser marking machine is developed by the world’s most advanced laser technology;

Integrated and professional engineering sealing design, stable and beautiful structure, high marking speed, high repeat positioning accuracy;

Whole machine with small size, light weight, it's the world's smallest 30W desktop laser marking machine;

Fiber Laser Marking Machine System Characteristic:

Fiber laser has excellent beam quality and high precision marking effect;

Fixed high integration marking head, with auto focus function to achieve fast and accurate fixed focus;

Core components are optimally designed with electromagnetic compatibility, with high signal-to-noise ratio and strong anti-interference ability;

Unique industrial design structure, equipped with operating platform and protective cover, safer operation.

Features Fiber Laser Marking Machine:

1. Fiber laser(German IPG brand or China fiber Raycus laser optional).
2.High speed galvo scanner(import or china brand optional).
3.No maintenance laser source: service time 100,000 hours.
4. Higher precision, faster speed.
5. Small size, low power consumption.
6. Red light preview: show the marking position before lasering.
7. Notebook with Powerful software.
8. User friendly interface, easy operation.
