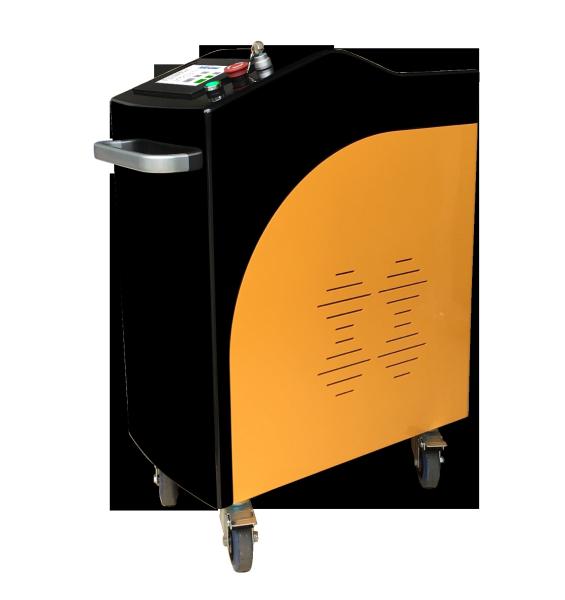

Air Cooling 120W Laser Metal Cleaning Machine Portable With Ergonomic Design
Air Cooling 120W Laser Metal Cleaning Machine Portable With Ergonomic Design
Specifications
Brand Name :
MRJ-Laser
Model Number :
MRJ-FL-C120
Certification :
CE
Place of Origin :
China
MOQ :
negotiable
Price :
Negotiable
Packaging Details :
custom
Payment Terms :
T/T，paypal
Input Power :
Single-phase 220VAC ± 10%, 50-60Hz
Power Consumption :
120w
Cooling Method :
Air Cooling
Touch Screen :
7 inch
Laser Wavelength :
Fiber Laser 1064nm
Optional Accessory :
Hand-held / Automated
Description

Customizable Portable Laser Rust Cleaning Machines With Ergonomic Design

KR 60W Metal Laser Cleaning Machine

Model No. KR-FL-C60
Laser Power 60W
Laser Wavelength Fiber Laser 1064nm
Pulse Energy 1.5mJ
Focal Length F=160mm / F=254mm(Customizable)
Clean Head Weight 2.5±0.1kg
Touch Screen 7 inch
Cable Length 3.0m(Customizable, up to 20m)
Scan Length 1-100mm(Customizable)
Scan Width 1-20mm(Customizable)
Working Temperature 0℃-50℃
Storage Temperature ﹣10 to﹢60℃
Operating Humidity 10% to 90%
Machine Weight 35±0.5kg
Machine Size 715*481*564mm
Cooling Method Air Cooling
Power Consumption 500W
Input Power Single-phase 220VAC ± 10%, 50-60Hz
Optional Accessory Hand-held / Automated

Machine introduction

Laser Rust Cleaning Machines are a new generation of industrial surface cleaning laser systems. It adopts the advanced laser source, laser optical scanners and control system to meet the requirements of metal surface cleaning process.

Contaminant

The bonding force between the contaminant and the surface is mainly covalent bond, double dipole, capillary action, hydrogen bond, adsorption force and electrostatic force. Among them, capillary force, adsorption force and electrostatic force (Figure 1) are the most difficult to destroy. Note: capillary force from a thin liquid layer (such as atmospheric humidity) in the particle and the surface of the primary layer and the small gap between the cohesion; adsorption force is the main adhesion of micron pollutants

Principle

1 in the solid surface to produce a mechanical resonance phenomenon, is the surface of the dirt layer or condensation debris;

2 the surface dirt layer is heated and expanded, so as to overcome the adsorption force of the basic material to the dirt particles and the surface of the object is separated from the surface of the object;

3 instant to make the dirt molecules evaporate, gasification or decomposition
