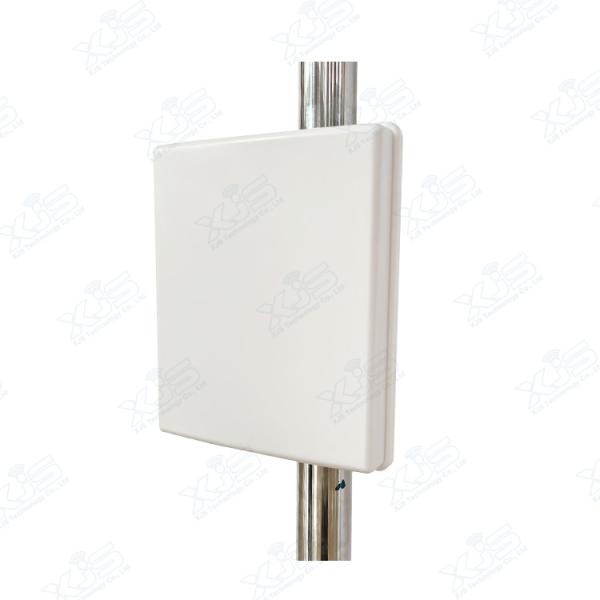

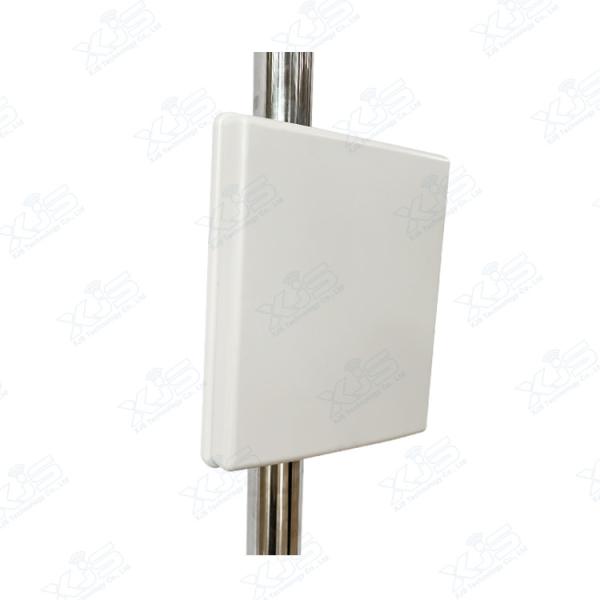

2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna
2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna
2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna
2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna
2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna
2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna
2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna
2.4/5GHz 14dBi Directional Panel Antenna MIMO High Gain Dual Band WiFi Antenna
Specifications
Brand Name :
XJS
Model Number :
TDP-2458-14
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
20
Price :
USD 72-82
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000+PCS+month
Packaging Details :
box package
Freq. Range :
2400-2500MHz/5725-5850MHz
Gain: :
14dBi
H Beamwidth :
68°/15°
V Beamwidth :
65°/15 °
Polarization :
Vertical
F/B Ratio :
≤25dB
VSWR :
≤1.5
Impedance :
50Ω
Connector :
N-female
Dimensions :
234 x 194 x 35mm
Description

Dual Band 2.4/5GHz 14dBi Directional Panel Antenna Outdoor MIMO High Gain Dual Band WiFi Antenna

The TDP-2458-14 is a high performance dual-band external panel antenna which combines high gain 14dBi. Its dual-band wifi design makes it suitable for applications in the 2.4GHz (2400-2500 MHz) and 5.8 GHz (5725-5850 MHz) band which and eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.

We welcome customized dual band wifi antenna SMA or N-Female connector type!

Features

  • Dual band: 2.4 GHz and 5.8 GHz
  • Dual feed via (2) Integral N-Female Connectors
  • Includes mast mounting hardware
  • All weather operation

Application

  • Homeland Security and Public Safety Services: Fire, Police, Security
  • 802.11a, 802.11b, 802.11g, 802.11n and 802.11ac access points and routers
  • WiFi Systems
  • WiMAX Technology
  • Wireless Internet Provider "cell" sites​

Electrical Specifications

Frequency Range 2400-2500/5725-5850 MHz
Gain (dBi) 14 dBi
Horizontal Beamwidth 68°/15°
Vertical Beamwidth 65°/15°
VSWR <1.5
Polarization Vertical
F/B Ratio ≥25db
Impedance 50Ω

Mechanical Specifications

Connector N-female

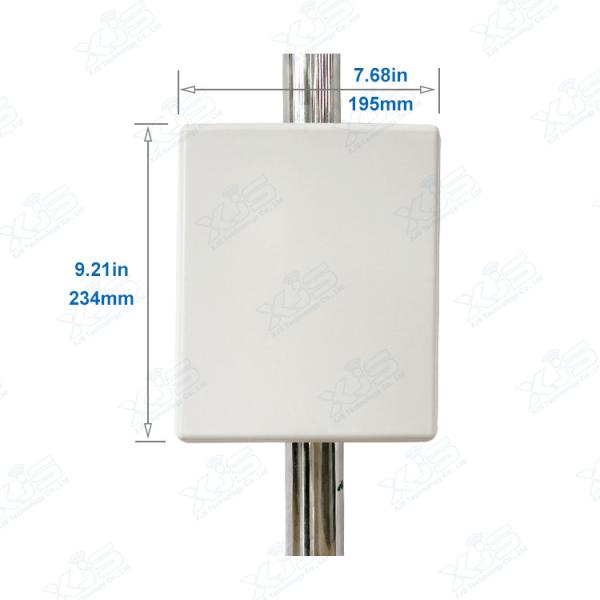

Dimensions 234 x 194 x 35mm
Weight (Kg) 1.6 kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm
