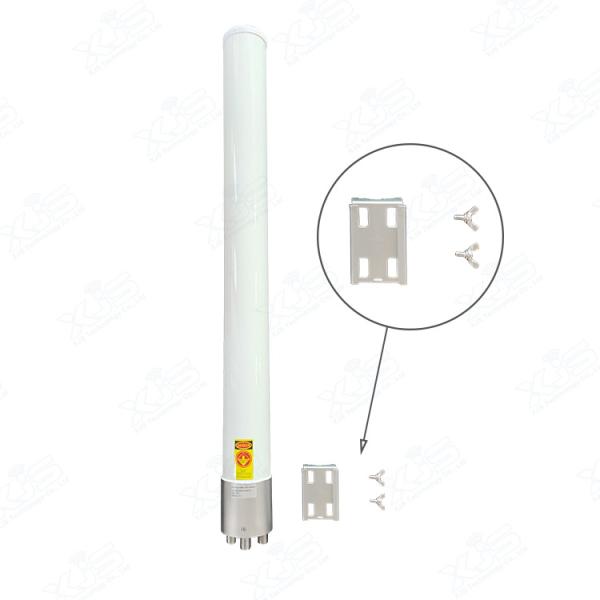

2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna
2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna
2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna
2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna
Specifications
Brand Name :
XJS
Model Number :
TQO-2458-10HV
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
2
Payment Terms :
Western Union, L/C, T/T
Packaging Details :
carton package
Frequency :
2400-2500MHz/5150-5850MHz
Gain :
10 dBi
H Beamwidth :
360°
V Beamwidth :
21°
Polarization :
H+V
Dimensions :
Φ75x850mm
Max. Power :
50W
Lightning Protection :
Dc Ground
Description

2.4/5GHz Dual Band MIMO Antenna 10dBi High Gain 9dBi Long Range Omni directional Antenna

The TQO-2458-10HV is a professional high gain dual band omnidirectional base station Wi-Fi antenna designed and optimized for the 2.4GHz and 5.8GHz frequency. This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.

The TQO-2458-10HV construction features a heavy-duty ABS radome for durability and aesthetics. Designed to operate in the harshest of environments, the TQO-2458-10HV far exceeds other omnidirectional antennas.

Applications

  • 5.8 GHz UNII and ISM applications
  • 2.4/5.8 GHz IEEE 802.11a/b/g and 802.11ac applications
  • 2.4GHz Wi-Fi applications
  • Point-to-multipoint applications
  • Wireless video system

Features

  • ​Integral N-Female connector
  • Twin heavy duty steel mounting brackets and u-bolts
  • All weather operation
  • Fiberglass radome
  • Heavy duty industrial grade design
  • 4*4 MIMO-multi input and multi output

Electrical Specifications

Frequency Range 2400-2500 MHz/5150-5850MHz
Gain (dBi) 10 dBi
Horizontal Beamwidth 360°
Vertical Beamwidth 10°
VSWR <1.5
Polarization Horizontal and Vertical
Impedance 50Ω

Mechanical Specifications

Connector Customized
Dimensions Φ75x860mm
Weight (Kg) 3.50 kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

Radiation Patterns

2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna

RF Antenna Patterns

2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna

2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna

2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna

2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna

Antenna Packing

2.4/5GHz Dual Band MIMO Antenna 10dBi 9dBi Long Range Omni Directional Antenna
