DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna 698-2700 MHz
Specifications
Brand Name :
XJS
Model Number :
TQC-0627-5
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
20
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Freq.: :
698-2700MHz
Gain: :
5dBi
VSWR :
≤ 1.7
Polarization :
Vertical
H Beamwidth :
360°
V Beamwidth :
60°
Connector Type :
N-K or Customized
Dimensions :
Φ 185*90mm
Input Impedance :
50 Ω
Maximum Power :
50 W
Weight :
0.6 kg
Description

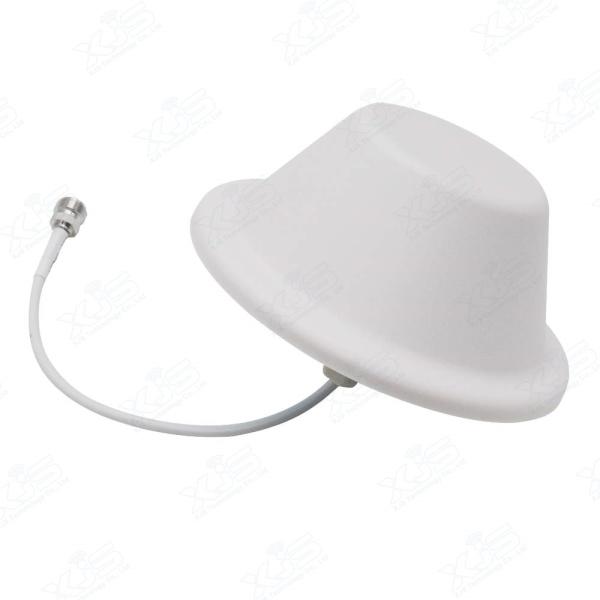

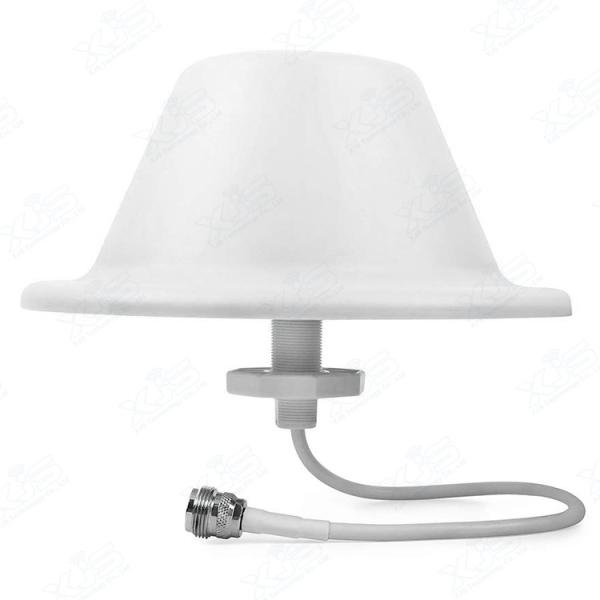

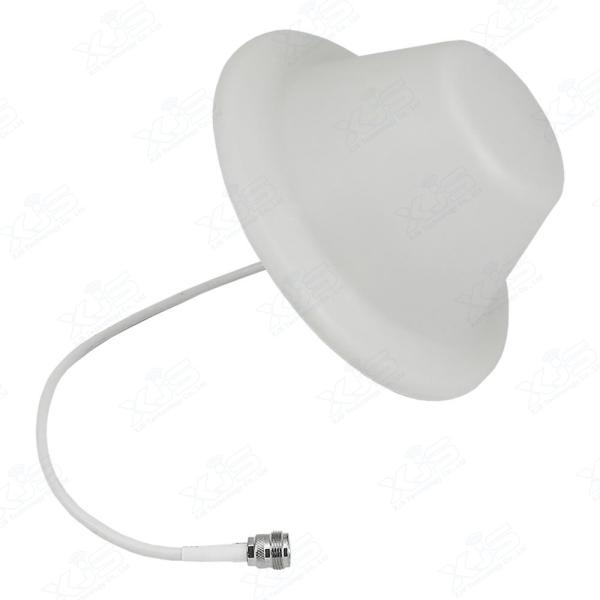

698-2700 MHz DAS Indoor 4G LTE 3G GSM Omni Directional Ceiling Dome 5dBi Antenna

This is high performance omni directional ceiling antenna specifically designed for indoor wireless networks such as DAS (Distributed Antenna Systems) which are used to distribute Cellular and WiFi signals throughout a building or area. The Multi-Band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of indoor wireless applications where wide coverage is desired.

Applications:
• Full Band (698 – 2700 MHz) Broadband
• 2G/3G/4G and WLAN systems
• Omni-directional antenna broadcasts signal in all directions
• 3 dBi Gain
• Mounts to ceiling
• Easy to install

Electrical Specifications

Frequency Range 698-960 1700-2700
Gain (dBi) 3 dBi 5 dBi
Horizontal Beamwidth 360°
Vertical Beamwidth 60°
VSWR <1.5
Polarization Vertical
Impedance 50Ω

Mechanical Specifications

Connector Customized
Dimensions Φ 185*90mm
Weight (Kg) 0.3 kg
Lightning Protection Dc Ground
