Specifications
Brand Name :
XJS
Model Number :
TDS-4865-21
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
2
Price :
$60~66/piece
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
2500 pcs per month
Delivery Time :
10~20 work days
Packaging Details :
carton packaging, 47*39*31cm/6pcs
Frequency :
4800-6500MHz
Gain :
21dBi
H Beamwidth :
45°
V Beamwidth :
8°
Polarization :
±45°
F/B Ratio :
≥45db
Dimensions :
410*142*60 mm
Max. Power :
50W
Lightning Protection :
Dc Ground
Description

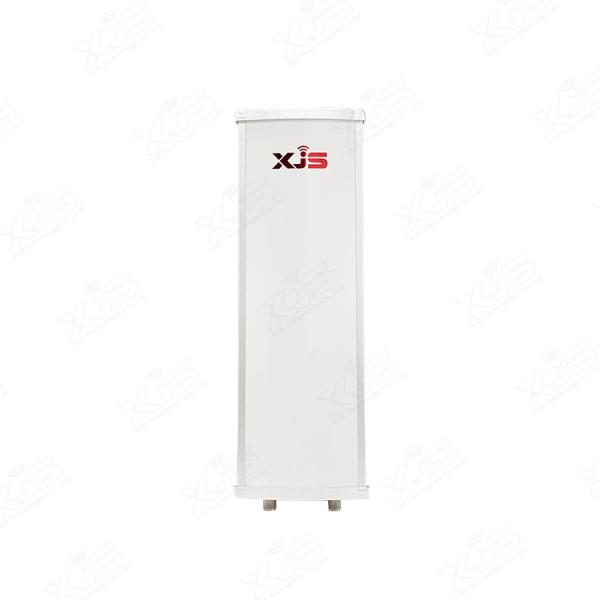

4.8-6.5GHz 21dBi 45 Degree WiFi WLAN 2×2 MIMO Sector Antenna

This a 4-Port 45 Degree Dual Slant Polarized +45°/-45° Sector Antenna that features a versatile radio mounting system for attaching Ubiquiti Networks RocketM5 or Rocket Prism 5AC, Mimosa C5c, Cambium ePMP™ 1000 or TP-Link WBS-510 directly to the antenna.

Features

· Expanded Coverage: 4800 MHz to 6500 MHz
· 2 ports, Suits for Radio like RocketM5, Mimosa C5c
· Cross Polarized, ±45° Polarization (Polarization Diversity)
· 45 Degree Beamwidth
· All-Weather Outdoor Operation
· Heavy Duty Tilt Mounting Brackets
· MIMO Applications
· 5 GHz 802.11a
· Wi-Fi Hotspots
· WISP Base Station
· WiMAX

Electrical Specifications

Frequency Range 4800-6500 MHz
Gain (dBi) 21 dBi
Horizontal Beamwidth 45°
Vertical Beamwidth 8°
VSWR <1.8
Polarization ±45°
F/B Ratio ≥45db
Impedance 50Ω

Mechanical Specifications

Connector Customized
Dimensions 412*142*60 mm
Weight (Kg) 3.2 kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

Radiation Patterns

4 Port WISP 21dBi 45 Degree 2x2 MIMO WiFi Antenna For Base Station

RF Antenna Patterns

4 Port WISP 21dBi 45 Degree 2x2 MIMO WiFi Antenna For Base Station

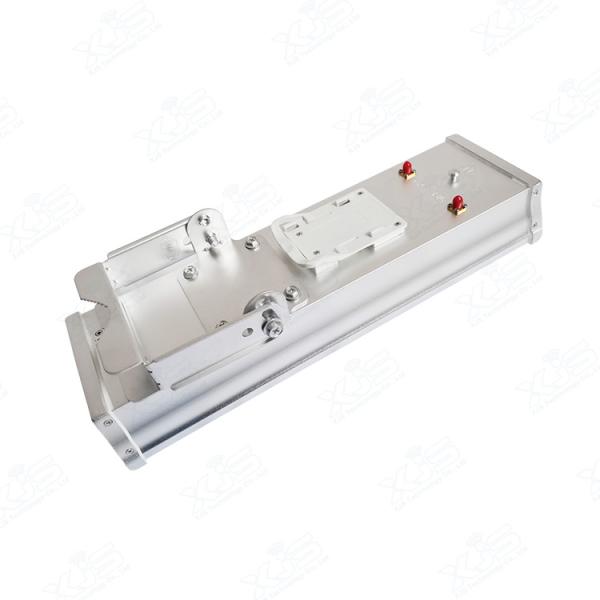

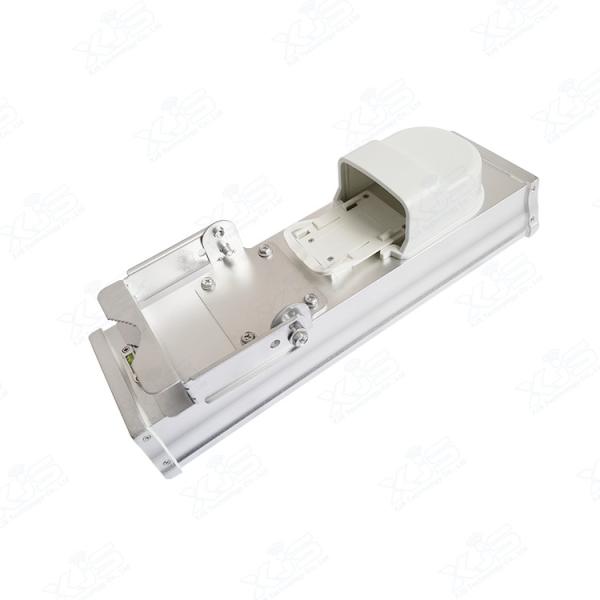

With radio mounting bracket


This antenna includes mounting bracket for attaching AP radio to the rear of the antenna, minimizing the required tower space. The kit also includes 2 low loss RP-SMA Male to RP-SMA Male cables for connecting the radio to the antenna.

4 Port WISP 21dBi 45 Degree 2x2 MIMO WiFi Antenna For Base Station
