Specifications
Brand Name :
XJS
Model Number :
TDD-4965-30HV
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
20
Price :
USD 59-65
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000+PCS+month
Delivery Time :
15-20 working days
Freq. Range :
4900-6400 MHz
Gain: :
30dBi
HPBWH(Deg.) :
5.5°
HPBWV(Deg.) :
5.5 °
Polarization :
H+V
F/B Ratio :
≥32dB
VSWR :
≤1.8
Impedance :
50Ω
Connector :
N-female
Dimensions :
Ф600mm
Description

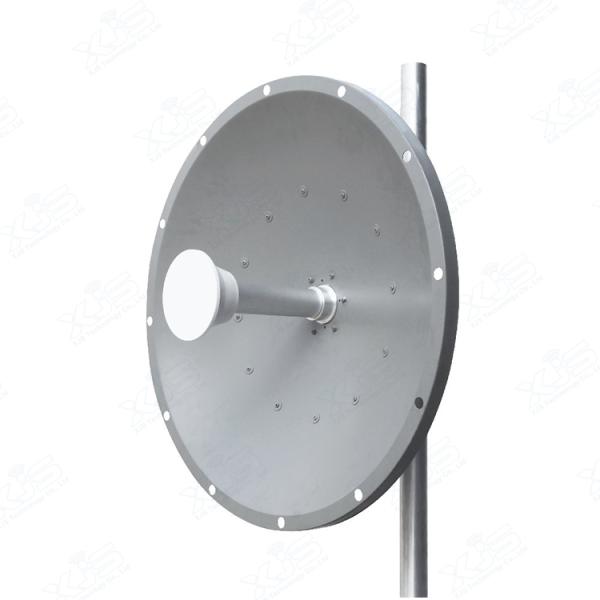

Long Range 4.9-6.4GHz 5ghz 30dBi WiFi Wlan Mimo Dish Antenna

TDD-4965-30HV is a ultra performance wideband dual polarized solid dish antenna with ultra electrical performance and mechanical stability, the parabolic dish antenna can be used in a wide variety of 4.9GHz and 6.4 GHz range (4.9/5.1/5.3/5.4/5.8/6.4GHz) wireless applications.

Long Distance Backhaul 5GHZ Antennas 4900MHz To 6500MHz

Features
  • (2) N-Female connectors
  • Dual Polarization (horizontal and vertical) or for X-Polarization (+45° and -45°)
  • Aluminum reflector dish with UV stable light gray polymer finish
  • Includes tilt and swivel mast mount kit
  • Optional radome cover kits available
Application
  • 4.9 GHz Public Safety Band
  • 5.1/5.3/5.4/5.8 GHz ISM and UNII Band Applications
  • Long Distance Backhaul and Point to Point Data Links
  • MIMO and 802.11 n Applications
  • WiMAX Applications

Electrical Specifications

Frequency Range 4900-6500 MHz
Gain (dBi) 30 dBi
Horizontal Beamwidth 5.5°
Vertical Beamwidth 5.5°
VSWR <1.8
Polarization Horizontal+Vertical
F/B Ratio ≥32db
Impedance 50Ω

Mechanical Specifications

Connector 2*N-female
Dimensions Φ600mm
Weight (Kg) 7kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

RF Antenna Patterns

Long Distance Backhaul 5GHZ Antennas 4900MHz To 6500MHz

Package Content

Long Distance Backhaul 5GHZ Antennas 4900MHz To 6500MHz

Long Distance Backhaul 5GHZ Antennas 4900MHz To 6500MHz

Long Distance Backhaul 5GHZ Antennas 4900MHz To 6500MHz
