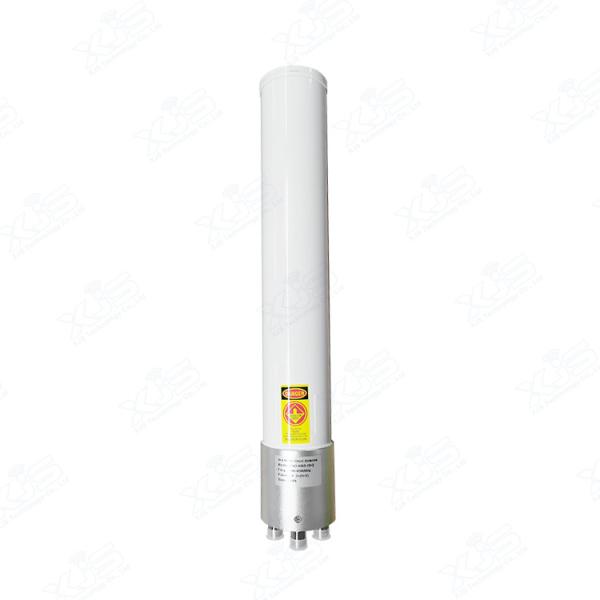

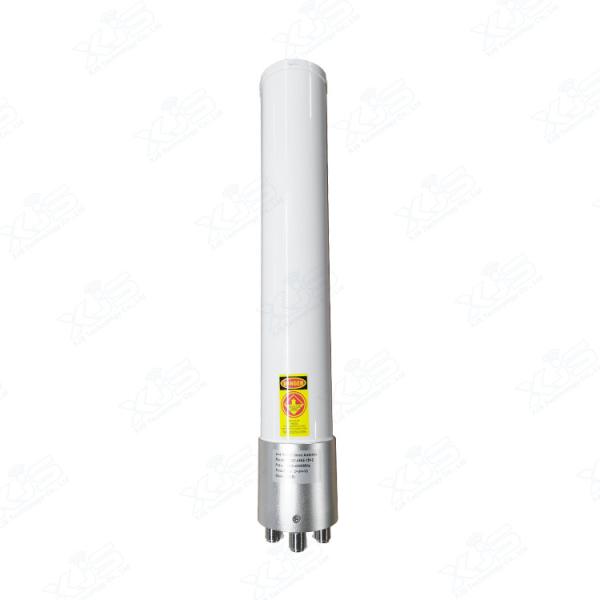

4x4 MIMO Omni 15DBi 5GHZ Antennas 75x500mm Outdoor Wireless LAN Antenna

Specifications

Brand Name :

XJS

Model Number :

TQO-4865-15

Certification :

ROHS CE

Place of Origin :

Guangdong, China

MOQ :

Payment Terms :

Western Union, L/C, T/T

Frequency :

4800-6500 MHz

Gain :

15 dBi

H Beamwidth :

360°

V Beamwidth :

7°

Polarization :

2×（H+V）

Dimensions :

Φ75x500mm

Max. Power :

50W

Lightning Protection :

Dc Ground

Description

5 GHz 15 dBi WiFi 4×4 MIMO Omni antenna

This Omni antenna’s unique design incorporates quad-180º overlapping antenna polarizations, boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. it operates over a wide frequency range, from 4.9 to 6.4 GHz without sacrificing performance, supporting licensed public safety bands and other expanded frequencies

Applications

5.1-5.8 GHz Outdoor Wireless LAN systems
Supports 1x2 and 2x2 MIMO AP/Routers
IEEE 802.11a/n applications
WiMax, WISP, WiFi, Communication

Features

MIMO - Multiple-Input and Multiple-Output
UV-resistant radome for all-weather operation
Includes mast mounting hardware

Electrical Specifications

Frequency Range	4800-6500 MHz
Gain (dBi)	15 dBi
Horizontal Beamwidth	360°
Vertical Beamwidth	7°
VSWR	<1.8
Polarization	Horizontal and Vertical
Impedance	50Ω

Mechanical Specifications

Connector	Customized
Dimensions	Φ75*500mm
Weight (Kg)	1.8 kg
Lightning Protection	Dc Ground
Rated Wind Speed	126/ms
Mounting Type	Pole Mount
Suitable pole diameter	Ф30-80mm

RF Antenna Patterns

4x4 MIMO Omni 15DBi 5GHZ Antennas 75x500mm Outdoor Wireless LAN Antenna

4-port OMNI antenna, 4800-6500 MHz, 15 dBi, Horizontal/Vertical Polarization

• Two vertically stacked OMNI arrays in single radome enclosure with one mounting point

• Supports one 4x4 MIMO or two 2x2 MIMO radios

4x4 MIMO Omni 15DBi 5GHZ Antennas 75x500mm Outdoor Wireless LAN Antenna

Packing

4x4 MIMO Omni 15DBi 5GHZ Antennas 75x500mm Outdoor Wireless LAN Antenna
