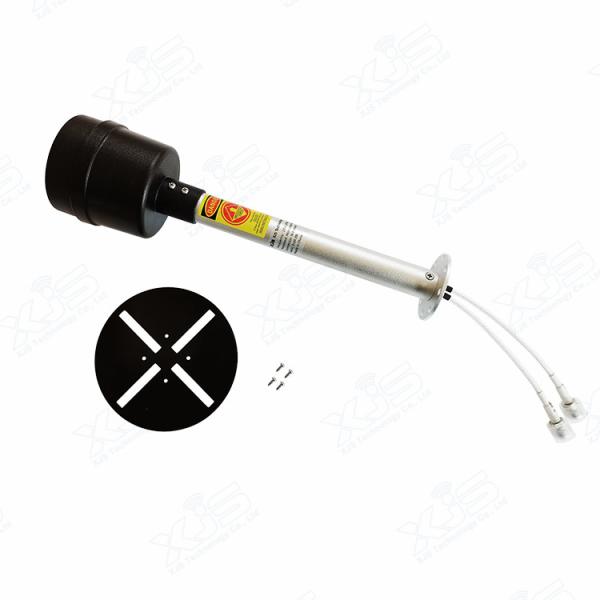

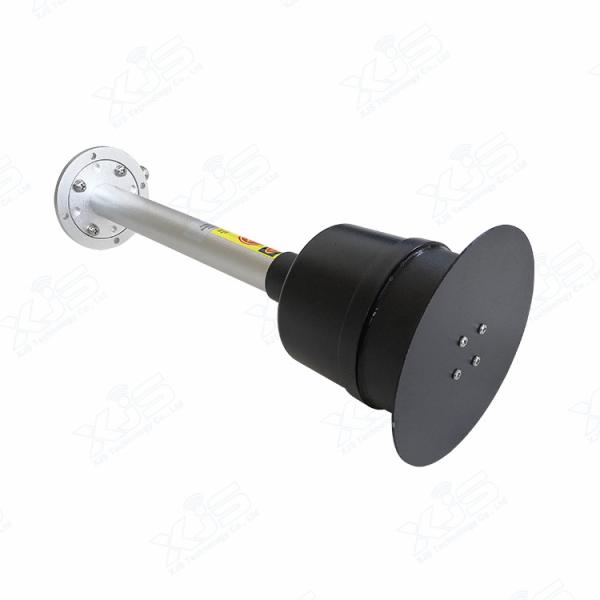

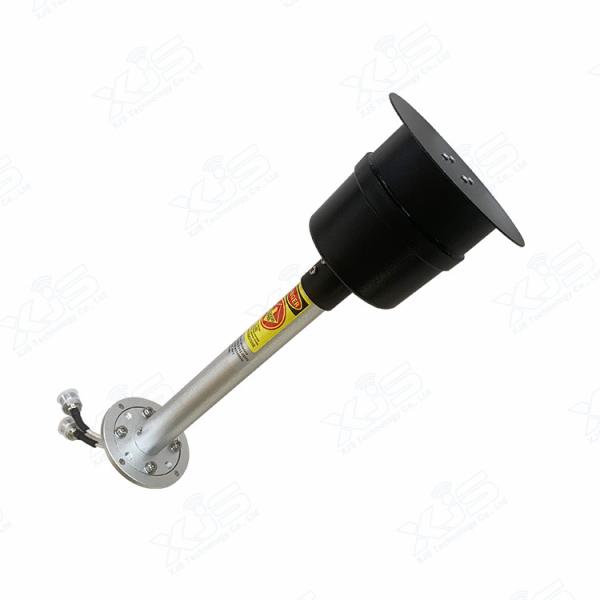

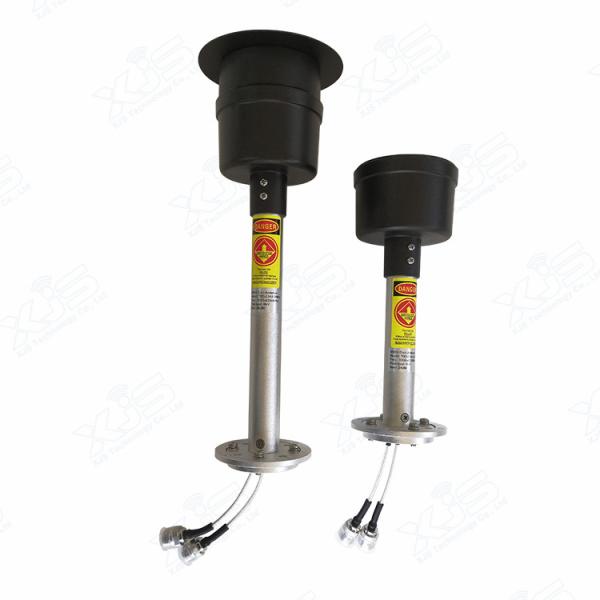

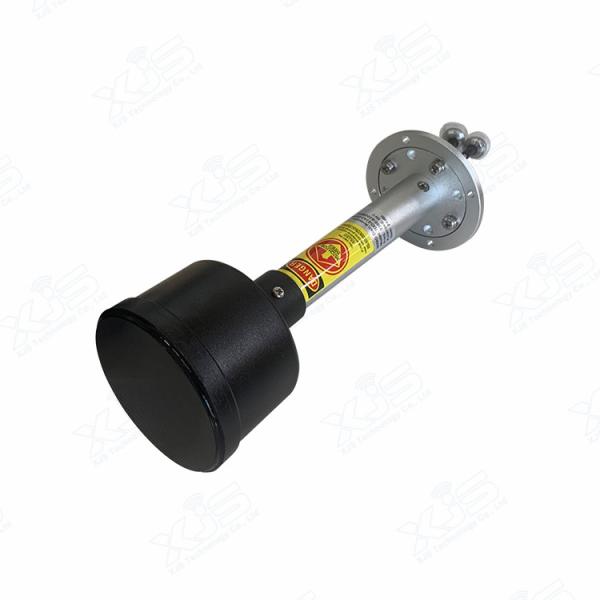

ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
Specifications
Brand Name :
XJS
Model Number :
TDD-3242-30
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
20
Price :
USD 79-86
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000+PCS+month
Delivery Time :
5-10 working days
Freq. Range :
3200-4200 MHz
Gain: :
30 dBi
HPBWH（Deg.） :
4°
HPBWV（Deg.） :
5°
Polarization :
H+V
F/B Ratio :
≥32 dB
VSWR :
≤1.8
Impedance :
50 Ω
Connector :
N-Female
Description

3.5GHz 30dBi 5G Communication Mimo Dish Antenna Feed Horn Feeder

3.5 GHz Dish Antenna Feeder features excellent front to back ratio. It is ideally suited for directional applications, backhaul applications and point to point systems. Typical applications include IEEE 802.16e, WiMAX and Mobile WiMAX applications.

Features
  • Superior performance
  • All weather operation
  • Easy to assemble
Application
  • 3.5 GHz Wireless access system
  • Point to Point (PtP) and Multi-point to Point (MPtP) Systems
  • Wireless Bridges
  • Long-range Directional Applications

Electrical Specifications

Frequency Range 3200-4200 MHz
Gain (dBi) 30 dBi
Horizontal Beamwidth 4°
Vertical Beamwidth 5°
VSWR <1.8
Polarization Horizontal+Vertical
F/B Ratio ≥32 dB
Impedance 50Ω

Mechanical Specifications

Connector 2*N-female
Dimensions of Dish Φ900mm
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

Radiation Patterns

ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn

ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn

ROHS CE All Weather Operation 3.5GHZ Antennas Feeder 30dBi Antenna Feed Horn
