Specifications
Brand Name :
XJS
Model Number :
TDS-2425-16
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
2
Payment Terms :
Western Union, L/C, T/T
Frequency :
2400-2500MHz
Gain :
16dBi
H Beamwidth :
120°
V Beamwidth :
7.4°
Polarization :
Vertical
Dimensions :
958*174*79 mm
Max. Power :
50W
Lightning Protection :
Dc Ground
Description

2400-2500MHz 16dBi 120 Degree WiFi WLAN MIMO Sector Antenna

The TDP-2425-16 Sector Panel WiFi Antenna combines high gain with a wide 120° beam-width. It is a professional quality “cell site” antenna designed primarily for service providers in the 2.4GHz ISM band. Applications include IEEE 802.11b, 802.11g and 802.11n wireless LAN systems.

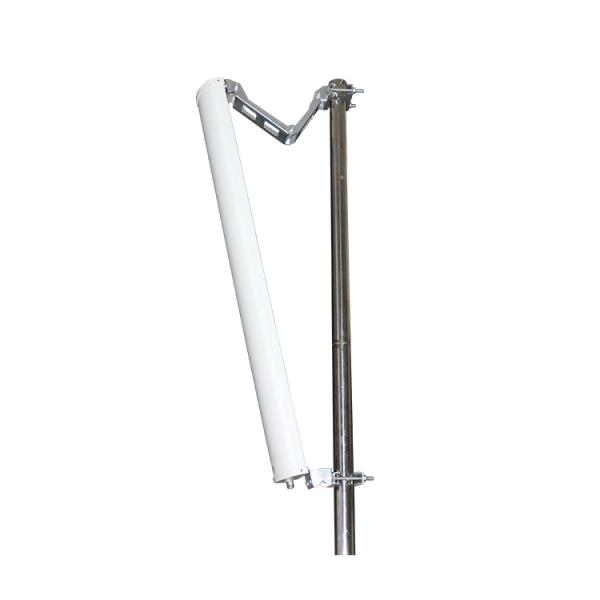

This antenna features a heavy-duty plastic radome for all-weather operation. The mounting system adjusts from 0 to 20 degrees down-tilt.

This WiFi antenna is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 120 degrees.

Features

  • 120° beam-width
  • Includes Mast Mounting Hardware
  • Integral N-Female Connector
  • 20° Down-Tilt Mounting Bracket
  • All weather operation
Applications
  • Bluetooth® & Public Wireless Hotspot
  • IEEE 802.11b, 802.11g and 802.11n Wireless LAN Applications
  • 2.4 GHz ISM Band
  • WiFi & Wireless Video Systems
  • Wireless Internet Provider "cell" sites

Electrical Specifications

Frequency Range 2400-2500 MHz
Gain (dBi) 16 dBi
Horizontal Beamwidth 120°
Vertical Beamwidth 7.4°
VSWR <1.5
Polarization V
Impedance 50Ω

Mechanical Specifications

Connector Customized
Dimensions 958*174*79 mm
Weight (Kg) 5.2 kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

RF Antenna Patterns

2400-2500MHz 16dBi 2.4GHZ WIFI Antennas 120 Degree Sector Antenna For Bluetooth

2400-2500MHz 16dBi 2.4GHZ WIFI Antennas 120 Degree Sector Antenna For Bluetooth
