Specifications
Brand Name :
XJS
Model Number :
TDD-2327-26
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
20
Price :
USD 79-86
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000+PCS+month
Delivery Time :
15-20 working days
Freq. Range :
2300-2700 MHz
Gain: :
26dBi
HPBWH（Deg.） :
8°
HPBWV（Deg.） :
8°
Polarization :
H+V
F/B Ratio :
≥30dB
VSWR :
≤1.8
Impedance :
50Ω
Connector :
N-female
Dimensions :
Ф900mm
Description

2.4GHz 24dBi WiFi Wlan Mimo Dish Antenna

It is a high performance 25 dBi dual polarized parabolic dish antenna ideal for long range directional applications such as point to point systems, point to multi-point and wireless bridges. It is designed for use in the 2.4GHz ISM band as well as IEEE 802.11b/g/n wireless LAN systems.

Features
  • * 24dBi directional operation, ideal for extraordinary long-distance outdoor directional connection
    * Weather proof design, suitable for all weather conditions
    * N Female connector, applicable in most outdoor solutions
    * Provides easy installation mounting kits
Application
  • * 2.4 GHz ISM band
    * IEEE 802.11b/g/n Wireless LAN applications
    * WiFi systems and long range directional applications
    * Point to Point systems and Point to Multi-Point systems
    * Wireless bridges, backhaul applications and wireless video systems

Electrical Specifications

Frequency Range 2300-2700 MHz
Gain (dBi) 26 dBi
Horizontal Beamwidth 8°
Vertical Beamwidth 8°
VSWR <1.8
Polarization Horizontal+Vertical
F/B Ratio ≥30db
Impedance 50Ω

Mechanical Specifications

Connector 2*N-female
Dimensions Φ900mm
Weight (Kg) 13.5kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

Parabolic 2.4ghz 24dbi 2×2 Mimo Dish Antenna For Wireless Video Systems

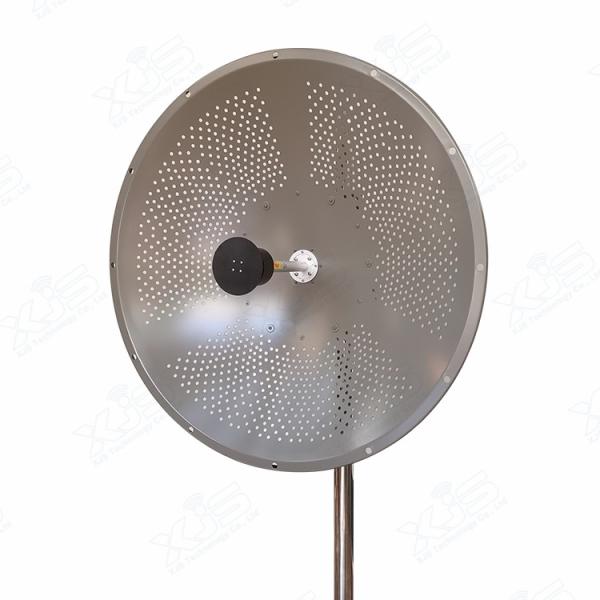

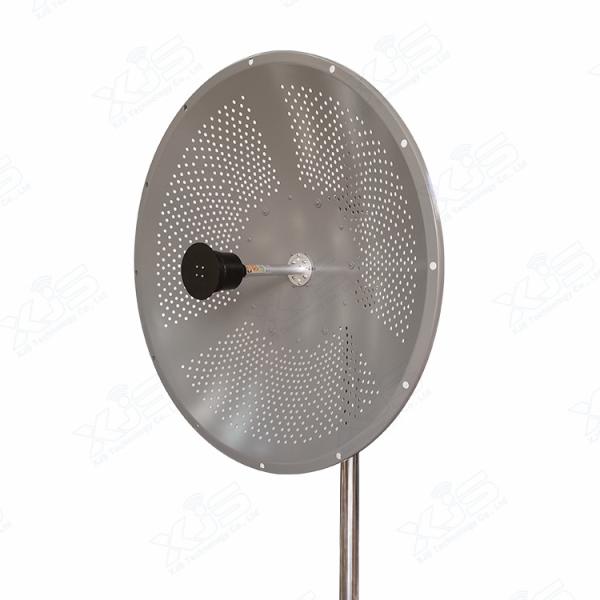

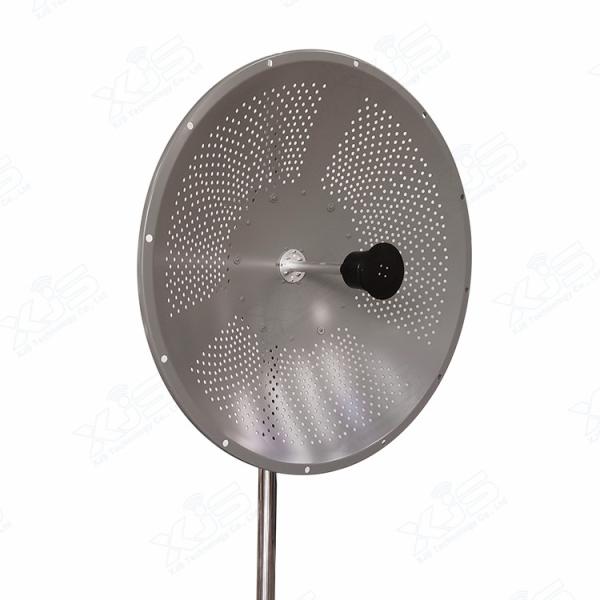

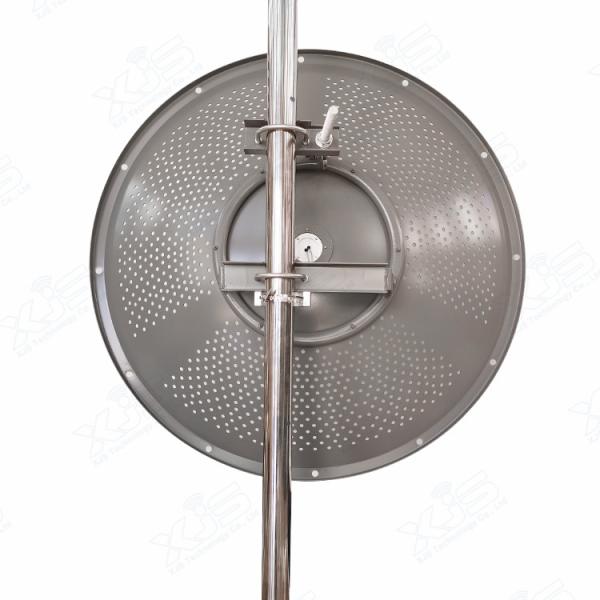

The reflector dish is constructed from high quality aluminum which gives it superior strength. The dish is coated in a light gray UV-inhibited polymer for durability and aesthetics. Perforated holes in the dish helps minimize wind loading. Supplied with the antenna is a tilt and swivel mast mount kit. This allows installation at various degrees of incline for easy alignment.

Parabolic 2.4ghz 24dbi 2×2 Mimo Dish Antenna For Wireless Video Systems
