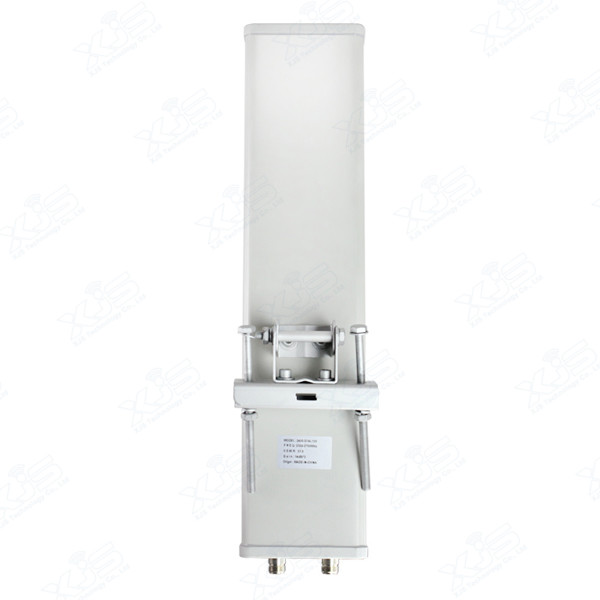

Horizontal Vertical Polarization 2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna
Horizontal Vertical Polarization 2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna
Horizontal Vertical Polarization 2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna
Horizontal Vertical Polarization 2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna
Horizontal Vertical Polarization 2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna
Horizontal Vertical Polarization 2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna
Horizontal Vertical Polarization 2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna
Horizontal Vertical Polarization 2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna
Specifications
Brand Name :
XJS
Model Number :
TDS-2425-14
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
2
Payment Terms :
Western Union, L/C, T/T
Frequency :
2400-2500MHz
Gain :
14dBi
H Beamwidth :
90°
V Beamwidth :
14°
Polarization :
Horizontal+Vertical
Dimensions :
510*128*58 mm
Max. Power :
50W
Lightning Protection :
Dc Ground
Description

2.4GHZ WIFI Antennas 14dBi 90 Degree Sector Antenna

The TDS-2425-14 Sector Panel WiFi Antenna combines high gain with a wide 90° beam-width. It is a professional quality “cell site” antenna designed primarily for service providers in the 2.4GHz ISM band. Applications include IEEE 802.11b, 802.11g and 802.11n wireless LAN systems.

This antenna features a heavy-duty plastic radome for all-weather operation. The mounting system adjusts from 0 to 20 degrees down-tilt.

This WiFi antenna is an ideal choice for Wireless Internet Provider "cell" sites since the cell size can be easily determined by adjusting the down-tilt angle. Horizontal coverage is a full 90 degrees.

Features

  • 90° beam-width
  • Includes Mast Mounting Hardware
  • Integral N-Female Connector
  • 20° Down-Tilt Mounting Bracket
  • All weather operation
Applications
  • Bluetooth® & Public Wireless Hotspot
  • IEEE 802.11b, 802.11g and 802.11n Wireless LAN Applications
  • 2.4 GHz ISM Band
  • WiFi & Wireless Video Systems
  • Wireless Internet Provider "cell" sites

Electrical Specifications

Frequency Range 2400-2500 MHz
Gain (dBi) 14 dBi
Horizontal Beamwidth 90°
Vertical Beamwidth 14°
VSWR <1.5
Polarization H+V
Impedance 50Ω

Mechanical Specifications

Connector Customized
Dimensions 510*128*58 mm
Weight (Kg) 2.0 kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm
