Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna
Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna
Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna
Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna
Specifications
Brand Name :
XJS
Model Number :
TDW-0627-7-SW
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
20
Payment Terms :
L/C, T/T, Western Union
Freq.: :
698-2700MHz
Gain: :
7dBi
VSWR :
≤ 1.7
Polarization :
Vertical
H Beamwidth :
70° / 60°
V Beamwidth :
55° / 45°
Connector Type :
N-K or Customized
Dimensions :
210 x 180 x 43 mm
Input Impedance :
50 Ω
Maximum Power :
50 W
Weight :
0.6 kg
Description

4G Lte 698-2700MHz 9dBi Wall Outdoor Panel Antenna For Communication

This flat panel high gain directional antenna is ideal for applications where ceiling access is not possible, or expanded coverage is needed.

Features:

  • Directional antenna
  • Mounting hardware included
  • Provides a cost-effective solution for high volume deployments and multiple in-building systems
  • Unobtrusive - low profile blends easily with internal environment for unobtrusive appearance
  • Convenient and simple to install
  • Supports 2G, 3G, Next-G and 4G LTE

Electrical Specifications

Frequency Range 698-960 1700-2700
Gain (dBi) 7 dBi 9 dBi
Horizontal Beamwidth 75° 60°
Vertical Beamwidth 55° 45°
VSWR <1.7
Polarization Vertical
Impedance 50Ω

Mechanical Specifications

Connector Customized
Dimensions 210*180*43mm
Weight (Kg) 0.7kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna

Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna

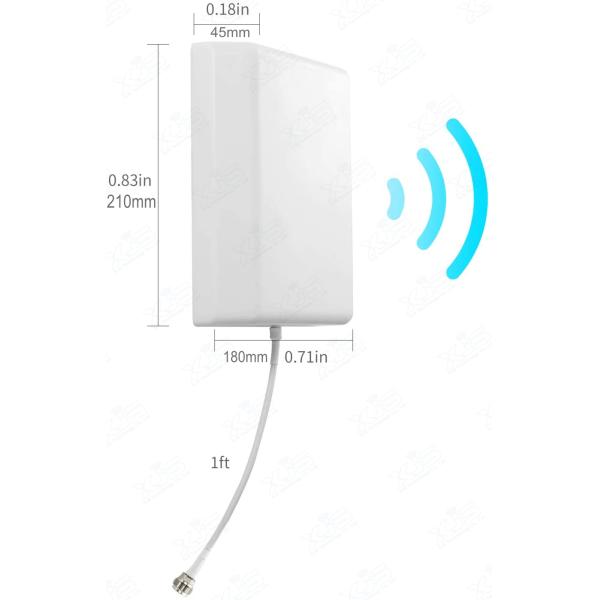

It is a roughly square box of 210mm x 180mm and 45mm thick. It is mainly made from aluminium with a durable white ABS plastic cover which is UV resistant.

Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna

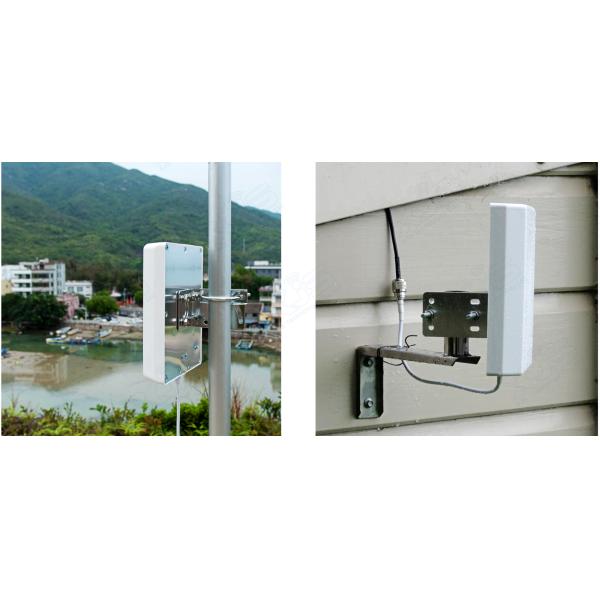

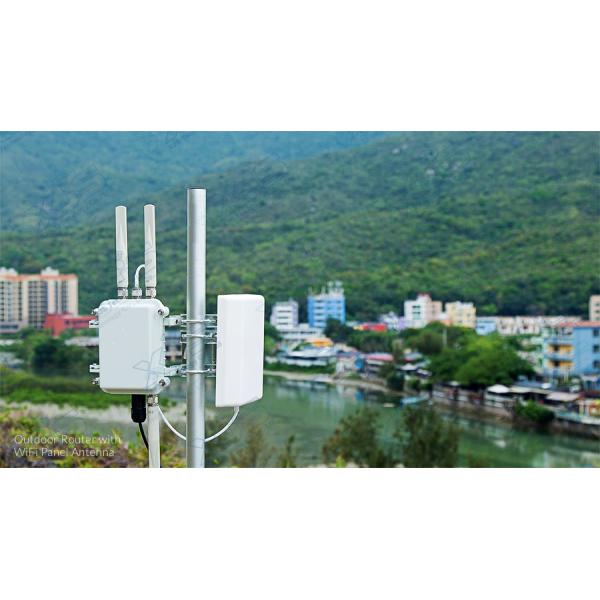

It can be located outdoors as it is not affected by rain. Included in the package is an aluminium bracket for mounting the antenna with the pole

Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna

Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna

With an ultra wide receiving angle this antenna is ideal for city and suburban areas where there are often a series of cell towers in a small area, and also areas affected by hills and valleys. This type of antenna is often favoured because of it's no-fuss mounting, compact size, and very reasonable gain.

Outdoor UV Resistant Flat Panel 4G LTE Antennas 9dBi High Gain Directional Antenna
