Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
Specifications
Brand Name :
XJS
Model Number :
TDD-3242-24
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
20
Price :
USD 59-65
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50000+PCS+month
Delivery Time :
15-20 working days
Freq. Range :
3200-4200 MHz
Gain: :
24dBi
HPBWH（Deg.） :
7°
HPBWV（Deg.） :
7°
Polarization :
H+V
F/B Ratio :
≥28dB
VSWR :
≤1.8
Impedance :
50Ω
Connector :
N-female
Dimensions :
Ф600mm
Description

Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna

Wide Band Operation,Vertically or Horizontally Polarized,Extremely Rugged for Extreme Environment.
Antenna is supplied together with the bracket, which is possible to set easily in both directions.
The Parabolic Dish Antenna systems offered by Wireless are constructed of an aluminum alloy dish with powder coat paint finish for excellent mechanical

3.5 GHz Dish Antenna features excellent front to back ratio. It is ideally suited for directional applications, backhaul applications and point to point systems. Typical applications include IEEE 802.16e, WiMAX and Mobile WiMAX applications.

Features
  • Superior performance
  • All weather operation
  • UV stable powder coat finish
  • Die-cast aluminum construction
  • Easy to assemble
Application
  • 3.5 GHz Wireless access system
  • Point to Point (PtP) and Multi-point to Point (MPtP) Systems
  • Wireless Bridges
  • Long-range Directional Applications

Electrical Specifications

Frequency Range 3200-4200 MHz
Gain (dBi) 23 dBi
Horizontal Beamwidth 7°
Vertical Beamwidth 7°
VSWR <1.8
Polarization Horizontal+Vertical
F/B Ratio ≥28db
Impedance 50Ω

Mechanical Specifications

Connector 2*N-female
Dimensions Φ600mm
Weight (Kg) 5kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm

RF Antenna Patterns

Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm

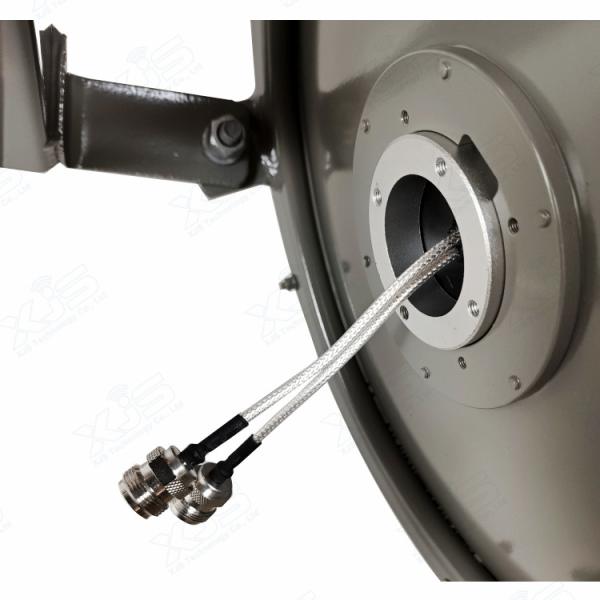

Products Details
Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm

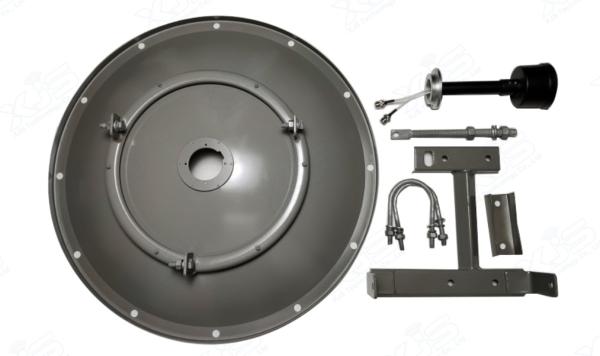

Package Content

Long Range 3.5GHz 23dBi WiFi Wlan Mimo Dish Antenna Dia 600mm
