5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi
5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi
5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi
5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi
5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi
5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi
Specifications
Brand Name :
XJS
Model Number :
TQO-5758-12
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
2
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30000 pcs per month
Delivery Time :
5~10 work days
Packaging Details :
carton packaging
Frequency :
5725-5850MHz
Gain :
12 dBi
H Beamwidth :
360°
V Beamwidth :
6°
Polarization :
Vertical
Dimensions :
Φ20×600mm
Max. Power :
50W
Lightning Protection :
Dc Ground
Description

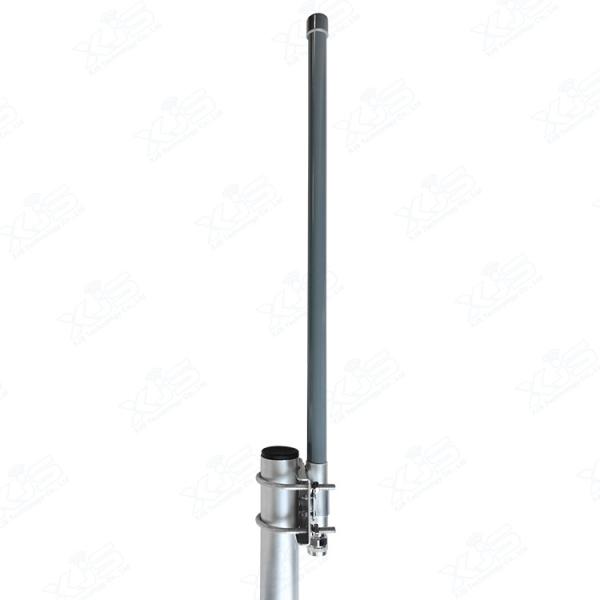

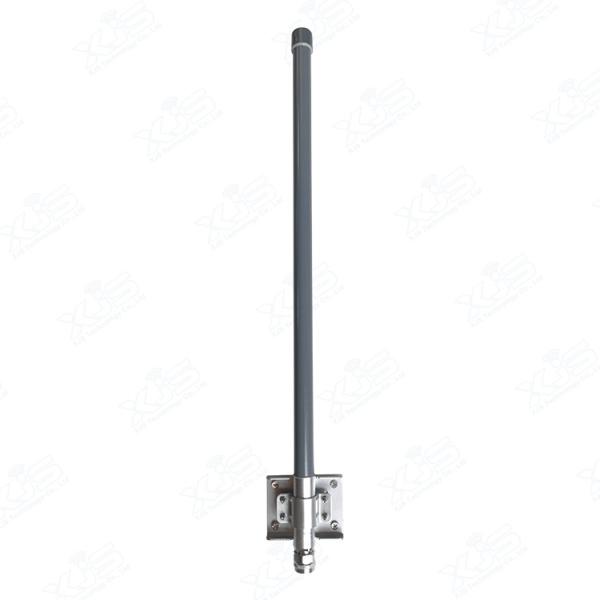

5.8 GHz 12dBi Omni Fiberglass Antenna

The XJS antenna TQO-5758-12 is a high performance omnidirectional antenna designed for the 5.8 GHz band. It is ideal for IEEE 802.11a wireless LAN applications in the 5.8GHz band and is well suited for multipoint applications where high gain is desired.

Features

  • All weather operation
  • Compact, lightweight design
  • Durable UV-stable fiberglass radome

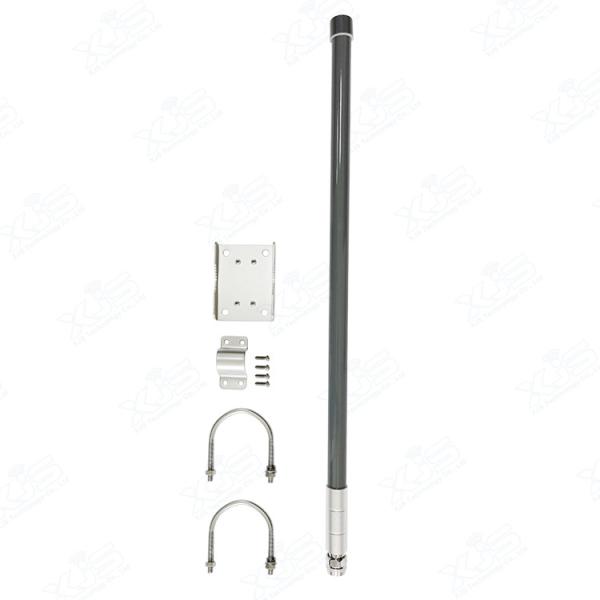

  • Integral N-Female connector and mast mounting kit
  • Superior performance

Application

  • 5.8 GHz Band Applications
  • IEEE 802.11a Wireless LAN
  • Multipoint applications

Electrical Specifications

Frequency Range 5725-5850 MHz
Gain (dBi) 12 dBi
Horizontal Beamwidth 360°
Vertical Beamwidth 6°
VSWR <1.5
Polarization Vertical
Impedance 50Ω

Mechanical Specifications

Connector N-Female or Customized
Dimensions Φ20x600mm
Weight (Kg) 0.25
Lightning Protection Dc Ground
Rated Wind Speed 126/ms
Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

RF Antenna Patterns

5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi

5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi

5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi

5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi

5.8GHz 12dBi Omni Lora Fiberglass Antenna For WiFi
