4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
Specifications
Brand Name :
XJS
Model Number :
TDS-4865-18
Certification :
ROHS CE
Place of Origin :
Guangdong, China
MOQ :
2
Payment Terms :
Western Union, L/C, T/T
Frequency :
4800-6500MHz
Gain :
18dBi
H Beamwidth :
120°
V Beamwidth :
4°
Polarization :
±45°
F/B Ratio :
≥26db
Dimensions :
700*157*30 mm
Max. Power :
50W
Lightning Protection :
Dc Ground
Description

4.8-6.5GHz 18dBi 120 Degree WiFi WLAN MIMO Sector Antenna for communication

This 120° mimo sector antenna provides high gain with a wide 120° beam-width making them ideal professional quality antennas designed primarily for service providers in the 4.8-6.5GHz band

This antenna makes an ideal alternative to the Ubiquiti AirMax Sector AM-5G16-120 antenna.

Features

  • Dual Polarity feed system in single enclosure
  • MIMO - Multiple-Input and Multiple-Output
  • Two integral N-Female connectors
  • UV-resistant radome for all-weather operation

Application

  • 4.9/5.1/5.3/5.4/5.8/6.4/6.5 GHz Wireless LAN systems
  • MIMO PtMP 1x2, 2x2 base station
  • Supports IEEE 802.11a/n applications
  • WiMAX, WISP, WiFi, Mobile Communication, Cell-site

Electrical Specifications

Frequency Range 4800-6500 MHz
Gain (dBi) 18 dBi
Horizontal Beamwidth 120°
Vertical Beamwidth 4°
VSWR <1.8
Polarization ±45°
F/B Ratio ≥26db
Impedance 50Ω

Mechanical Specifications

Connector Customized
Dimensions 700*157*30 mm
Weight (Kg) 3.8 kg
Lightning Protection Dc Ground
Rated Wind Speed 126/ms

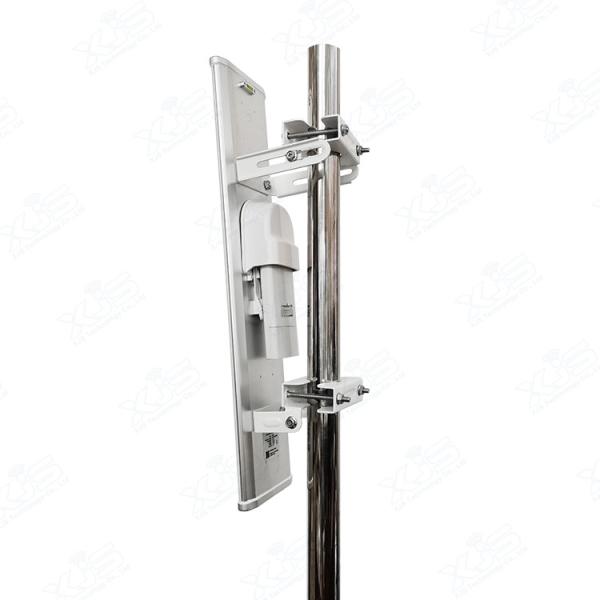

Mounting Type Pole Mount
Suitable pole diameter Ф30-80mm

RF Antenna Patterns

4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX

4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX

4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX

4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX

4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX

This antenna offers high-gain, 120-degree wireless beam performance for broad coverage. Combine with other Sector Antennas to create complete, 360-degree area coverage that can be applied to any variety of point-to-multipoint scenarios.

4800-6500MHz 18dBi 120 Degree Sector Antenna For WiMAX
