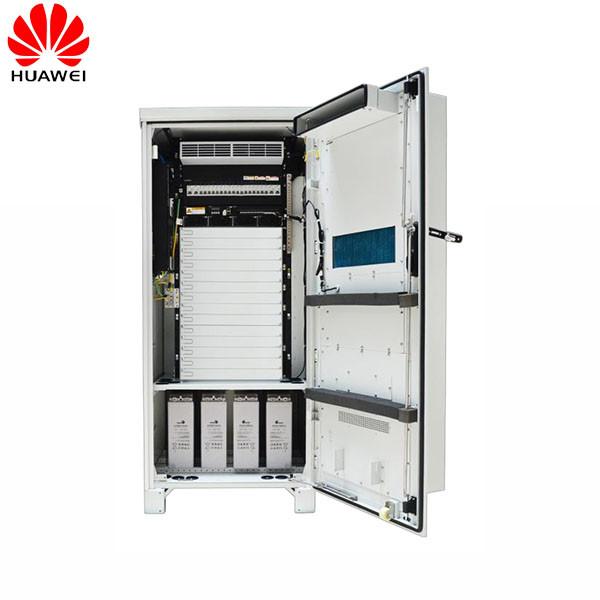

AC / DC Outdoor Huawei Power System Cabinet TP48200A-HD15B1 Wireless Site
AC / DC Outdoor Huawei Power System Cabinet TP48200A-HD15B1 Wireless Site
Specifications
Brand Name :
HUAWEI
Model Number :
TP48200A-HD15B1
Certification :
CE, RoHS
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets/month
Delivery Time :
within 10 days of payment
Packaging Details :
carton box
Battery space :
1×180Ah
Installation :
Ground installation
Weight :
≤100kg (without rectifier)
Dimension :
700(W)×700(D)×1600mm(H)
Cabling mode :
Bottom inlet and bottom outlet
Cooling :
Heat exchange+ direct ventilation
Description

Huawei AC/DC Outdoor Power System Cabinet TP48200A-HD15B1 Wireless Site

Features

* High corrosion-proofing protection: Aluminous cabinet with sandwich structure
* High waterproof and dustproof protection:IP55
* Strong anti-theft structure: door embedded without any expose bolt
* High power efficiency of rectifier >96% with patent technology, saving energy
* Cooling system equipped in door, easier to maintain
* E-label function easy for assets management and maintenance
* Intelligent battery dormancy prolonging battery lifespan
* Battery reverse polarity protection

Scenarios

Outdoor wireless site
Outdoor enterprise communication network

Specifications

Product Type TP48200A-HD15B1
System Dimension 700mm(W)×700mm(D)×1600mm(H)
Weight ≤100kg (without rectifier modules)
Cooling mode Heat exchange (850W)+ direct ventilation
Installation mode Ground installation
Cabling mode Bottom inlet and bottom outlet
Maintenance mode Front
Noise level Comply with ETS300 753 4.1E standard
Protection level Equipment cabinet: IP55; Battery cabinet: IP45
Battery space 1×180Ah
User space 15U
MTBF ≥200,000 hours
ACDistribution Input mode Three phase (single phase compatible)
Input voltage 85VAC～300VAC, rated value: 220VAC
Input frequency 45~66Hz, rated value: 50Hz/60Hz
Input capacity 1×63A/3P/MCB
SPD 30kA/60kA, 8/20μs
Maintenance socket 1x10A RCD(maintenance socket, optional)
AC output 2x16A MCB
DCDistribution Output voltage 42~58VDC, rated value: 53.5VDC
Maximum capacity 12kW(4×3000W)
Battery branch MCB: 1×125A/2P
LLVD branch 2x80A MCB, 9x32A MCB
BLVD branch 1x63A MCB, 3x32A MCB, 4x16A MCB
SPD 10kA,/20kA, 8/20μs
Rectifier Input voltage 85VAC～300VAC, rated value: 220VAC
Rated power 3000W(175VAC～300VAC)
Working temperature -40℃~+75℃
Dimensions 105mm(W)× 281mm(D) × 40.8mm(H)
Weight <2kg
Power factor ≥0.99
Power efficiency >96%
THD ≤5%
Controller Signal input 3 AI(battery temp., ambient temp., ambient humidity) 9 DI(water, smoke, gate, 6 common DI)
Alarm output 8 dry contact
Communication port RS232, RS485, FE
Storage capacity Up to 1000 historical records and alarm
Display mode LCD
Environment Operating temperature -40℃~+45℃+solar radiation
Storage temperature -40%~+70%
Operating humidity 5%~95%(non-condensing)
Altitude 0~4000m
